Characteristics

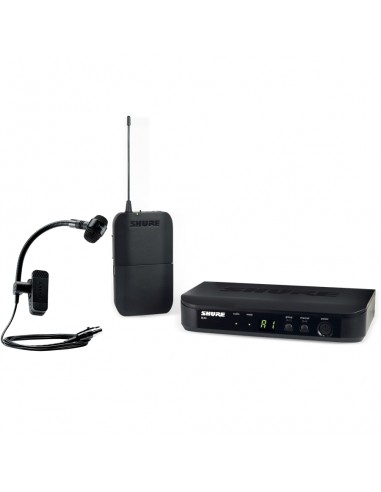

Complete wireless system for brass, woodwind, accordions and percussion consisting of:
n. 1 BLX4E Receiver
n. 1 BLX1 bodypack transmitter
n. 1 PGA98H-TQG Cardioid Condenser Microphone with Clip.
M17 wireless frequency range: 662 to 686 MHz
Optimized for wind and brass performance and recording, the PGA98H is Shure most affordable wireless gooseneck instrument microphone with high audio quality.
BLX offers simple setup and an intuitive interface for reliable performance.
Up to 12 compatible channels per group. Plus, group and channel scanning makes setup easy.
CHARACTERISTICS
BLX4R RECEIVER
Output impedance:
- XLR connector: 200 Ω
- 6.35 mm (1/4") jack connector: 50 Ω
Audio output level, ref. to a deviation of ±33 kHz modulated by a 1 kHz sine tone:
- XLR connector output: –20.5 dBV (into a 100 kΩ load)
- 6.35 mm (1/4") jack output: –13 dBV (into a 100 kΩ load)
RF Sensitivity: -105 dBm at a SINAD of 12 dB, typical
Rejection ratio at image frequency: >50 dB, typical
Dimensions: 45 x 198 x 163 mm, H x W x D
Weight, without antennas: 998 g
Frame: Molded ABS, Steel
Power requirements: 12–15 V DC at 260 mA, from an external power supply (with stylus positive)
BODYPACK BLX1 TRANSMITTER
Input audio level:
- gain at maximum: -16 dBV max
- minimum gain (0 dB): +10 dBV max
Gain adjustment range: 26 dB
Input impedance: 1MΩ
RF transmit power: 10mW, typical (varies by geographic area)
Structure: Molded ABS
Power requirements: 2 x LR6 (AA) batteries, 1.5V, alkaline
Battery life: Up to 14 hours (alkaline)
Dimensions: 110 x 64 x 21 mm, H x W x D
Weight: 75g, without batteries
PGA98H MICROPHONES
Transducer Type: Condenser
Polar Feature:
Frequency Response: 60Hz - 20kHz
Sensitivity (1 kHz): -52 dBV/Pa / 2.51 mV/Pa
Weight: 210 g
