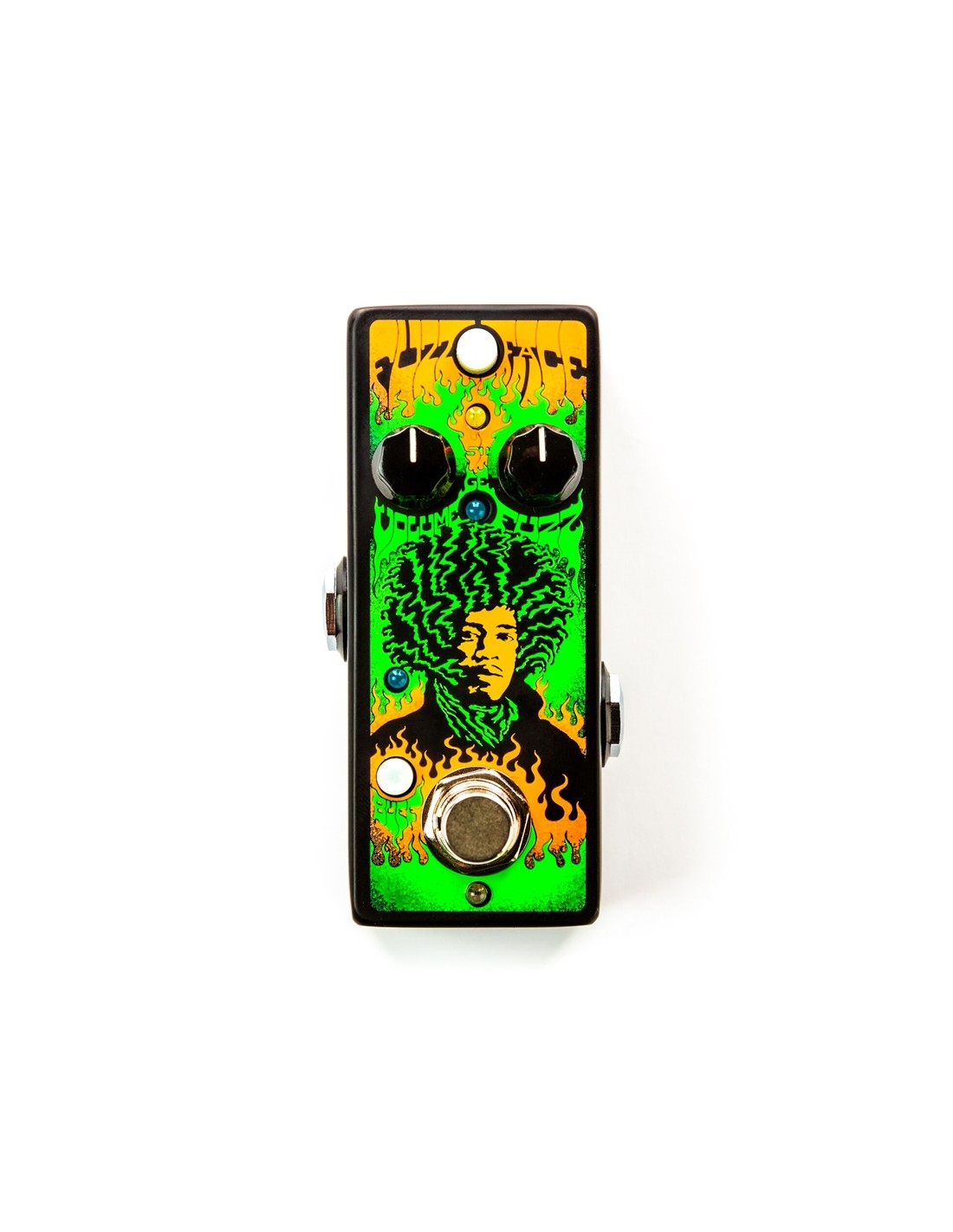

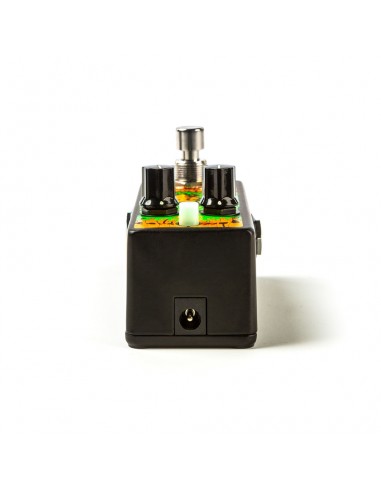

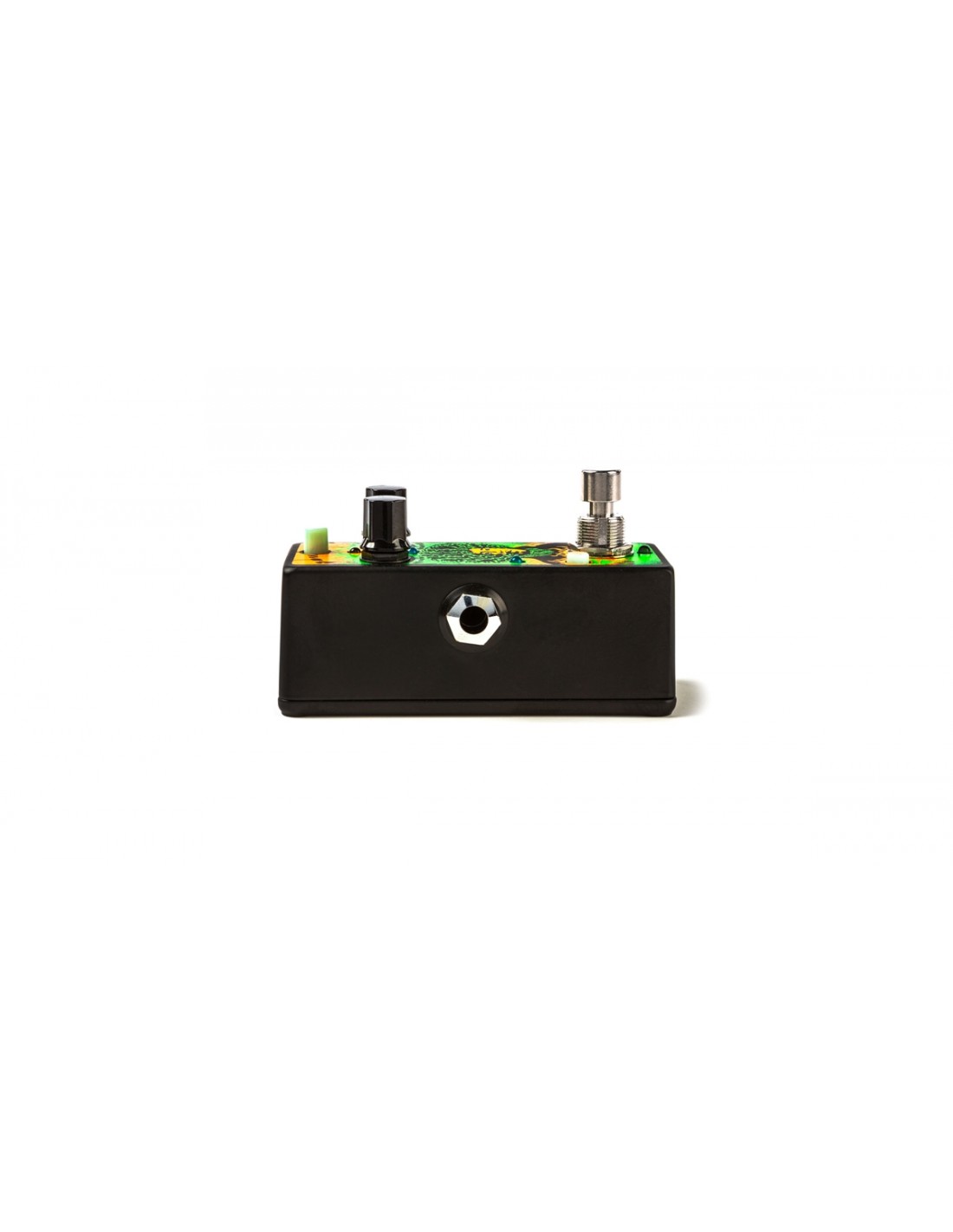

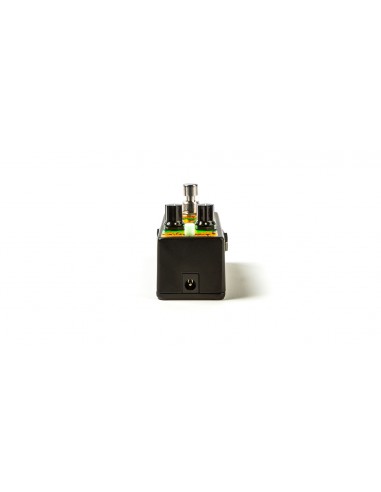

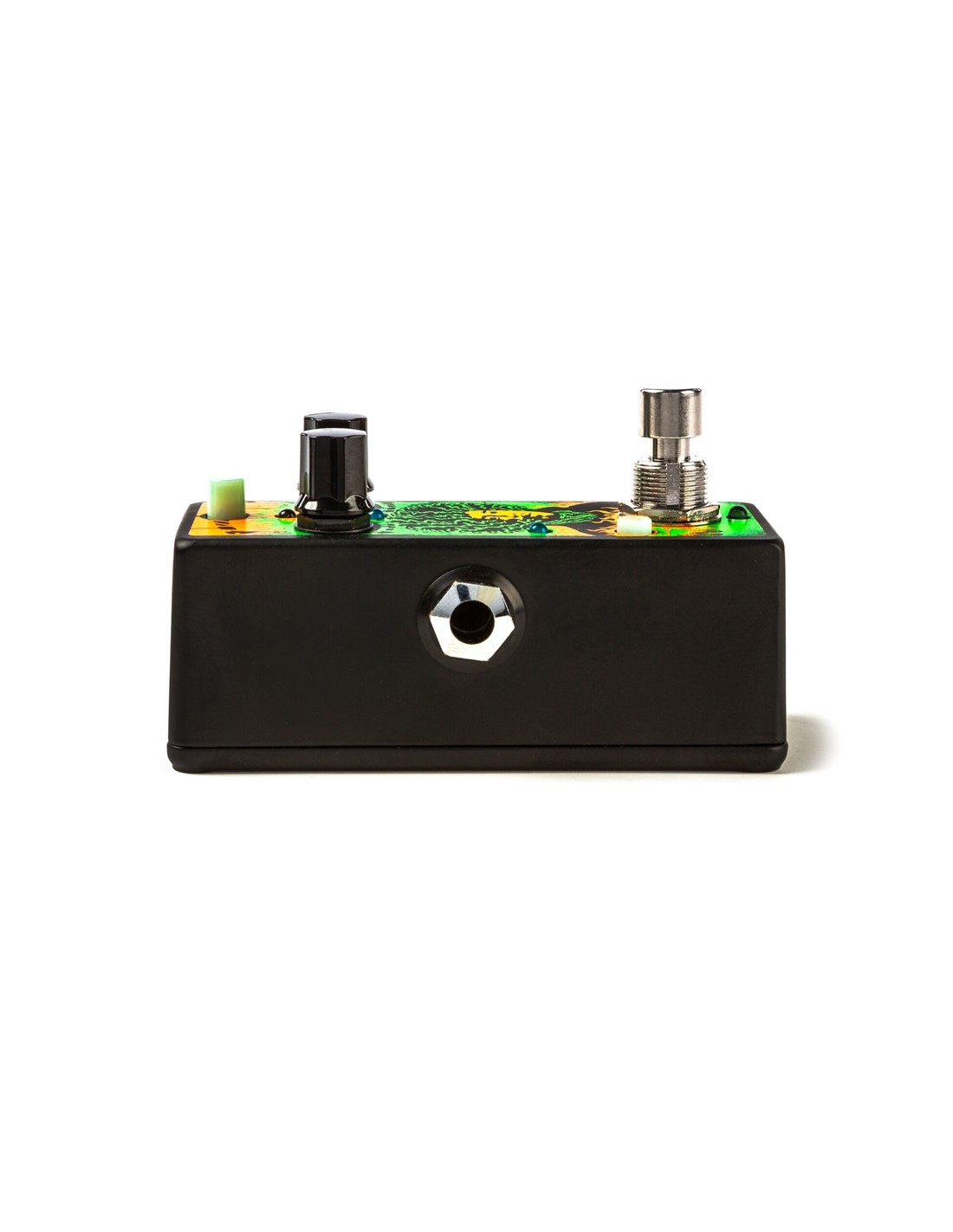

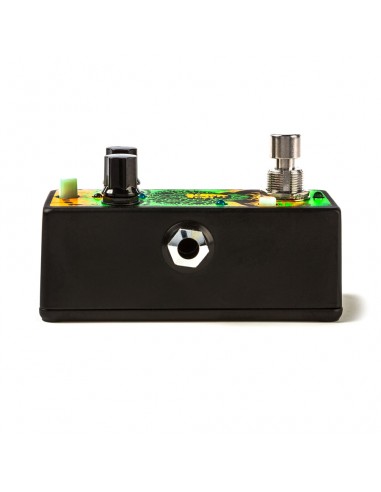

The JHMS1 '68 Shrine Series Fuzz Face Distortion is Dunlop 's Authentic Hendrix series fuzz/distortion pedal . Featuring a custom finish inspired by Jimi Hendrix 's famous 1968 Shrine Auditorium concert poster, this pedal captures two distinct Hendrix fuzz tones in one compact body: aggressive silicon crunch and warm, smooth germanium saturation.
OVERVIEW OF THE DUNLOP JHMS1 AUTHENTIC HENDRIX '68 SHRINE SERIES FUZZ FACE DISTORTION

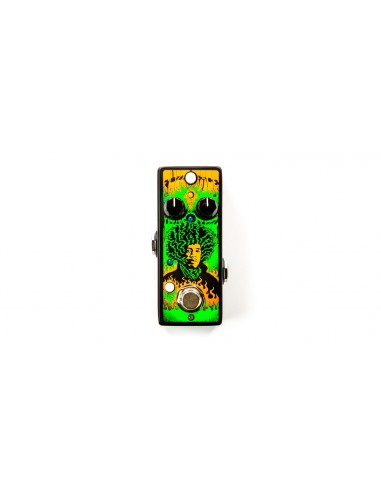

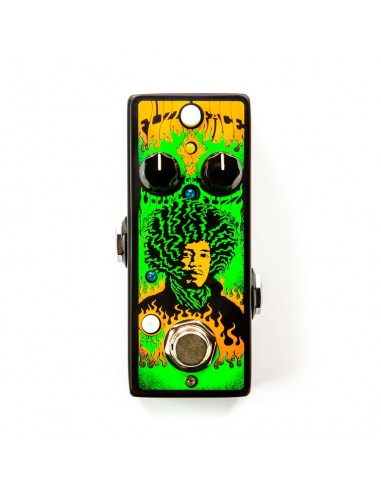

This special edition Fuzz Face Distortion pays homage to the legendary Jimi Hendrix with a custom finish inspired by artist John Van Hamersveld's famous 1969 Shrine Auditorium concert poster. Green and blue flames evoke the fiery passion and metaphysical musical experience that Jimi Hendrix gave the world, while psychedelic lettering captures the mood of the era.
Packed into a small body, the Authentic Hendrix '68 Shrine Series Fuzz Face Distortion pedal captures two distinct flavors of Jimi Hendrix fuzz tones: the aggressive silicon-based crunch he used in the latter part of his career, and the warm, smooth germanium fuzz saturation he used in his early years. You can switch between the two by pressing the dedicated button. This pedal features a buffered bypass switching system for a wider range of tones that pairs perfectly with wah pedals like the Jimi Hendrix Cry Baby Wah.
DUNLOP JHMS1 AUTHENTIC HENDRIX '68 SHRINE SERIES FUZZ FACE DISTORTION CONTROLS
Buff Switch: allows you to choose the input impedance (high indicated by the blue LED);
Volume: Adjusts the overall volume of the effect;
SI/GE: This switch allows you to choose between silicon (white LED) and germanium (blue LED) fuzz;
Fuzz: Adjusts the intensity of the fuzz;
Footswitch: Turns the effect on or off (blue LED indicates pedal is on).
TECHNICAL SPECIFICATIONS OF THE DUNLOP JHMS1 AUTHENTIC HENDRIX '68 SHRINE SERIES FUZZ FACE DISTORTION
Input Impedance (Buff ON): 800 kOhm
Output Impedance (Max Volume): 16 kOhm
Output Impedance (Mid Volume): 160 kOhm
Maximum output level: -4 dBV
Maximum gain: 55dB
Bypass: True Hardwire
Current consumption: 6.8 mA
Power supply: 9 volts DC
SILICON FUZZ (BUFF OFF)
Input Impedance: 10 kOhm
Output Impedance (Max Volume):
Output Impedance (Mid Volume): 66 kOhm
Maximum gain: 55dB
Bypass: True Hardwire
GERMANIUM FUZZ (BUFF OFF)
Input Impedance: 10 kOhm
Output Impedance (Max Volume): 2 kOhm
Output Impedance (Mid Volume): 115 kOhm
Maximum gain: 45dB
Bypass: True Hardwire
