1000W amplified speaker

With the HIMaxX range, FBT sets a benchmark in the panorama of polypropylene speakers for sound reinforcement, bringing performance and technological content to a very high level.

Compact and lightweight, HiMaxX 40A brilliantly meets the most demanding needs of enthusiasts, musicians and professionals looking for powerful, versatile and top-quality speakers.
Ideal for live and sound reinforcement applications that require ease and convenience of transport, they are also suitable for fixed installation thanks to the provisions present in the cabinet.

A strong and dynamic design for an aggressive and clean line.
A sturdy and lightweight box that allows for great versatility of use, ready for installation using the appropriate anchoring points and optional accessories.
Angled side for use as a stage monitor.

A control panel specifically designed to allow ease of use and immediate management of commands.
XLR/Jack micro/line input, stereo auxiliary input with volume, 3-band tone controls, ground lift, diagnostic LED.

Speaker completely redesigned in collaboration with B&C.
FBT has studied and designed a special basket, a more efficient ventilation circuit with a consequent reduction in “power compression” of 2dB, a significantly more rigid cone to improve reliability and distortion and an even more powerful neodymium magnet to increase control and efficiency.
The voice coil diameter is 75 mm for greater power handling and reliability.

B&C compression driver with 25 mm (1") mouth and 44 mm (1.7") voice coil for high power handling.
Thanks to the use of a flux demodulator ring, the reproduced high frequencies are even more dynamic and crystalline.

The development of the innovative amplifier is the fruit of years of research by FBT 's R&D laboratories.
It has been possible to combine the contrasting qualities of lightness, high power, efficiency and reliability using the latest technologies.
Switching power supply to reduce weight and increase power delivery speed, ultra-high efficiency PWM bass amplifier to maximize power output with minimal heat dissipation.
The Class G treble amplifier allows you to have the sound quality of a Class A with a much higher efficiency.

The extremely silent preamplifier made with SMD technology takes care of managing the equalizations, the 24dB/oct crossover, the sophisticated protections, the limiter and the controls on the control panel.

The horn profile has been redesigned to allow greater control of directivity with reduced distortion.
The dispersion angle is 90°H x 60°V.
HiMaxX 40A Features:

2-way bi-amplified system in Bass-Reflex
B&C custom FBT 320mm (12 ) neodymium woofer with 75mm (3 ) voice coil
B&C compression driver with 25mm (1") mouth and 44mm (1.7") voice coil
500Wrms PWM LF Amplifier
150Wrms Class G HF Amplifier
Switching power supply for excellent power/weight ratio
Analog signal processor with limiter

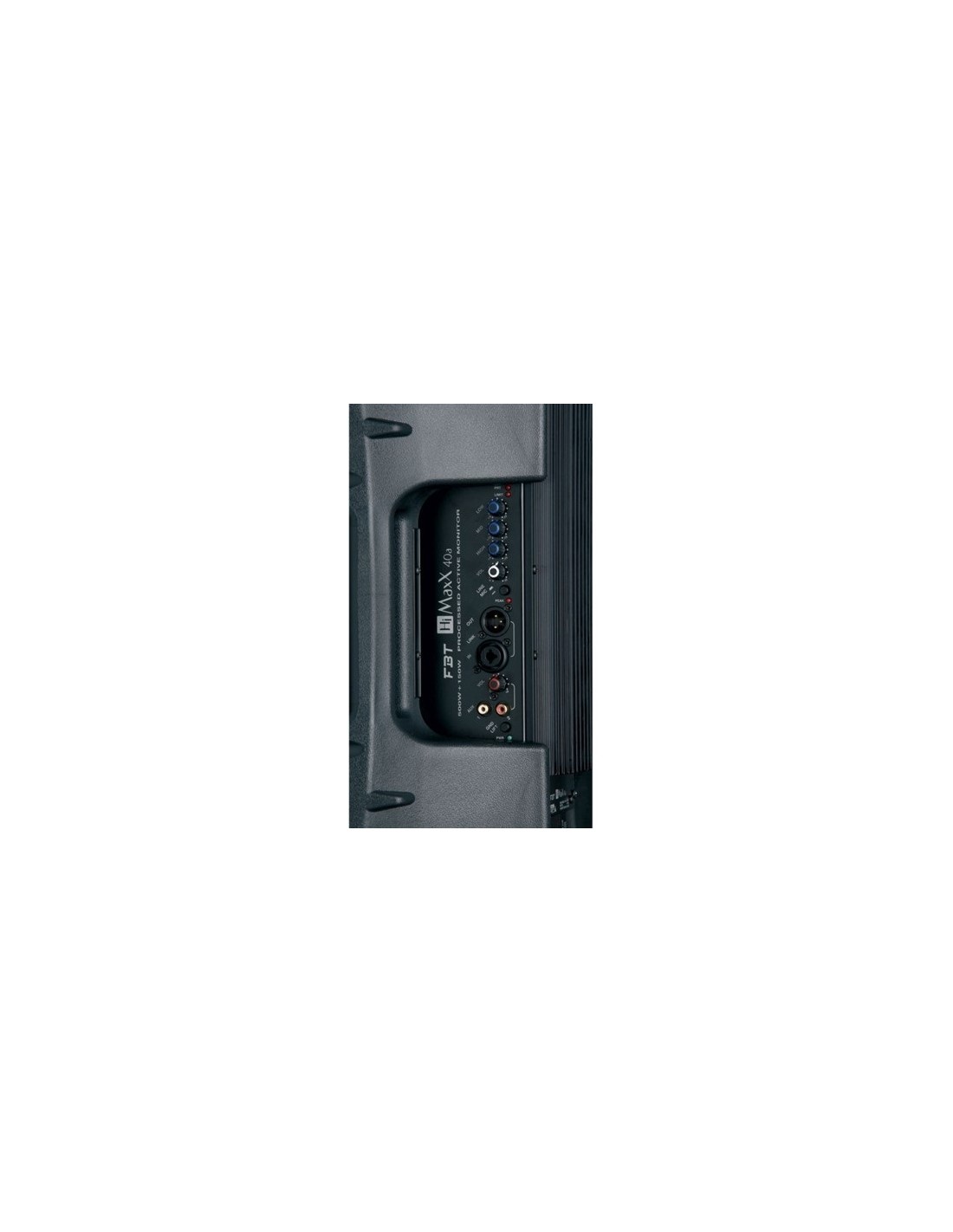

Completely redesigned control panel with:
- Gain and Volume functions merged into a single potentiometer to improve simplicity and immediacy of use, improving dynamic range and input signal-to-noise ratio
- Switchable MIC/LINE XLR/Jack and Link XLR input
- Stereo RCA auxiliary input with separate volume for connecting MP3, CD, PC
- 3-band tone controls (Bass, Mid, Treble)
- Ground Lift
- Diagnostic LEDs
Trumpet 90°H x 60°V
4 M10 anchor points, 35mm tripod support, bracket anchor for wall installations and
2 integrated handles
Stackable box

Specifications:

Configuration: 2 Way
Internal amplifier LF/HF W RMS: 500/150
Internal amplifier max. LF/HF W RMS: 1000/250
Internal LF/HF peak amplifier W RMS: 1600/500
Frequency response @-6dB: 45Hz - 20kHz
Low frequency unit mm: 1x 320 - 75 coil
High frequency unit mm: 25 - coil 44
Sensitivity (@1W/1m): 99dB
Maximum SPL cont./peak: 127/133 dB
H x V dispersion: 90° x 60°
Input impedance kOhm 22
Crossover frequency 1.6 kHz
Input connectors: XLR/jack with RCA aux loop
Power cable 5m
Dimensions (WxHxD) 407 x 634 x 370 mm
Net weight 17.9 Kg
