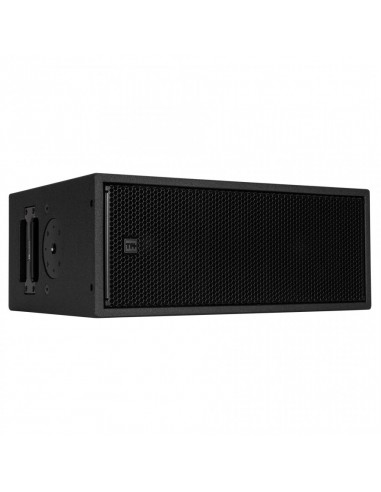

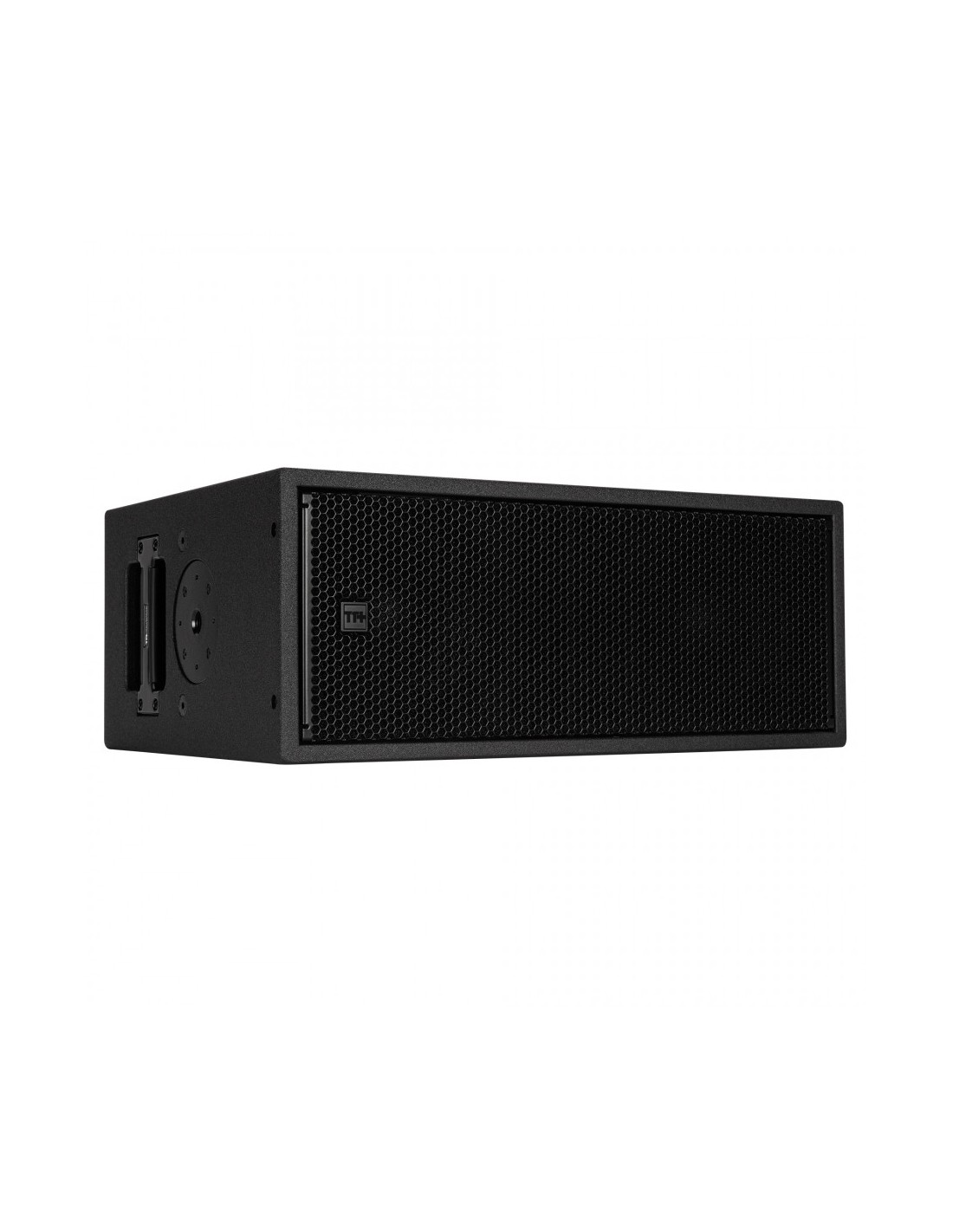

The RCF TT 808-AS is a compact, low-profile, high-performance active subwoofer. It features two 8" vented cone woofers powered by a 1000-watt dual-channel amplifier, one for each woofer.
The Baltic birch plywood the cabinet is made of is coated with black polyurea and a weatherproof treatment. Management and tuning are available via RDNet software or via two preset buttons, a polarity button and an accessible variable delay located on the rear panel

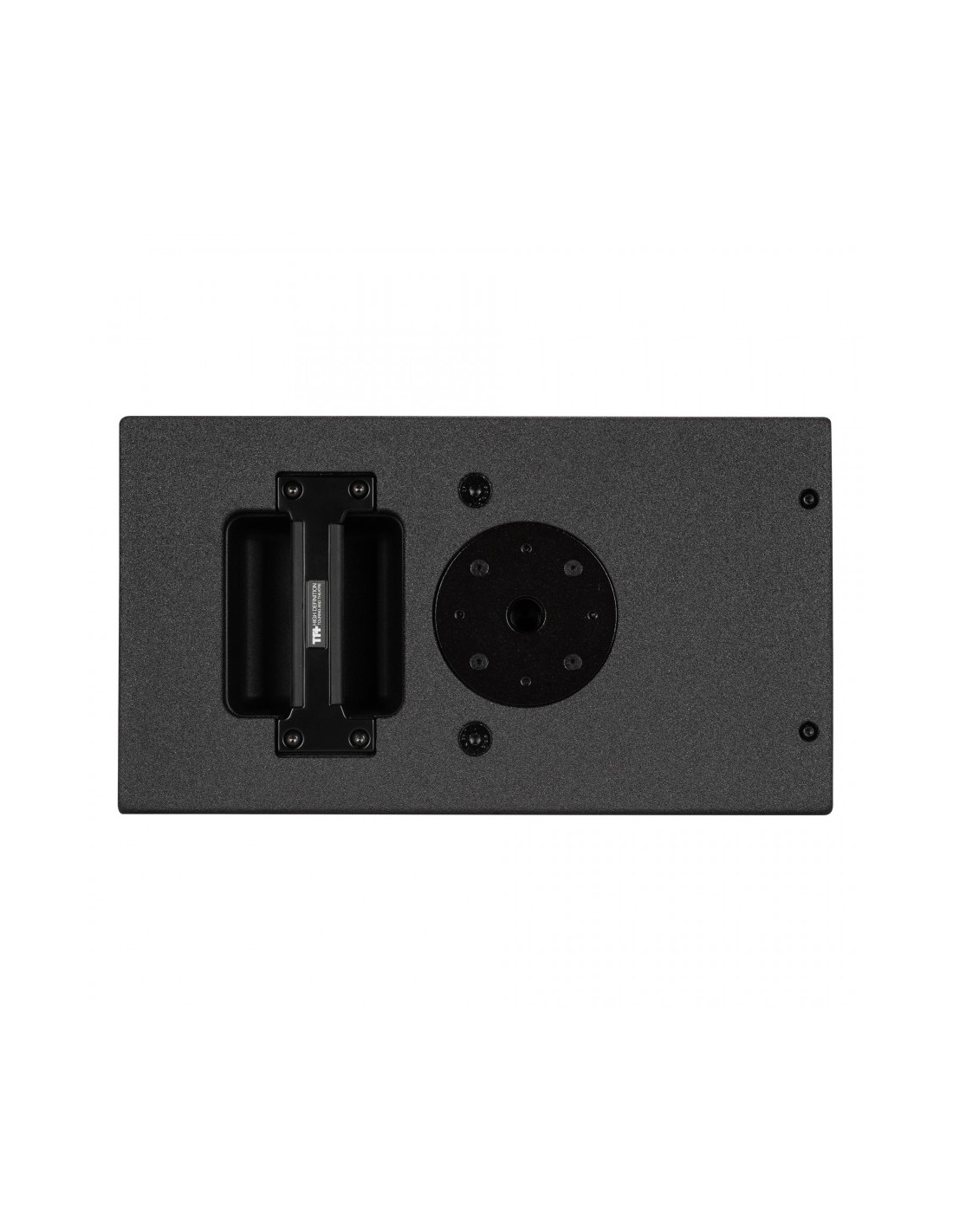

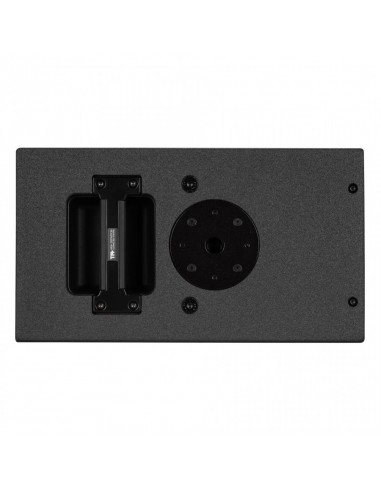

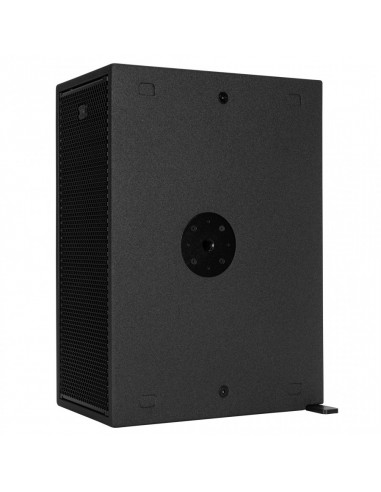

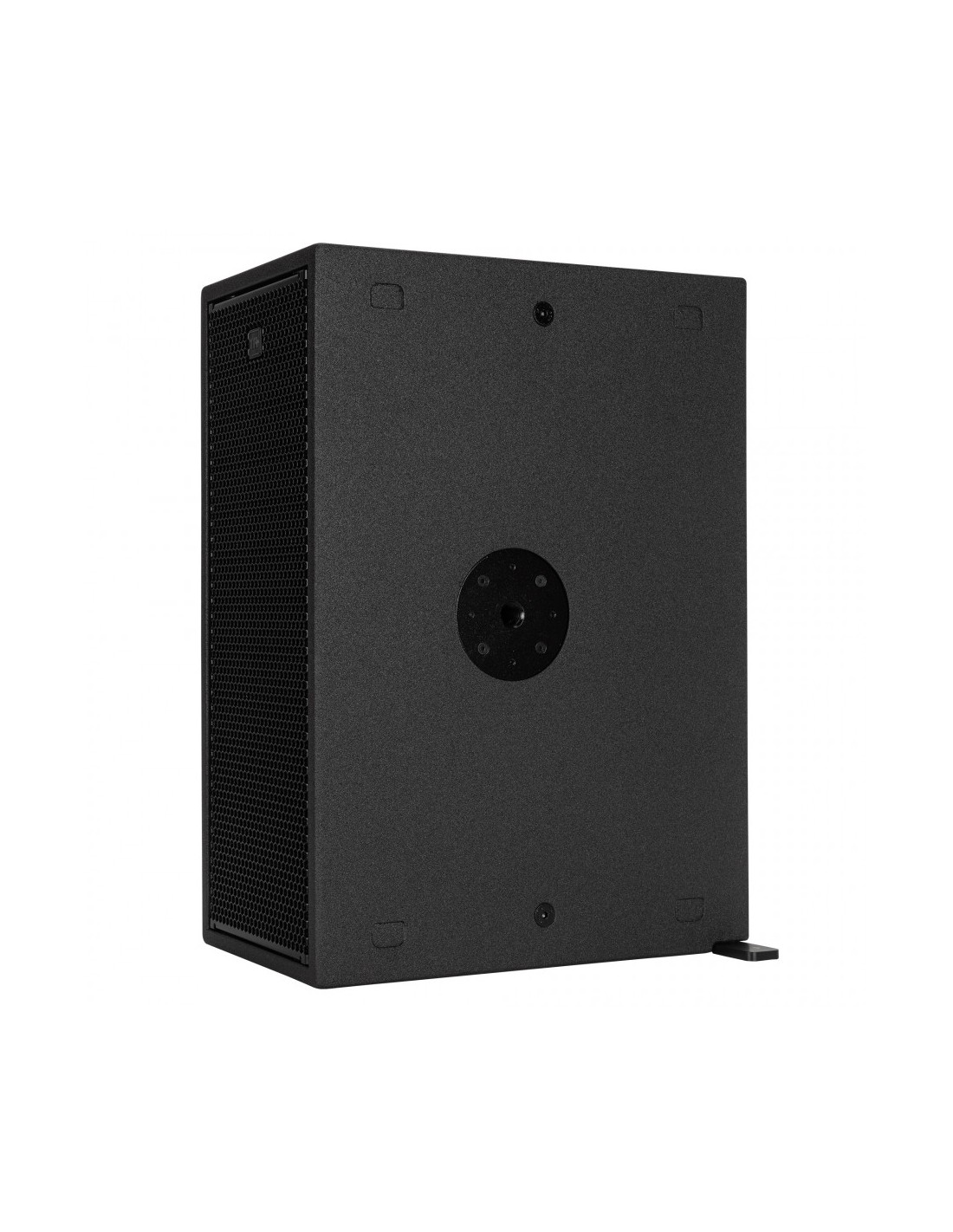

The cabinet is equipped with rubber feet on two sides and two threaded pole mounts for horizontal and vertical positioning. Two stabilizing brackets make vertical positioning stable and secure.
2000W speaker in the palm of your hand
The amplifier integrates a 32-bit low-noise DSP circuit, controlled through RCF's proprietary RDNet Networked Management software. The internal DSP easily manages soft clipping limiters, RMS limits, polarity, amplitude, delay and equalization.
All settings, monitoring and more advanced functions, such as the subwoofer array configurator, are available within RDNet. The rear control panel can be used to adjust volume, low pass, the TT 515-A custom crossover and bypass. The regulated power supply guarantees full power from 100V to 260V.
The amplifier is housed in a unique Vibrostop floating aluminum panel for added protection during transportation. Internal DSP processing includes multiple EQs, delays, crossovers and special BMC processing for coherent sound distribution without phase distortion and deep, tight bass at any volume.
Professional active subwoofer
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small size compared to others in its category. The self-powered design, RDNet remote control, easy configuration of subwoofer arrays (i.e. cardioid subs) and the impressive size/weight to SPL output ratio create an engaging and immersive experience for any audience.
Built for heavy duty use
The cabinet is constructed from high-quality birch plywood with a weather-resistant exterior treatment. The subs are lightweight and stackable, with eight M10 threaded inserts for easy rigging. Two M20 threaded pole mounts on the top and sides allow the woofer to be used in a vertical or horizontal configuration, with rubber feet on both sides.
Two stabilizing brackets make vertical placement stable and secure. The heavy-duty coating, powder-coated metal grille and sturdy cabinet structure withstand long-term use and transportation. The separate amplifier housing ensures component efficiency and reliability. A transparent acoustic foam lining inside the grille provides protection from dust and moisture.
Bass Motion Control
Advanced woofer excursion management increases linearity and enhances bass with a radically new approach. BMC extends the lowest audible frequency without affecting transducer stability, limiting over-excursion for greater reliability and superior performance at high volume levels.
FiRPHASE
Advanced FiRPHASE and BMC algorithms optimize dynamics, amplitude and phase patterns, extending the lowest audible frequency while limiting overtones.
Special FiRPHASE filters allow for coherent sound distribution for all listeners without phase distortions, ensuring minimal latencies in the system.
RDN Network
RDNet is a robust management network and control platform for small, medium and large audio systems, as well as for complex and large installations. complex and large installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or parameter changes to individual or groups of objects. A network user can change level, delay, equalization (even FiR linear phase) and other settings, including advanced subwoofer configurations. RDNet is not just designed for loudspeakers: it is possible to control parameters and routing of multiple RCF devices such as digital matrices or amplifiers.
RCF TT 808-AS Features
129dB max SPL
Frequency range from 40Hz to 400Hz
1000W RMS Class D amplifier
2x8" neodymium woofer, 2.5" vc
Integrated RDNet
Bass Motion Control excursion management
Flexible Rigging
Rotatable TT+ logo
Technical specifications RCF TT 808-AS
Frequency response: 40 Hz ÷ 400 Hz
Max SPL @ 1M: 129dB
Woofer: 2 x 8'' neo, 2.5'' vc
Input signal: bal/unbal
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Protections: Hiking.
Limiter: Fast limiter
Controls: Gain, EQ, Onboard Bypass
RDNET: Yes
Total power: 2000W peak, 1000W RMS
Low frequencies: 2000 W peak, 1000 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Cabinet Material: Baltic birch plywood
Hardware: 2X M20 TOP AND SIDE 8X M10 2X SIDE
Handles: 2 X SIDE
Grill: Steel
Color: Black
Height: 243.5 mm / 9.59 inches
Width: 603.5 mm / 23.76 inches
Depth: 430 mm / 16.93 inches
Weight: 20kg / 44.09 lbs
