Alto Professional TS412

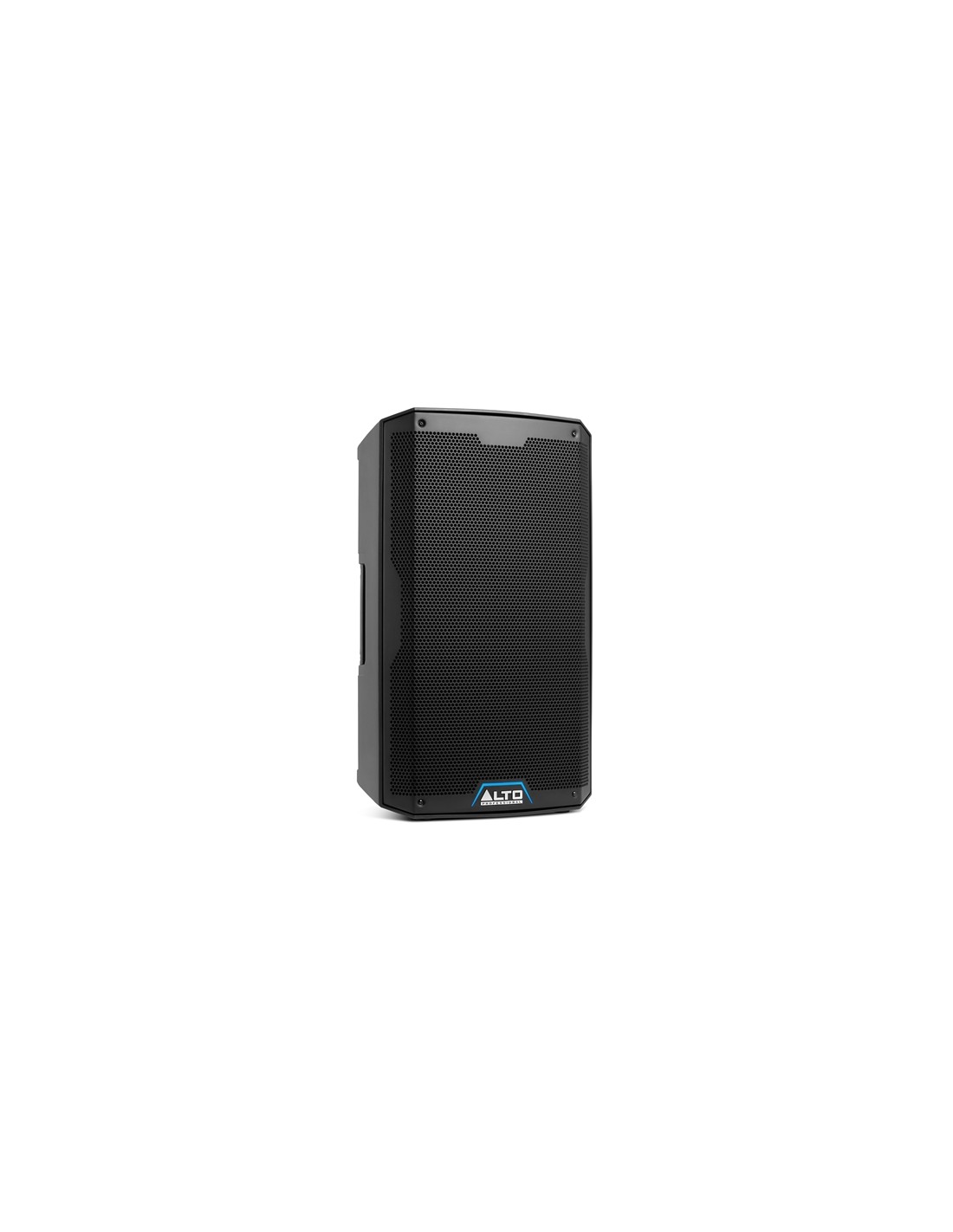

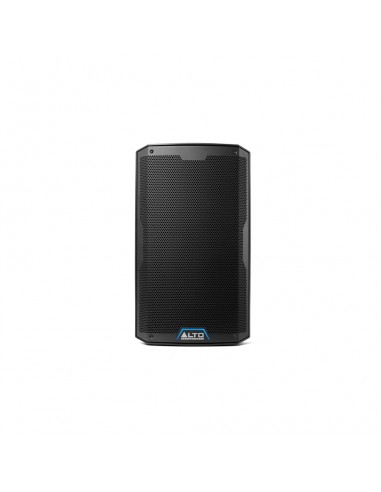

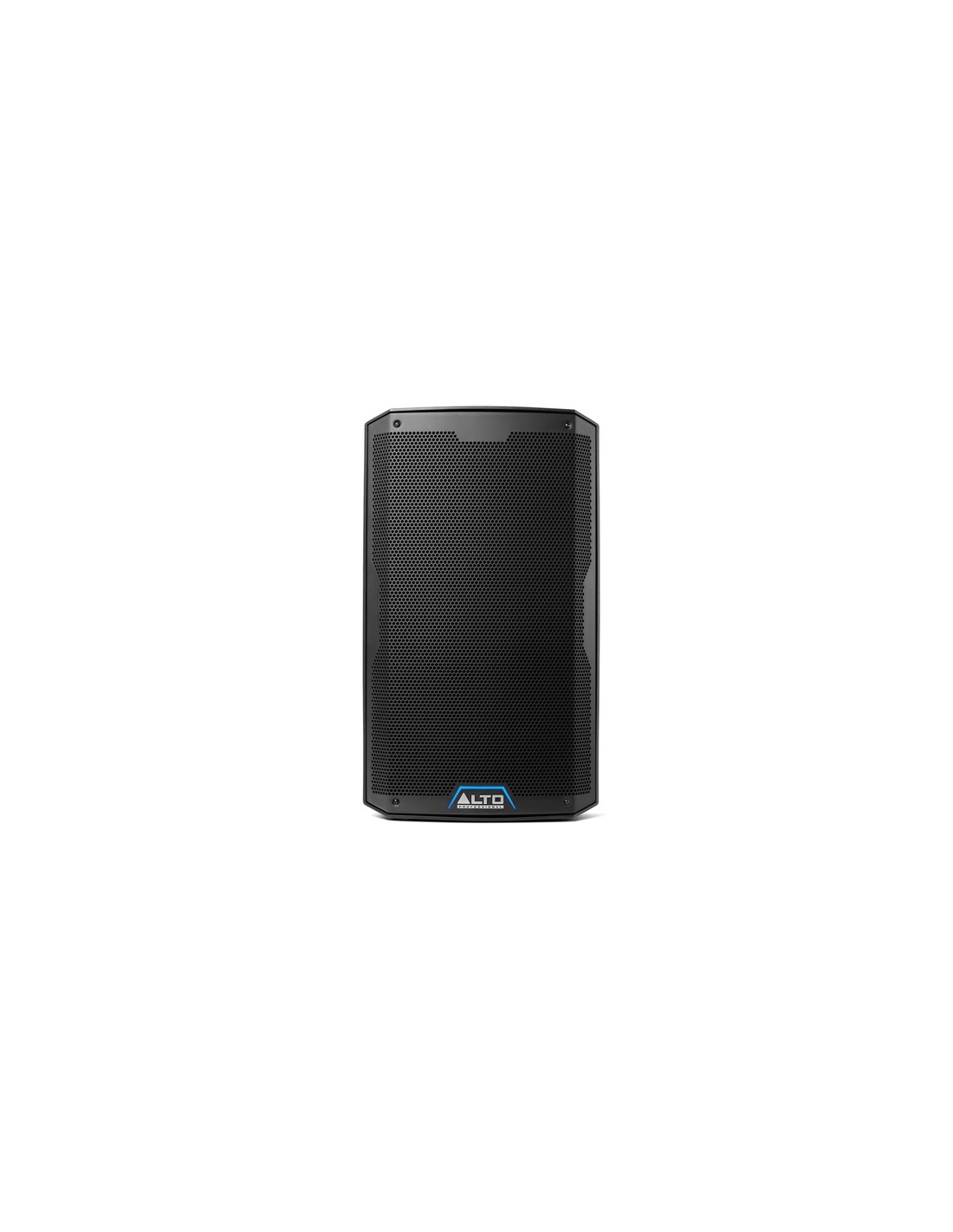

Alto Professional TS412 is a 2500W peak powered speaker (RMS: 800W on the lows, 450W on the highs), which covers a frequency range from 44Hz to 20kHz and is equipped with three audio inputs with separate volume controls: two mic/line on Combo connector and one wireless Bluetooth 5 with pairing buttons and stereo link function. Max SPL : 132dB (peak), 129dB (continuous). DSP functions manageable via iOS and Android app.
Alto TS412: True Sonic Power

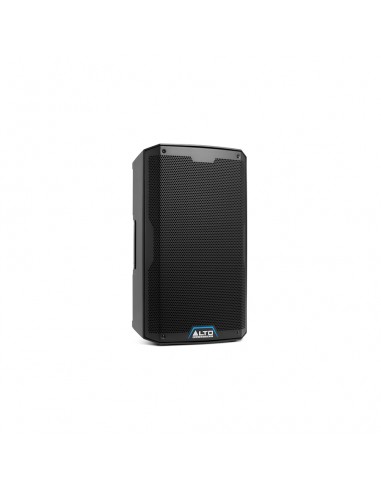

Whatever your amplification needs, with the Alto Professional TS412 speaker you will have an elegant and quality product at your disposal, with a peak power of 2500W, a 12” woofer and a 1” compression tweeter respectively equipped with 2.5” (63mm) and 1.4” (35mm) voice coils and amplified in class D with 800W and 450W RMS. The frequency response ranges from 53Hz to 20kHz with a tolerance margin of +/-3 dB, which extends in the low frequencies up to 44Hz with a tolerance of -10 dB.

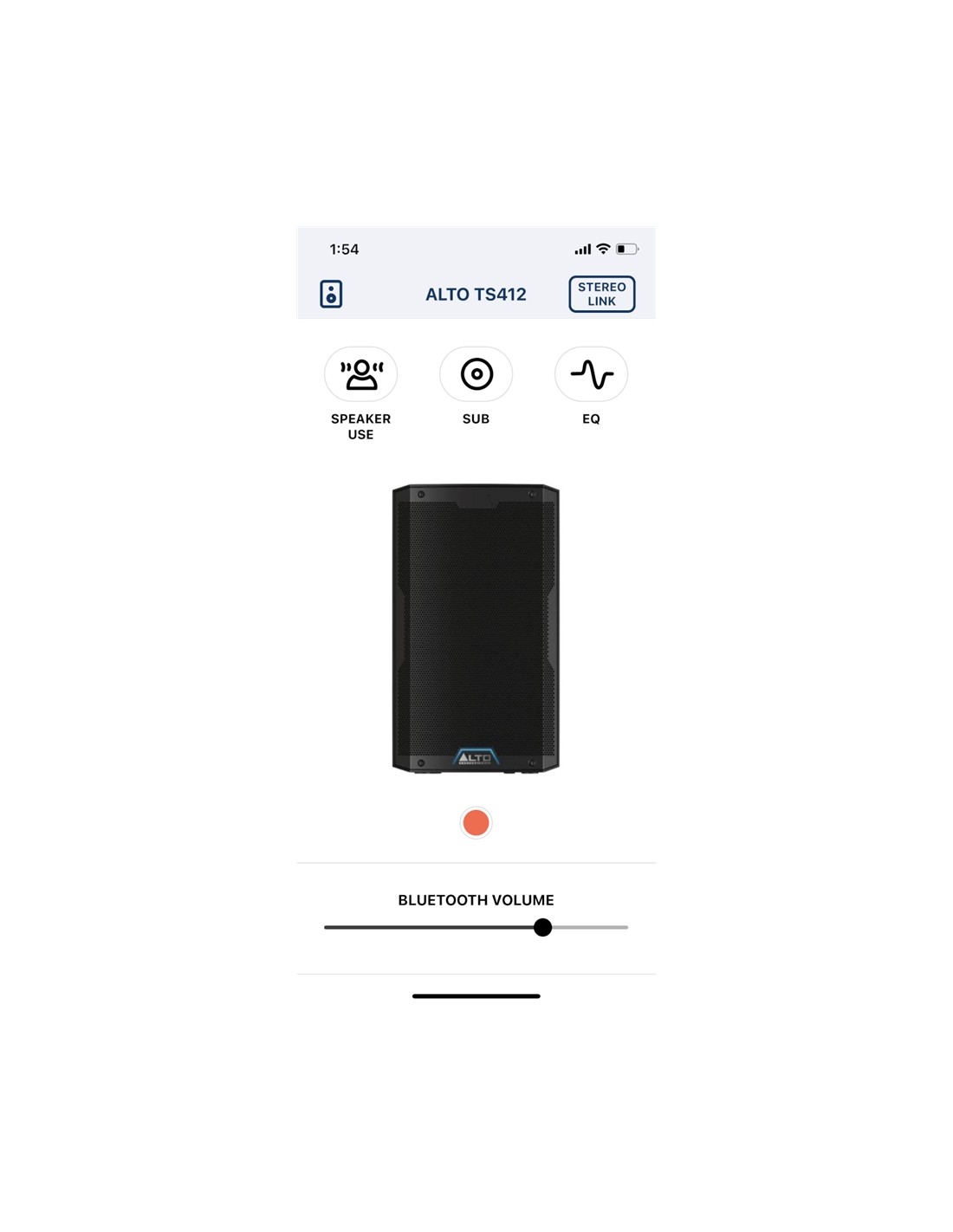

Alto iOS and Android App Free

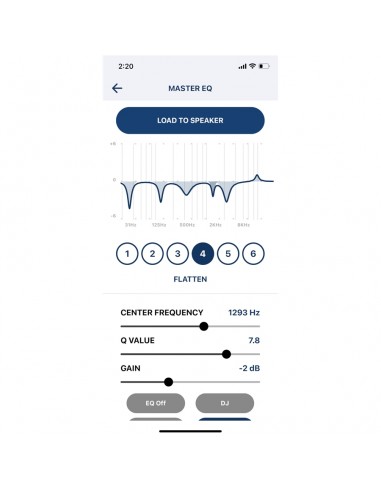

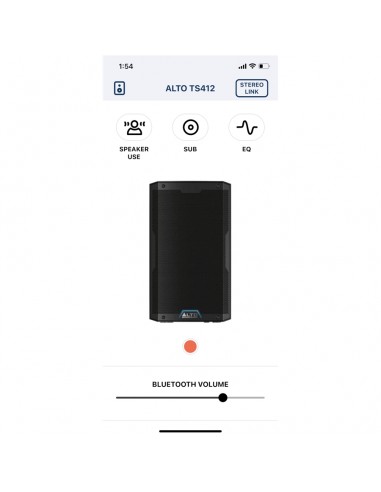

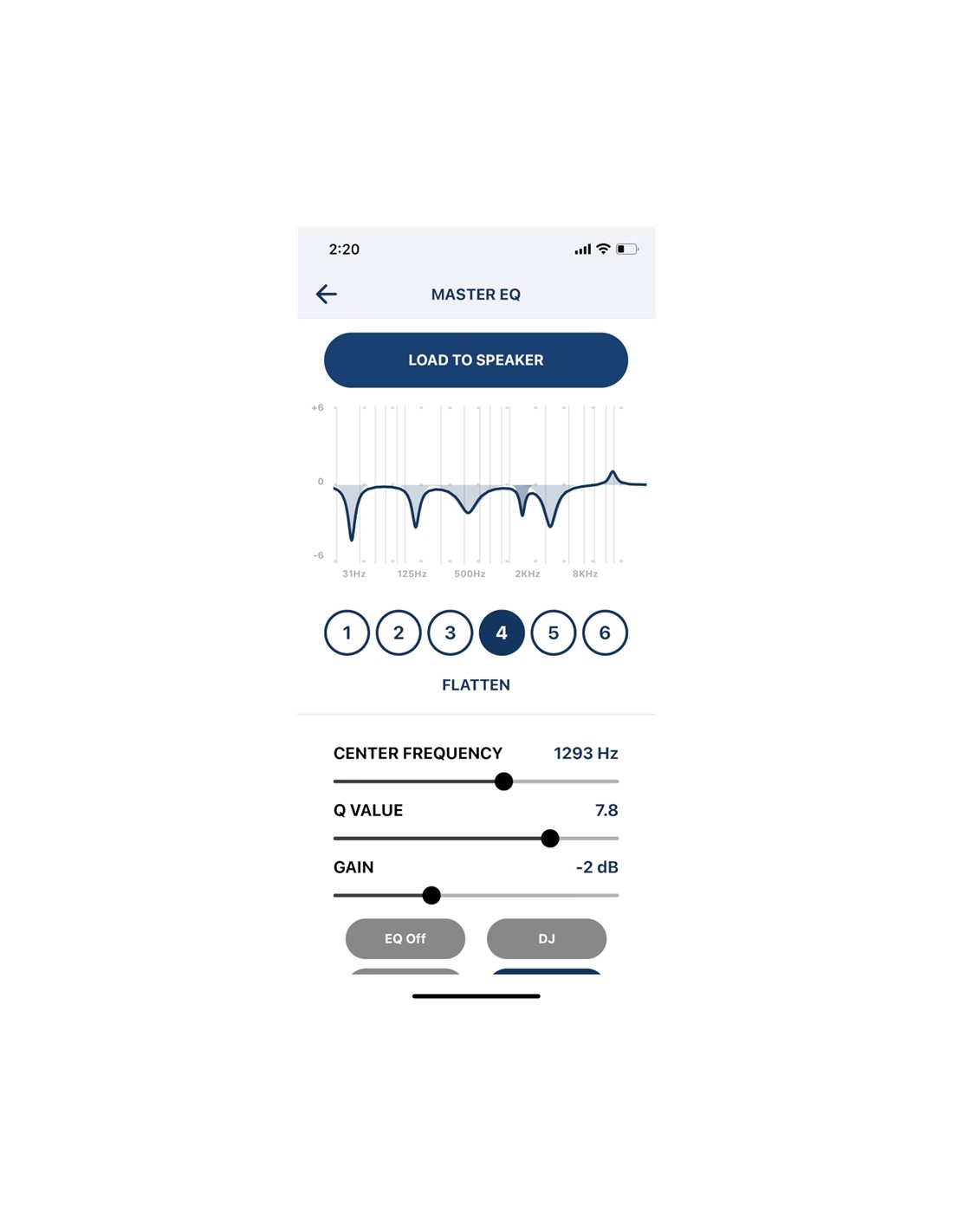

The application for iOS and Android tablets and smartphones that allows you to control the DSP functions of your Alto Professional TS412 speaker: Bluetooth Volume, EQ presets, Custom EQ with 6 parametric bands and Stereo Link

Configure and control your Alto Professional TS412 amplified speaker from your smartphone and tablet thanks to the dedicated App available free of charge for iOS and Android devices. In the application you can configure the audio level via Bluetooth, the way to use the speaker, set your custom equalization (with 6-band parametric EQ) and the high-pass filter that best suits the size of your possible Subwoofer. In addition, you can configure the True Wireless Stereo Link directly in the app, thus minimizing setup times. A USB type A socket on the rear panel of the TS412 allows you to power/charge smartphones and tablets.
3-channel mixer integrated into the TS412

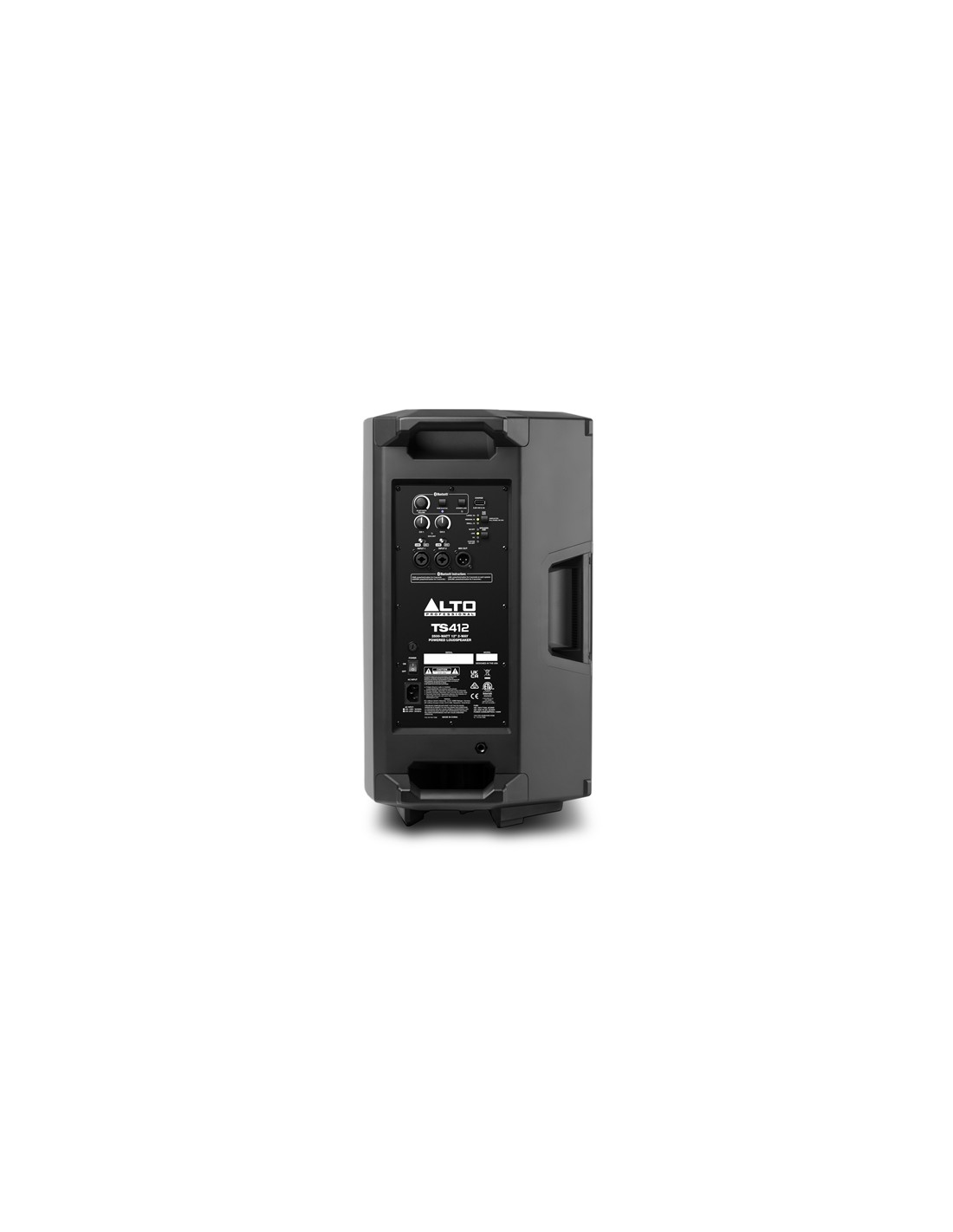

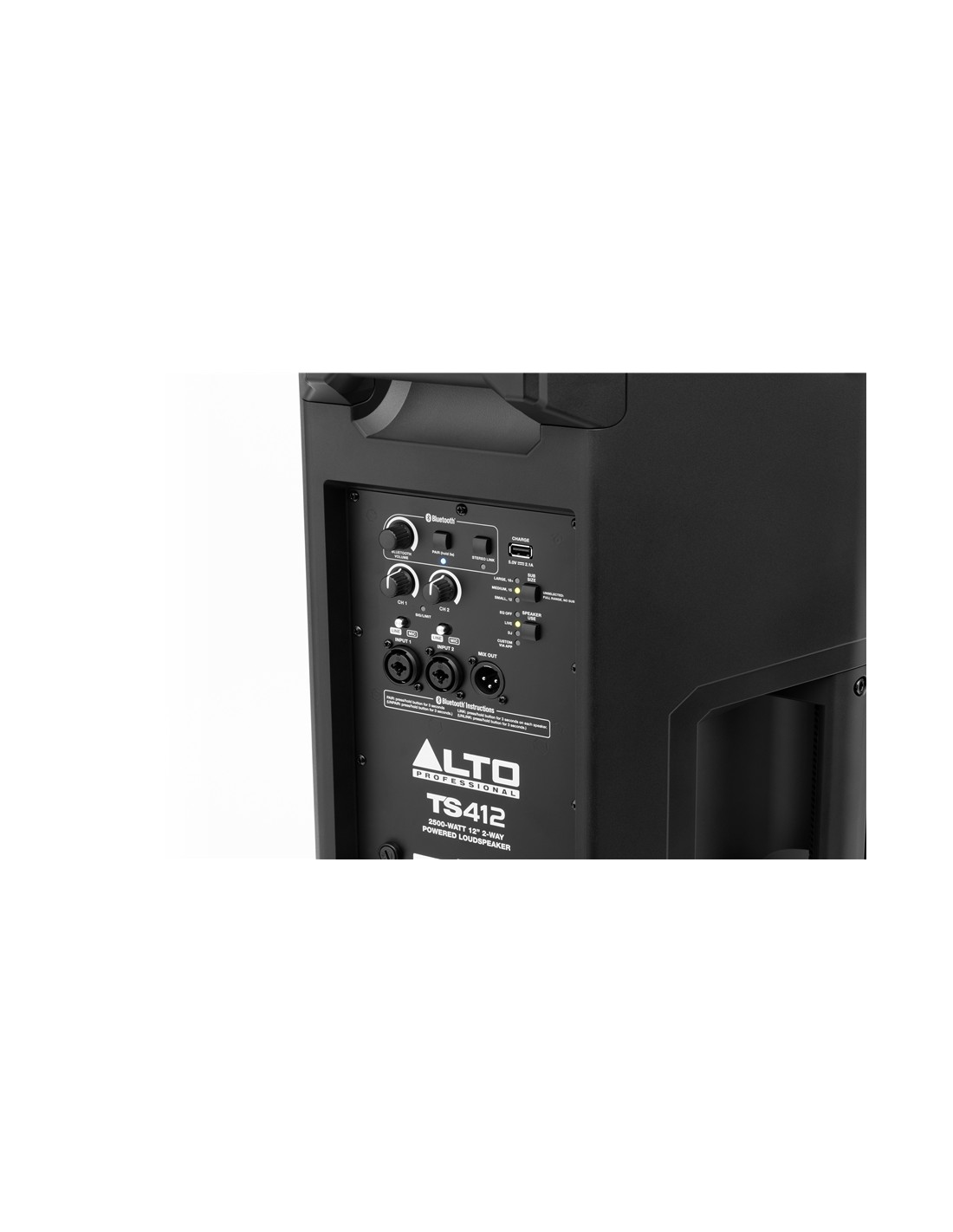

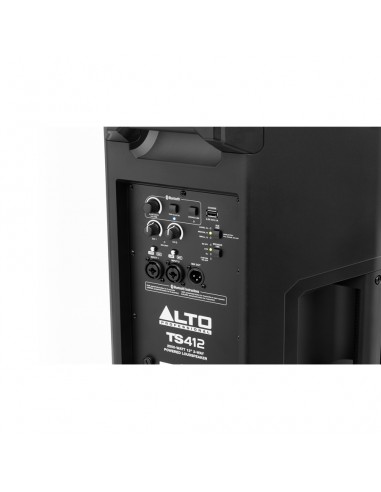

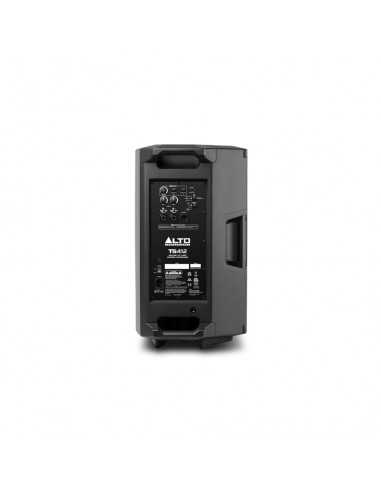

The rear panel with the 3-channel mixer integrated into the Alto Professional TS412 speaker. Two Mic/Line inputs on Combo connectors (XLR and ¼” TRS Jack), one wireless Bluetooth 5 with Pairing and Stereo Link functions. Mix Out XLR Link output

As in all models of the TS4 series by Alto Professional, the TS412 features an integrated 3-channel mixer: 2 mic/line on Combo connector (accepts XLR or 1/4” TRS Jack) and a wireless Bluetooth 5 with Pairing and Stereo Link function buttons. The Mic/Line selector on the combo inputs allows you to set the appropriate preamplification depending on the connected source. With the XLR “Mix Out” output, you can make cascade wired connections. You can therefore connect directly to your speaker and separately control the volume of the 3 connected sources: from dynamic microphones to keyboards, from musical instruments (including guitar and bass with active pickups) to guitar pedals, from mixers to audio interfaces, including various devices (computers, smartphones or tablets) equipped with a Bluetooth output.
Bluetooth Audio Connectivity & Speaker Linking

Nowadays it is essential to be able to respond to the needs of the public and the client, minimize the time to put the audio system into operation and the clutter of cables. The Alto TS412, thanks to Bluetooth 5 audio connectivity, receives the signal reproduced by laptops, cell phones and tablets. With the True Wireless Stereo function you can configure the playback of your Alto Professional TS412 speaker set so that they reproduce the stereo image of the original source. All without cables!
The DSP integrated into the Alto Pro TS412

There are three “Speaker Use” presets that you can select with the dedicated button on the rear panel: Live, DJ and “Custom via App”. The latter can be configured remotely using a 6-band parametric EQ in the iOS/Android app. You can save your custom equalization directly on the speaker to quickly recall it when you need it. With the “Sub Size” button you can choose the high-pass filter best suited for use with small, medium or large subwoofers.
Alto TS412 adapts to your needs

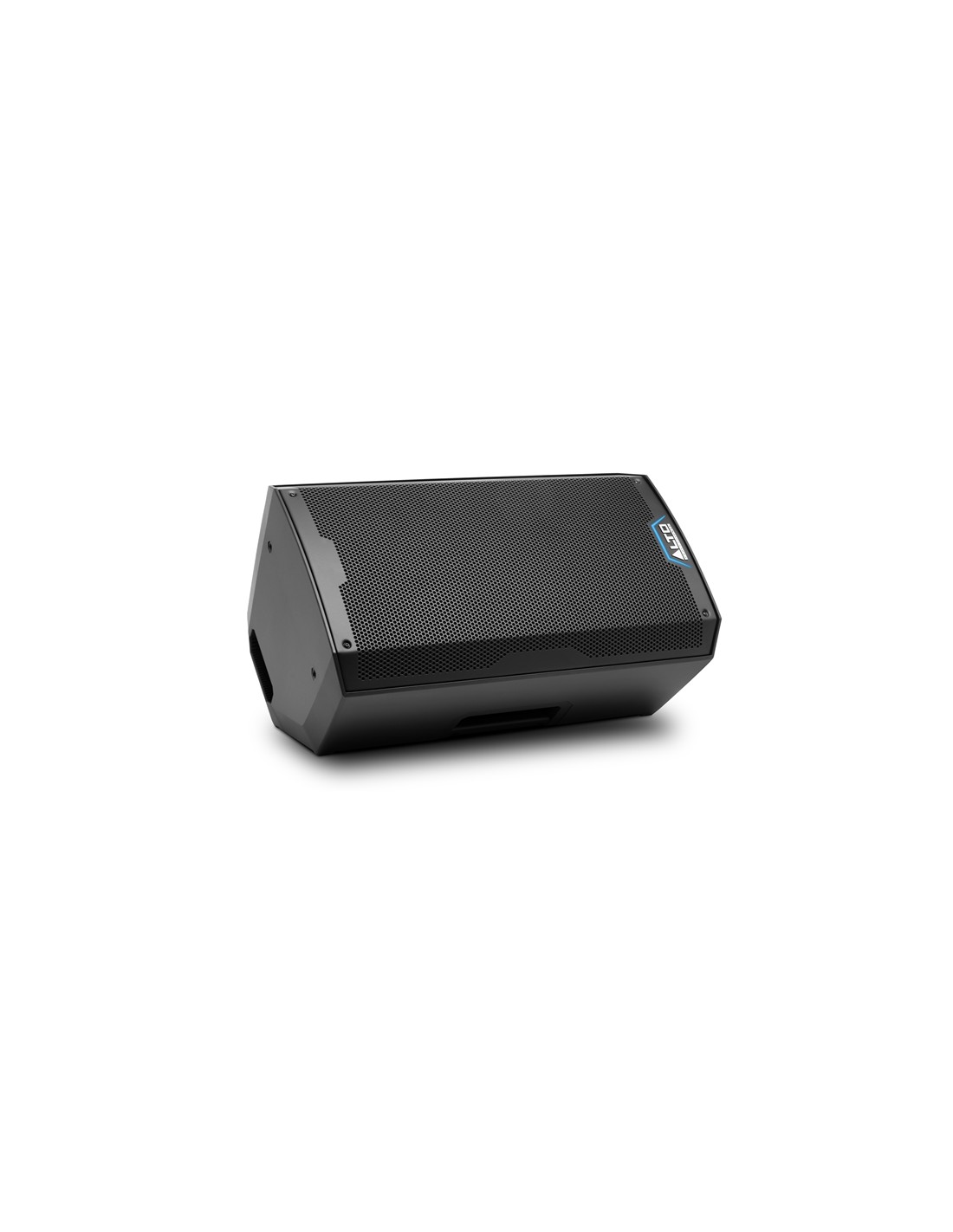

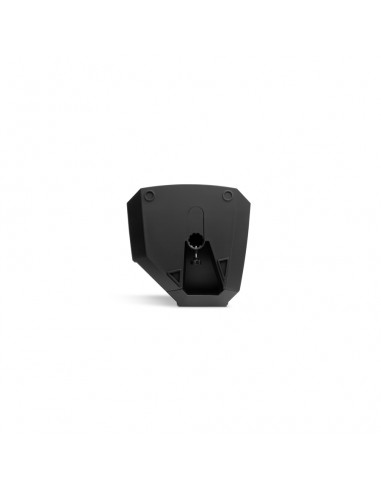

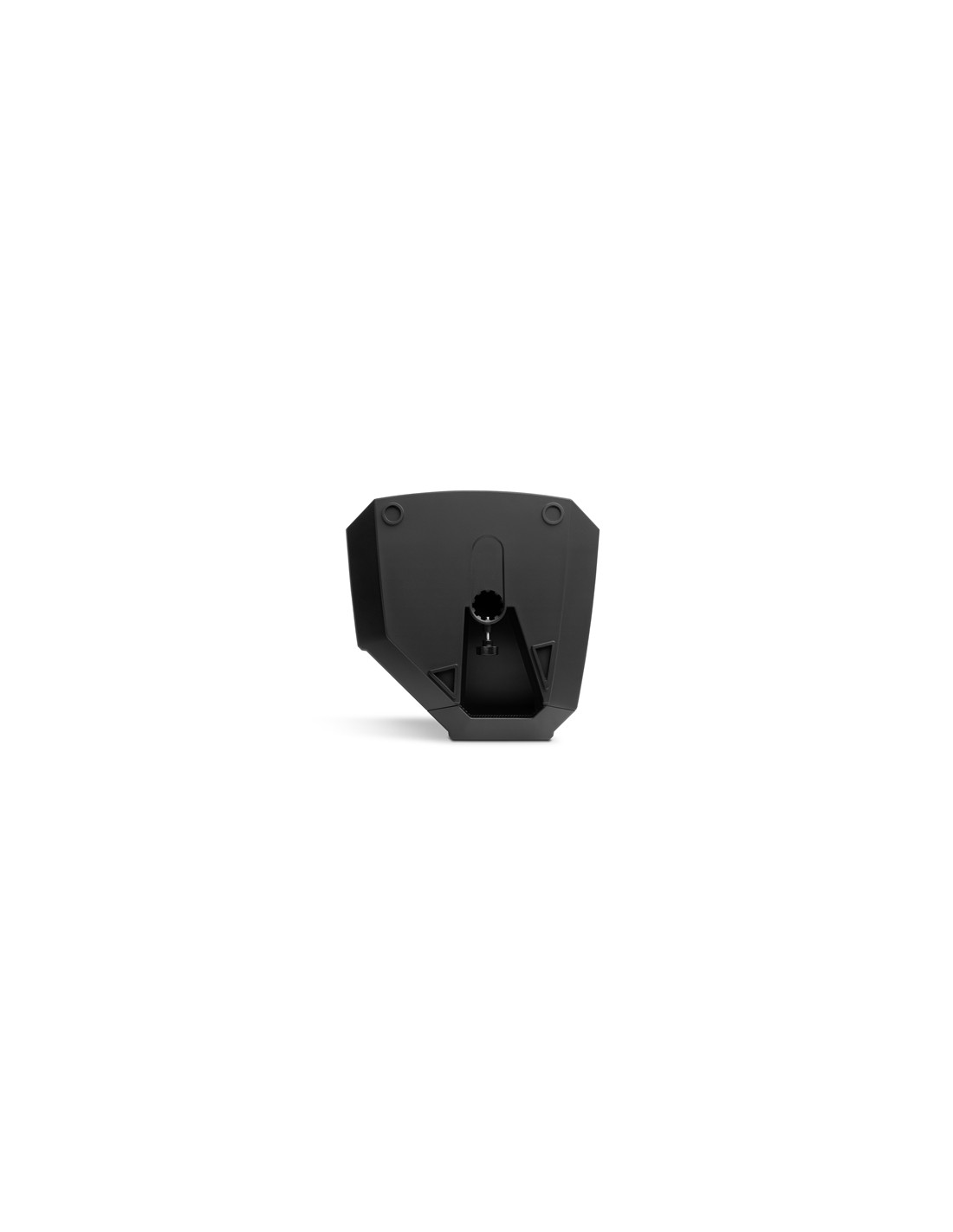

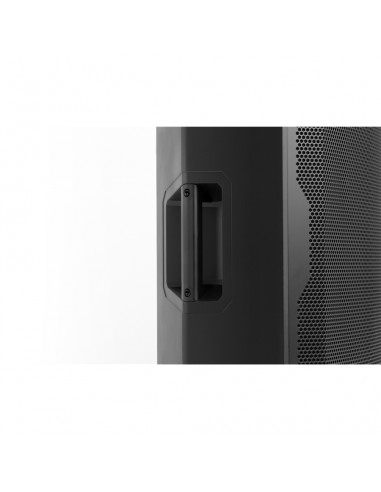

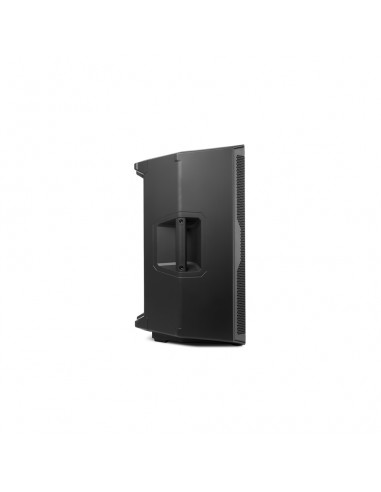

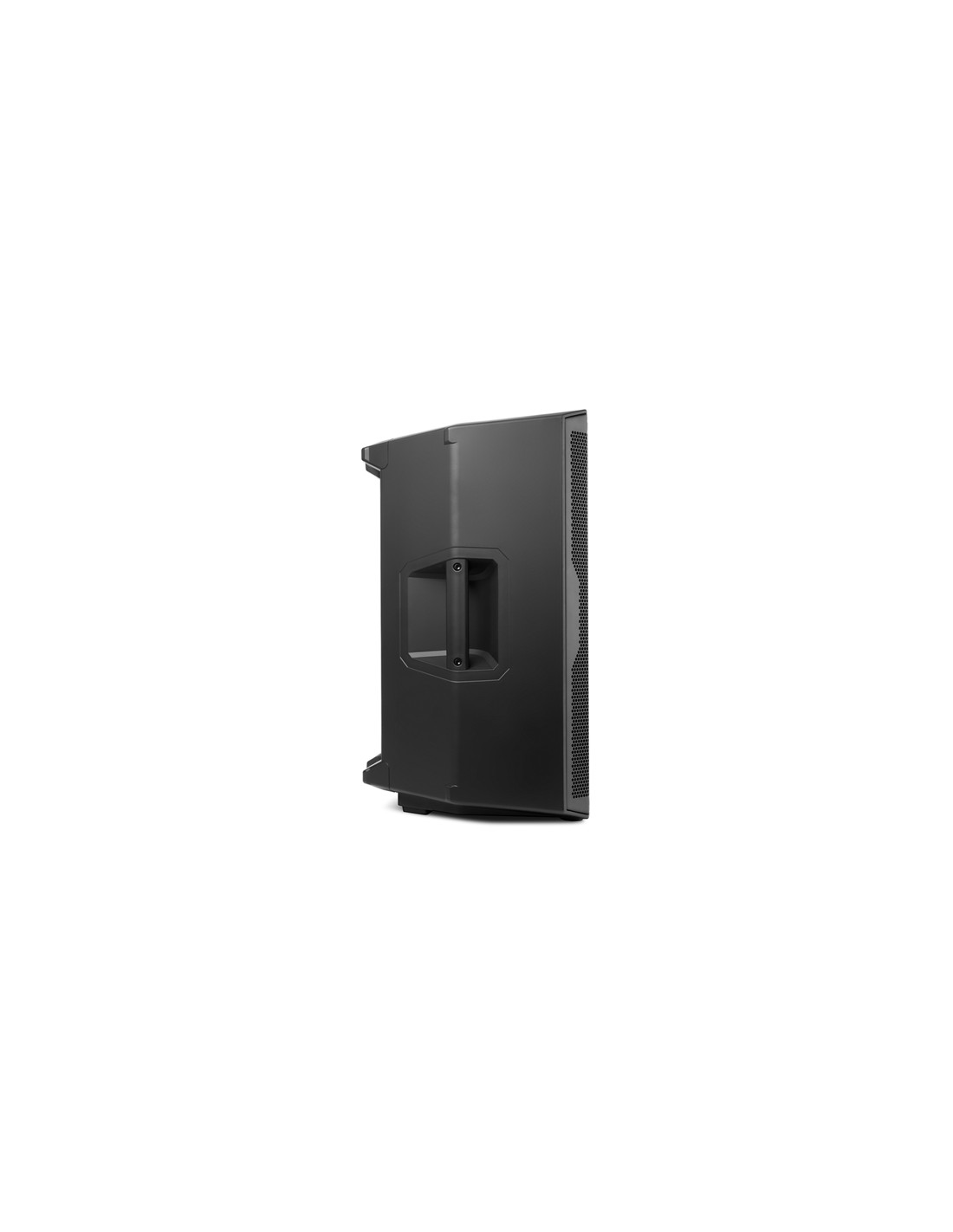

Lightweight (15KG) and compact (606.5x353.5x350.5mm) considering its power, this amplified speaker can be positioned in any way: on a stand thanks to the standard 36mm hole on the base , on the floor or as a stage monitor thanks to the particular shape of the cabinet, or suspended thanks to the suspension points integrated with M10 nuts. Passive cooling, i.e. the absence of a fan, allows the TS412 to be used in those environments that require particularly quiet equipment: from theatrical performances to places of worship.
Alto Professional TS412 Speaker Applications:

Live Performer (singers and karaoke)
Musicians and bands (live, rehearsal room)
DJ
Bars, restaurants and dance clubs
Stage spy box
Gyms and dance classes
Places of worship
Theaters
Presentations, rallies, events and weddings

Alto Professional TS412 Technical Specifications:

Two-way amplified speaker
3 inputs with volume controls
2 Mic/Line, 1 Bluetooth 5
Integrated DSP manageable via app
2500W peak
Class D amplification
Passive cooling (no fans)
RMS: 800W on low, 450W on high
MAX SPL (@1m): 132dB (peak), 129dB (continuous)
Frequency response (+/-3 dB): 53Hz to 20kHz
Covered range (-10 dB): 44Hz to 20kHz
12" woofer, 2.5" voice coil (63mm)
1" tweeter, 1.4" voice coil (35mm)
Coverage angle (nominal): 90° H x 60° V
Crossover frequency: 2kHz
2 combo audio inputs: XLR or 1/4” (6.35 mm) TRS jack
Input Impedance: 10KΩ (bal.), 20KΩ (unbal.), Mic: 1.2K
Gain Line: -∞ to 0 dB, +4 dBu, +10 dBu for max out
Gain Mic/Inst: -∞ to +50dB
XLR Output (Link)
Pairing and Stereo Link Bluetooth Buttons
Eq button 3 presets: Live, DJ and “Custom via App”
App for management from iOS and AndroID smartphones and tablets
6-band parametric EQ in the app
“Sub Size” button for high pass selection
USB A port for device charging (5V, 2.1A)
Protection circuits: overheating, clipping and transducer saturation
Trapezoidal polypropylene cabinet
Lightweight, optimized for different installations and transportation

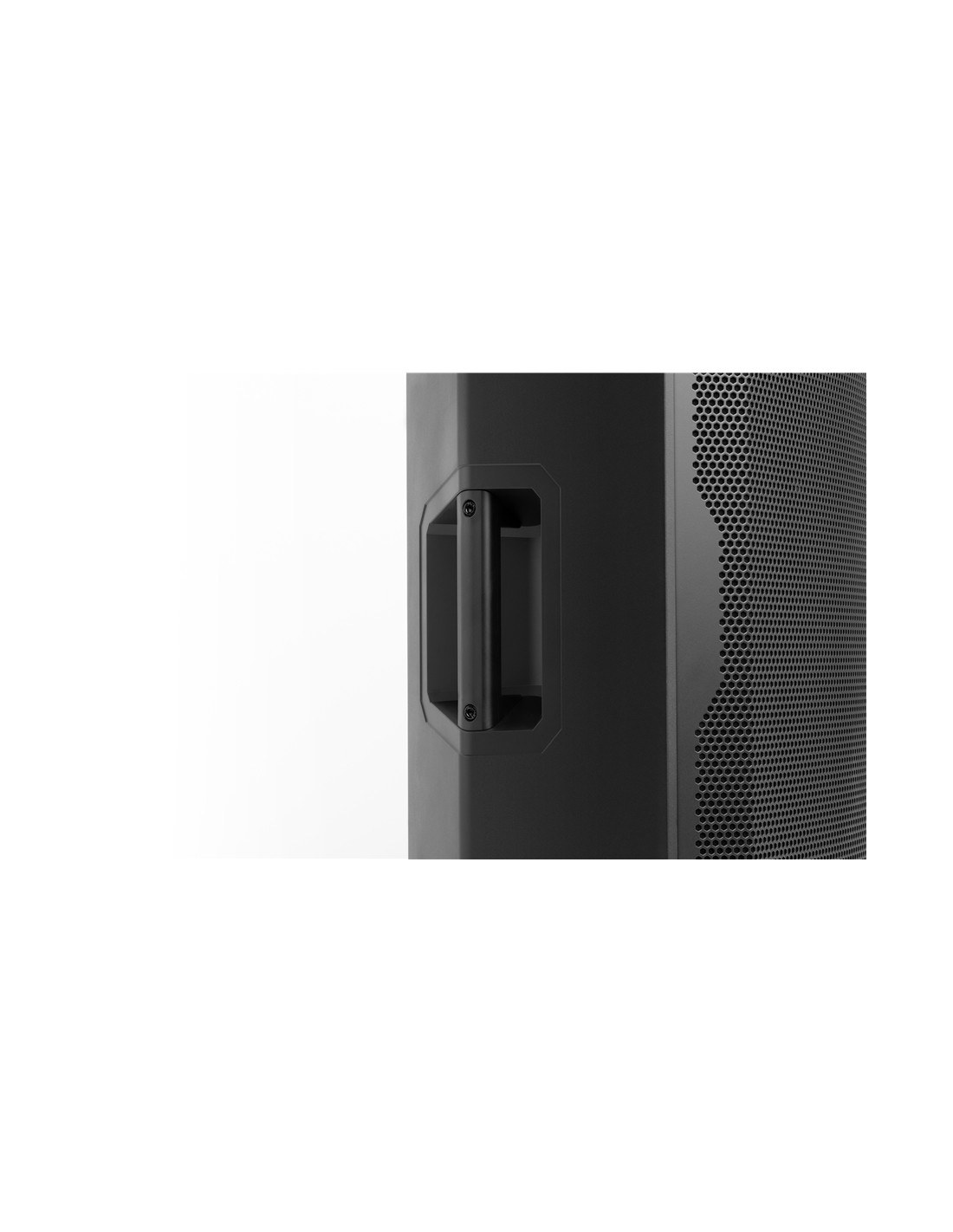

Perforated metal front protective grille
Installation: 36mm hole for stand, M10 holes, floor
Power connector: IEC
220-240V fuse: T6.3AL AC250V
Consumption 1100W
Dimensions and weight: 606.5x353.5x350.5mm; 15KG

LED indicators:

1 for Signal/Limit/Clip:

(Green = Ch1/2 signal present)

(Yellow = Ch1/2 Limiter)

(Red = Ch1/2 Output Clipped)
- 1 Bluetooth (Blue)

- 1 Link LED (Orange)

- 4 DSP Presets (Green)

- 3 HPF (Green)
