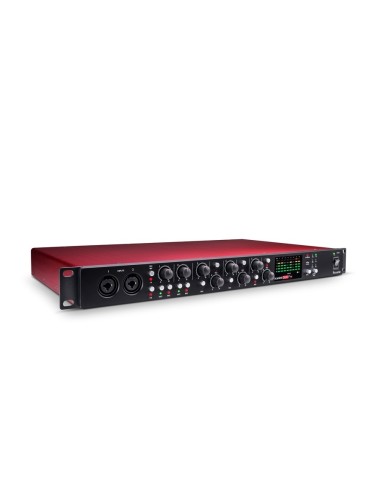

Focusrite Scarlett OctoPre

Scarlett OctoPre is an 8-channel ADAT analogue-to-digital converter and preamplifier featuring Focusrite ’s second-generation Scarlett preamps. In addition to its eight input channels, Scarlett OctoPre includes eight direct line outputs that can be used, for example, directly to a stage mixer for live performance or in a rehearsal room, or as a standalone analogue microphone preamp.
The Focusrite Scarlett OctoPre is ideal for expanding any quality multi-channel DAW recording system, adding eight analogue inputs to your ADAT-equipped audio interface, mixer or card. With high-headroom mic, line and instrument inputs, it's perfect for recording drums, guitars, keyboards, vintage analogue synths, vocals and more.

3-year warranty on all new Focusrite products purchased from 1 January 2018 onwards. The Focusrite Warranty is synonymous with peace of mind for the user, represents a professional service, which minimizes waiting times in the event of a manufacturing defect, and confirms that the products of the English company are built respecting high quality standards.

The Scarlett family’s mic preamp delivers natural sound and plenty of gain, so you can set levels accurately and record vocals without compromising on quality. The newly designed Instrument (HiZ) inputs let you effortlessly and faithfully record any type of guitar, even those with very powerful pickups. Redesigned for competitive sensitivity, it enhances the sound of any guitar or bass, faithfully reproducing its dynamics and frequency content. The latest-generation converters built into Scarlett Octopre enable recording at a sampling frequency of up to 192 kHz and a bit rate of 24 bit.

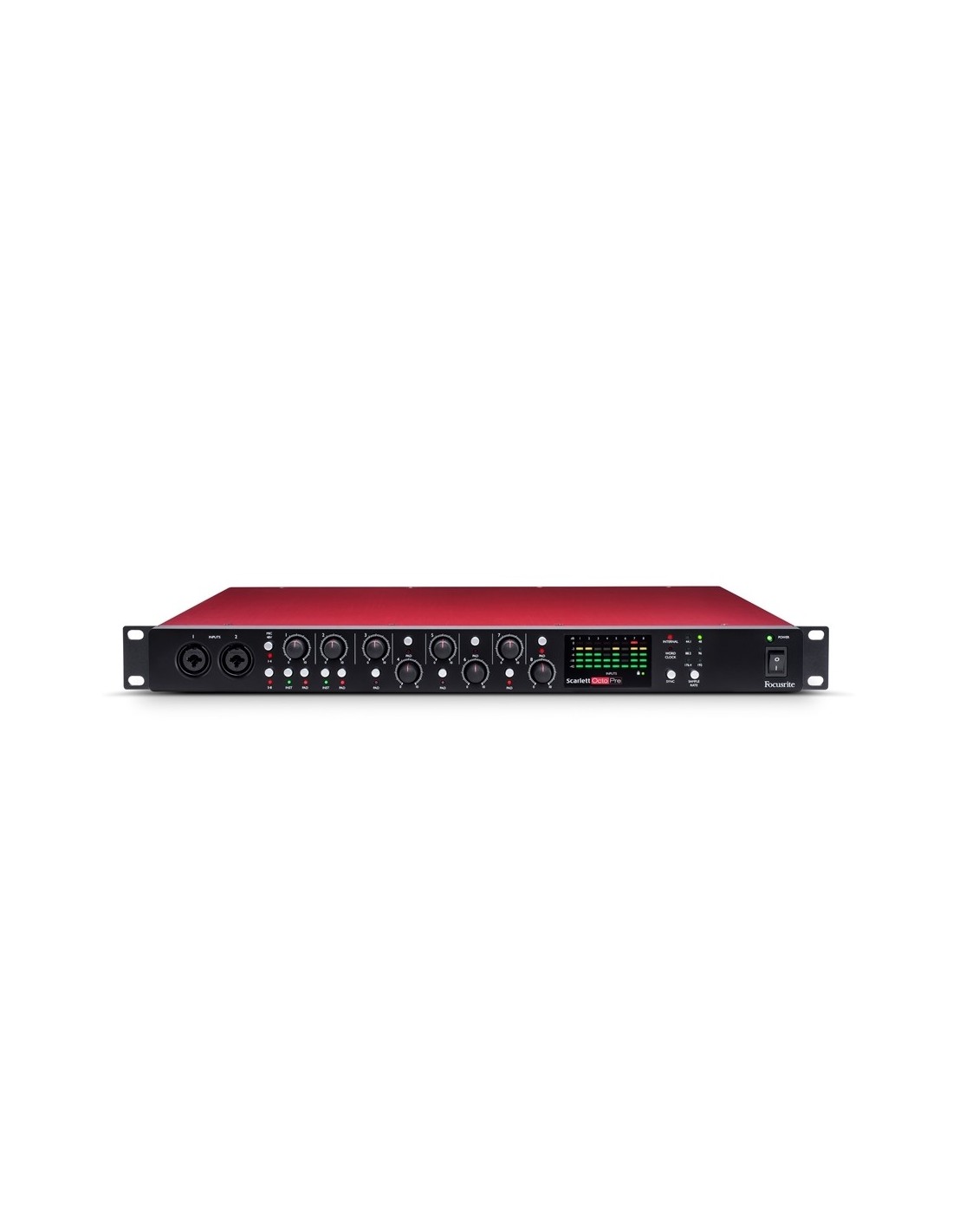

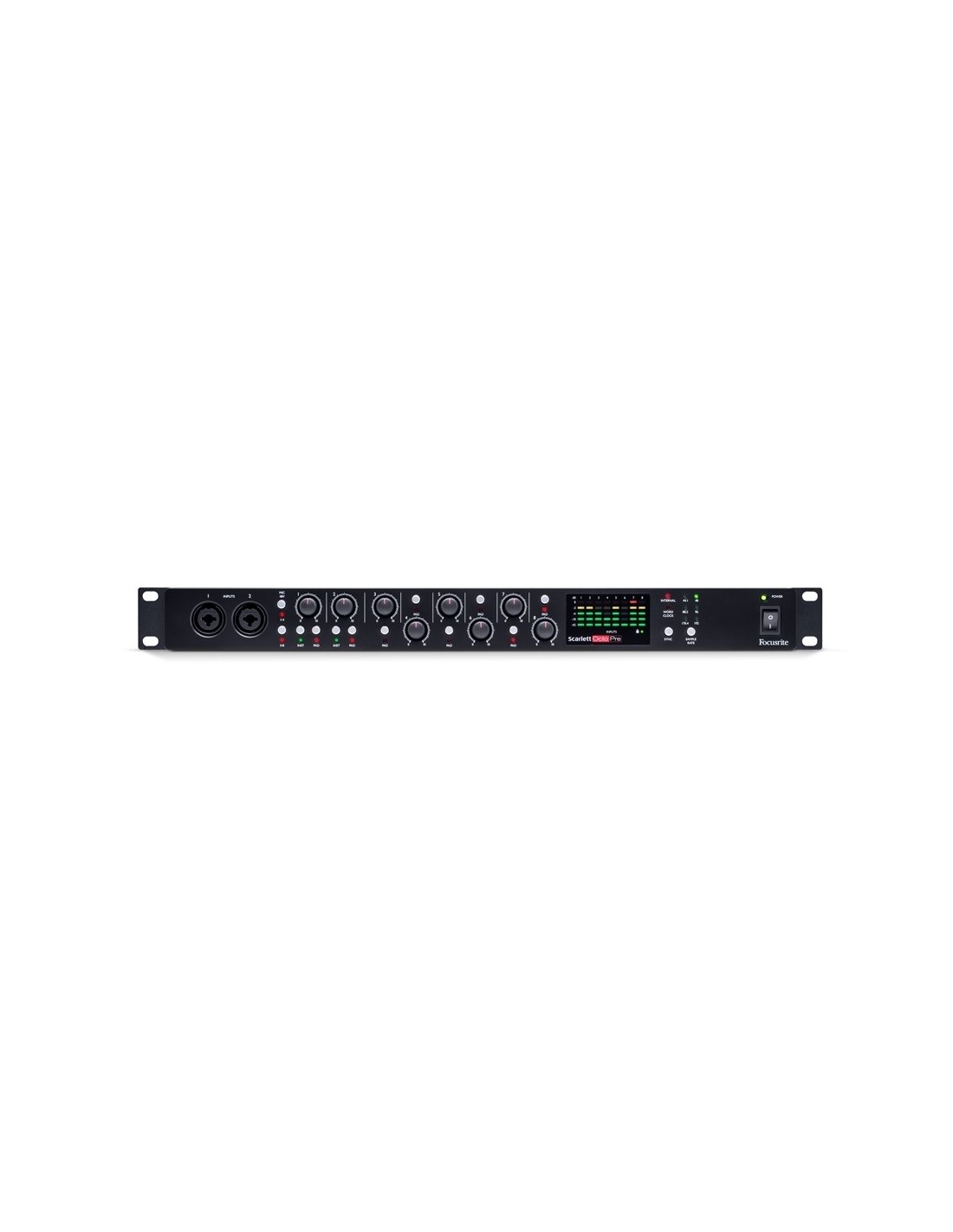

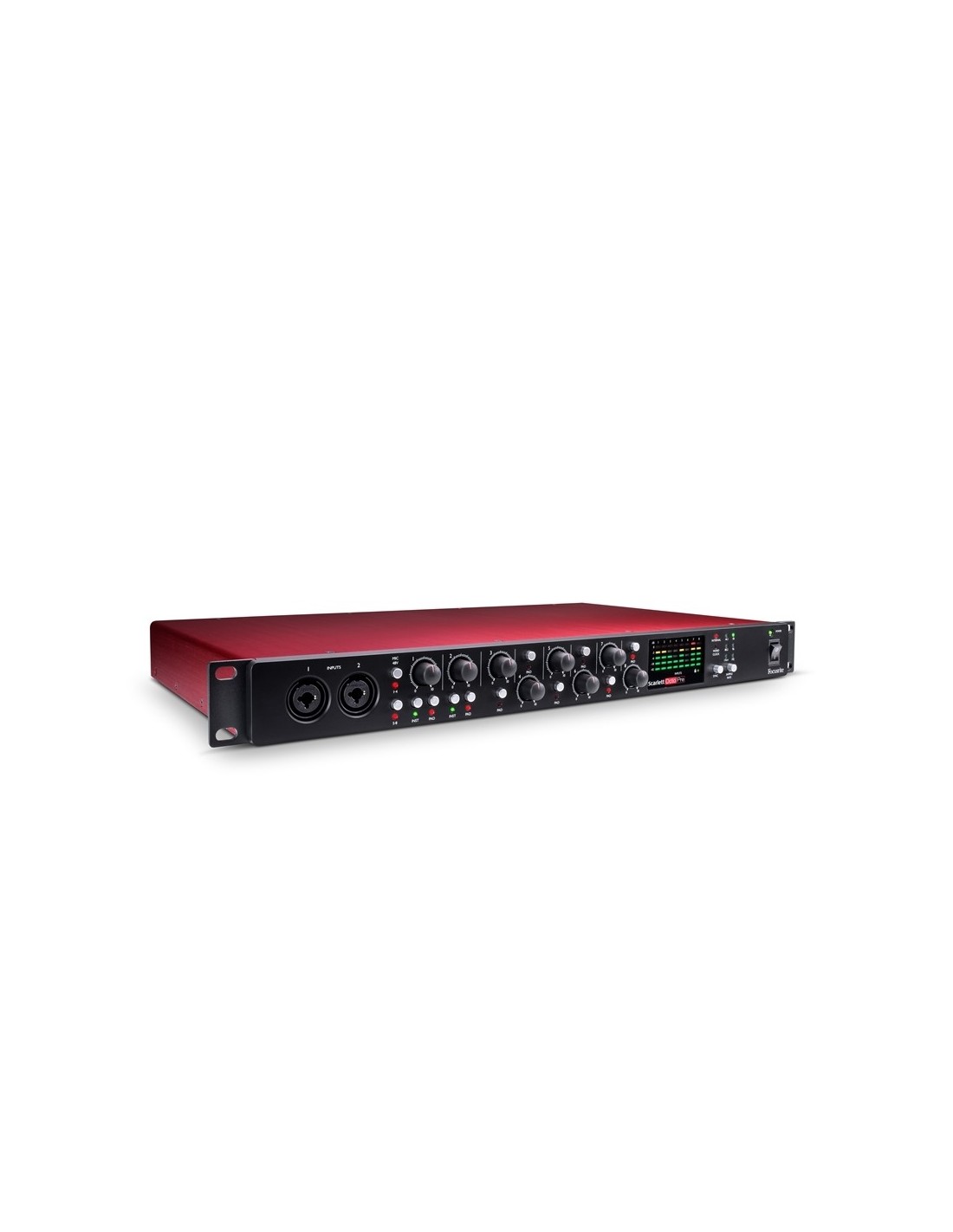

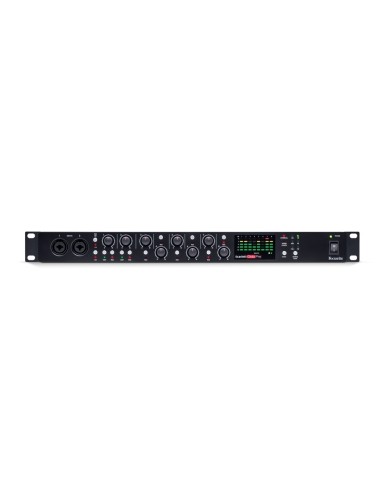

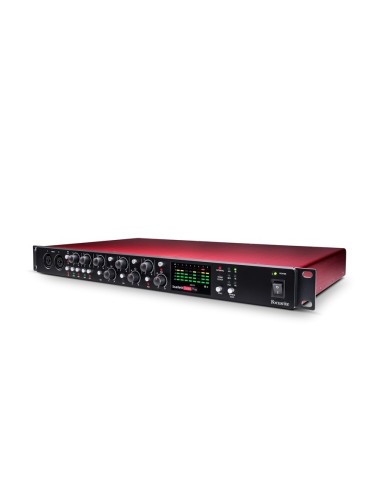

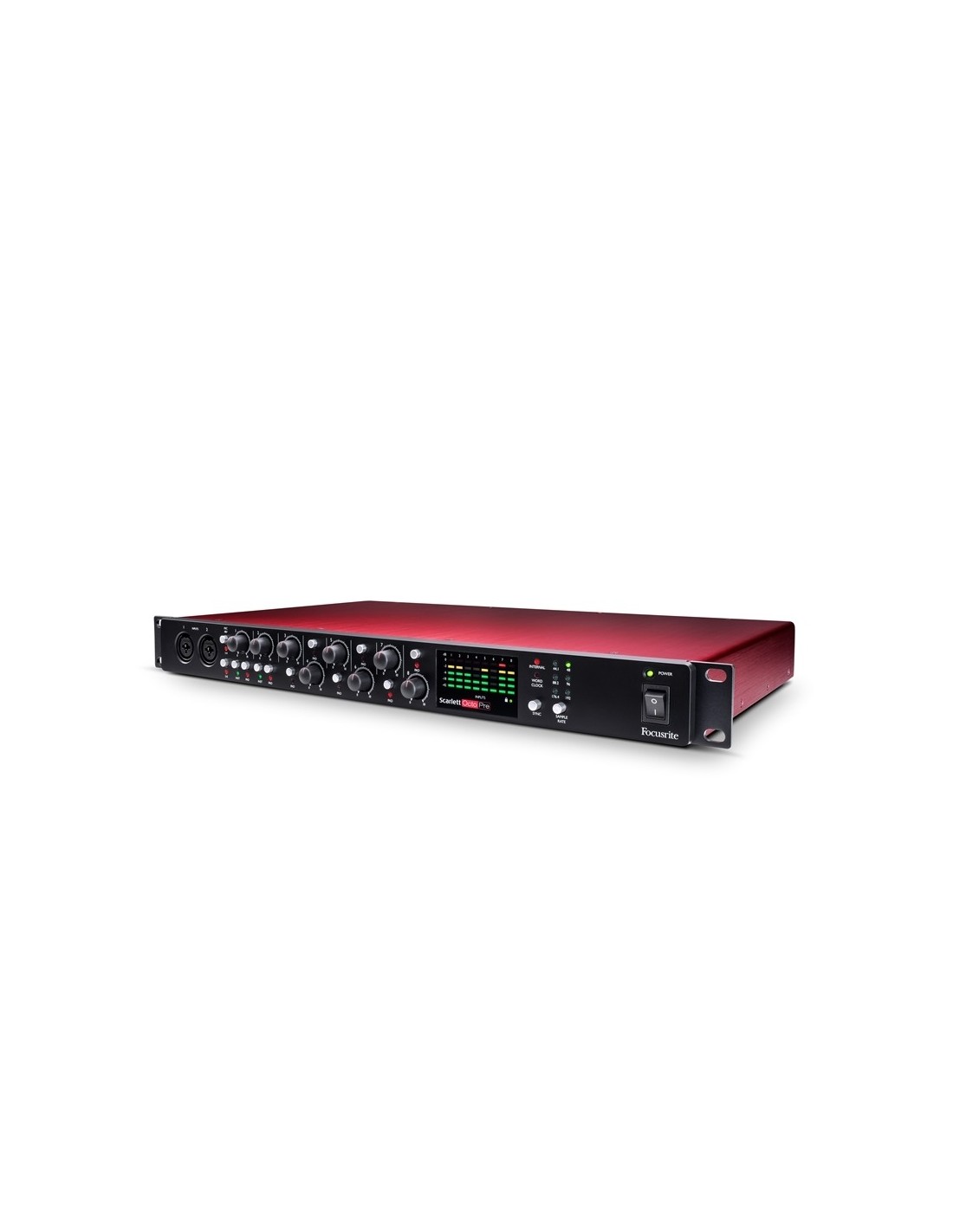

Scarlett OctoPre Front Panel:

Two Combo inputs (XLR Mic; Jack Line)
48V switch for inputs 1 to 4 and 5 to 8
Gain potentiometer for the 8 analog inputs
INST selectors for inputs 1 and 2
Pad button on each input
LED monitor for input metering
Internal or external word clock selector
Sample rate selector

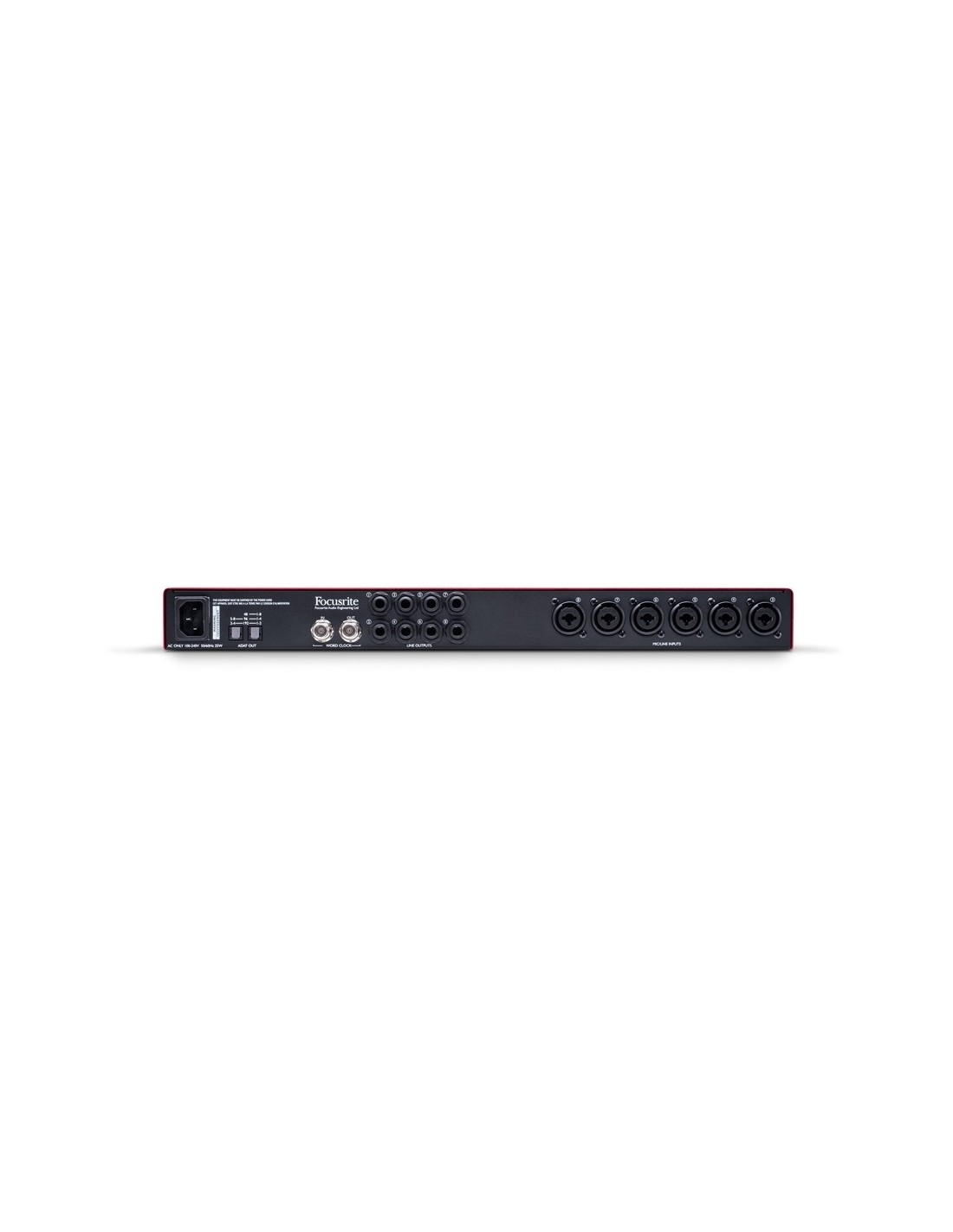

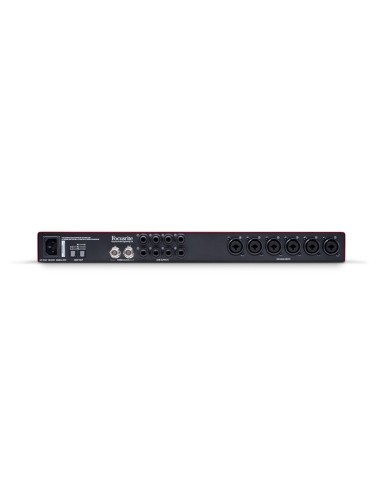

Scarlett OctoPre Rear Panel:

Six Combo Inputs (XLR Mic; Jack Line)
8 Jack TRS direct out outputs (receive from analog inputs)
2 ADAT TOSLINK Optical Outputs (8 channels at 96 kHz, 4 channels at 192 kHz).
BNC connectors for WORD CLOCK IN and OUT

Scarlett Octopre Features:

8 x 2nd generation Scarlett mic preamps
8 balanced line inputs
First two configurable Hi-Z (Instrument) inputs
Focusrite AD/DA conversion accuracy
Supported Sample Rates: 1, 48, 88.2, 96, 176.4, 192 kHz
3 years manufacturer's warranty
Optimized headroom ideal for high volume sources, such as drums
8 balanced line outputs – for direct out of input signals
5-segment LED meter on each channel
Simple ADAT connectivity via optical cables with TOSLINK connectors
48V Phantom Power on each channel for condenser microphones
I/O Word Clock for synchronization with external devices

Scarlett Octopre Microphone Input Specifications:

Frequency response: 20 Hz - 20 kHz +0.5/-1.5 dB
Dynamic Range: 109 dB (A-Weighted)
THD+N: Noise EIN: -127 dBu
Maximum input level (without pad): +8 dBu
Maximum input level (with pad): +16 dBu
Gain Range: 50dB
Input impedance: 3 kΩ

Scarlett Octopre Line Input Specifications:

Frequency response: 20 Hz - 20 kHz +0.5/-1.5 dB
Dynamic Range: 109 dB (A-Weighted)
THD+N: Maximum input level: + 22 dBu
Gain Range: 50dB
Input impedance: 49 kΩ

Scarlett Octopre Instrument Input Specifications:

Frequency response: 20 Hz - 20 kHz +0.5/-1.5 dB
Dynamic Range: 108 dB (A-Weighted)
THD+N: Maximum input level: +13 dB
Gain Range: 50dB
Input impedance: 1MΩ

Scarlett Octopre Line Output Specifications:

Maximum Output Level (0 dBFS): +16 dBu @ 0 dBFS; >21 dBu when not using ADAT
THD+N: Output impedance: 136 Ω (balanced) for units with serial number W860083007515 and later
576 Ω (balanced) for units with serial number prior to W860083007515.
