Fishman AFX Mini: the mini-sized pedals designed specifically for the acoustic guitarist.

Designed specifically for acoustic guitars, Fishman AFX Mini Acoustic Pedals let you explore new textures, rhythms, and sonic spaces without sacrificing your tone. Whether you're a beginner or an experienced player, experience the acoustic-focused design of Fishman AFX Mini Pedals and unlock the full potential of your acoustic sound.

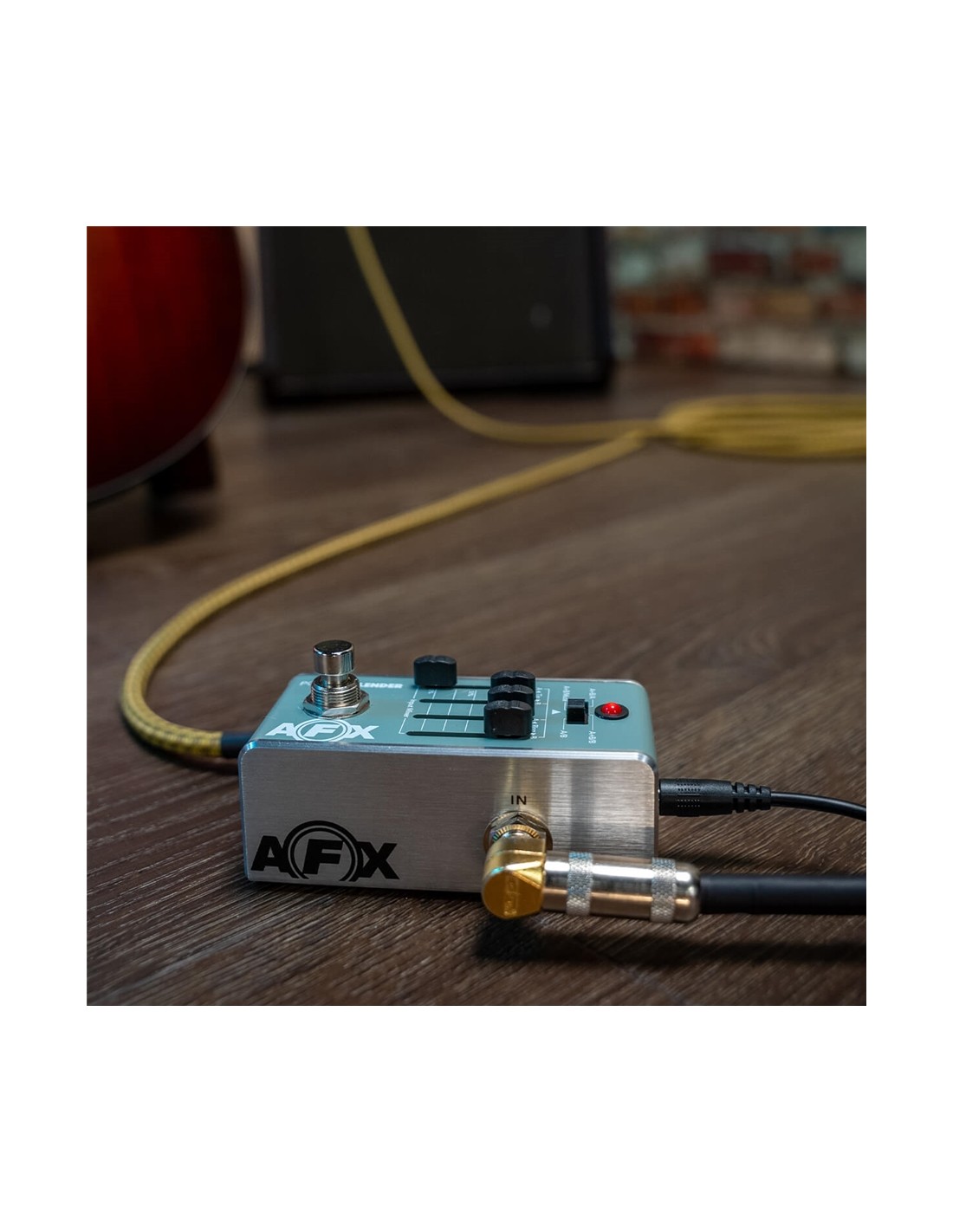

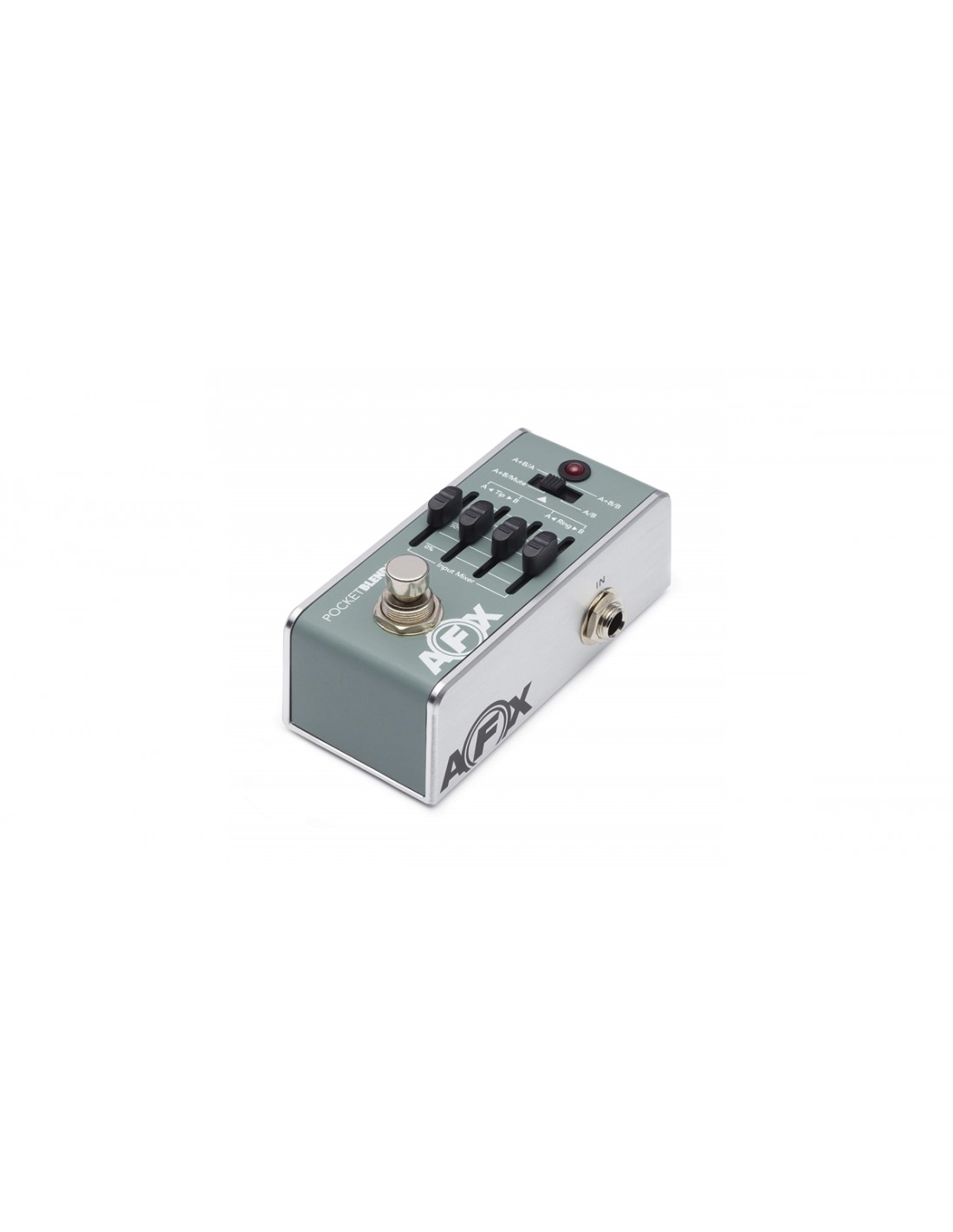

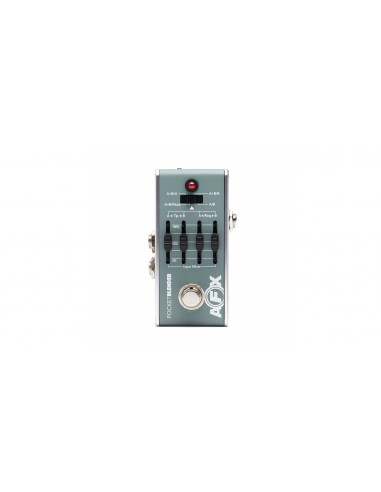

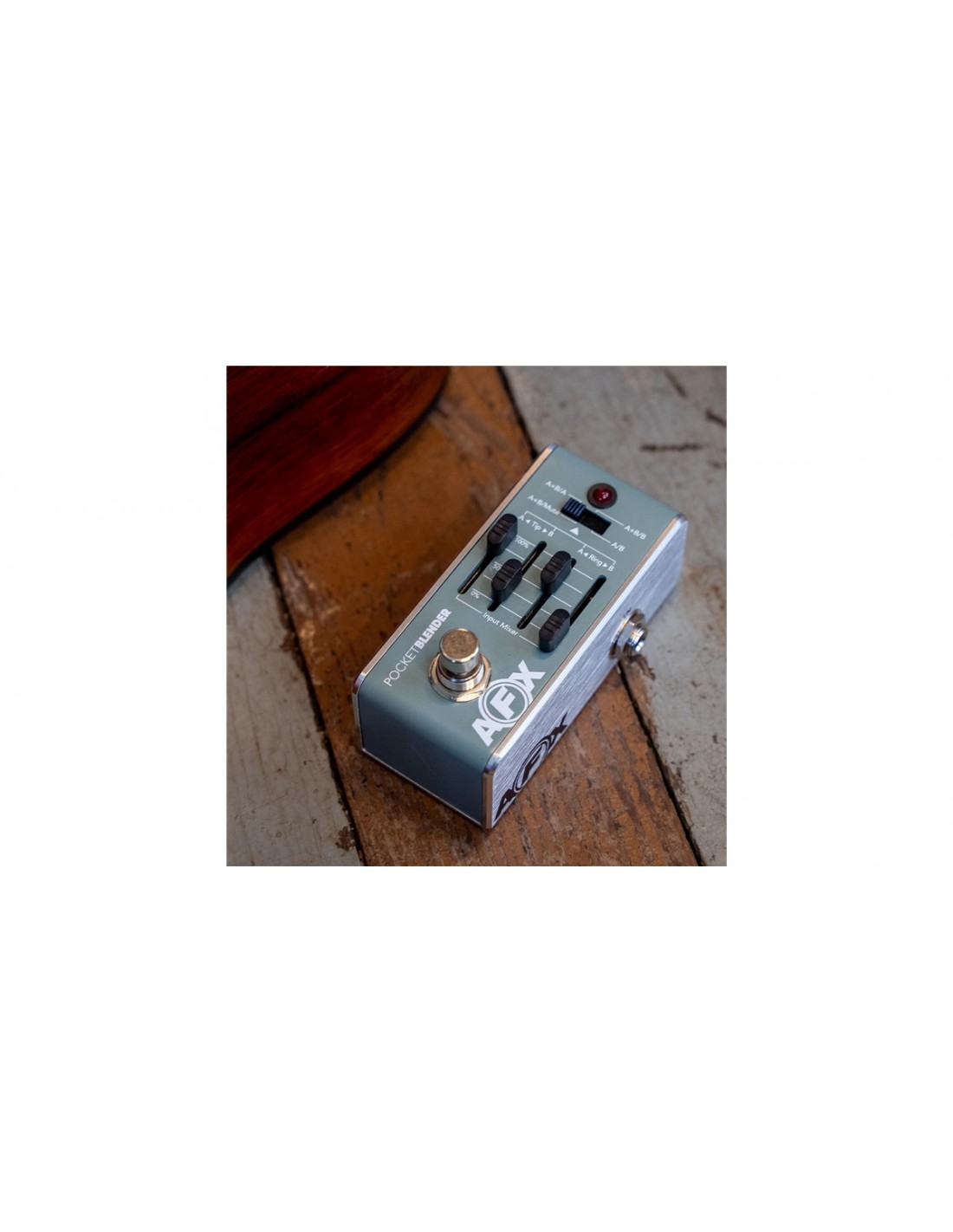

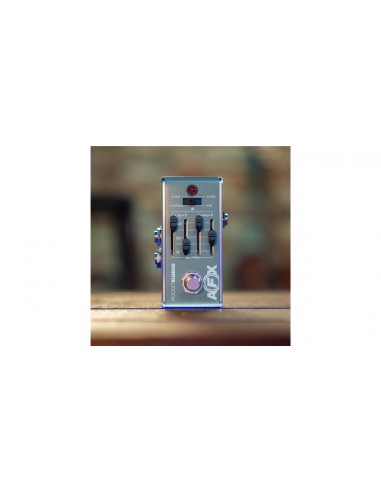

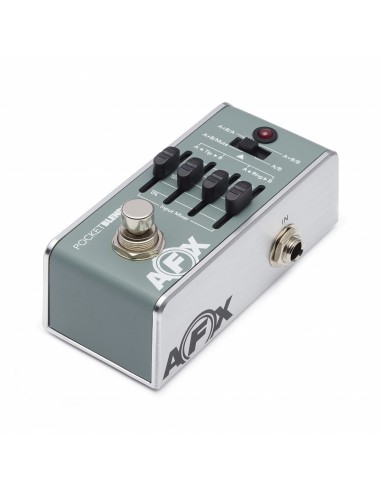

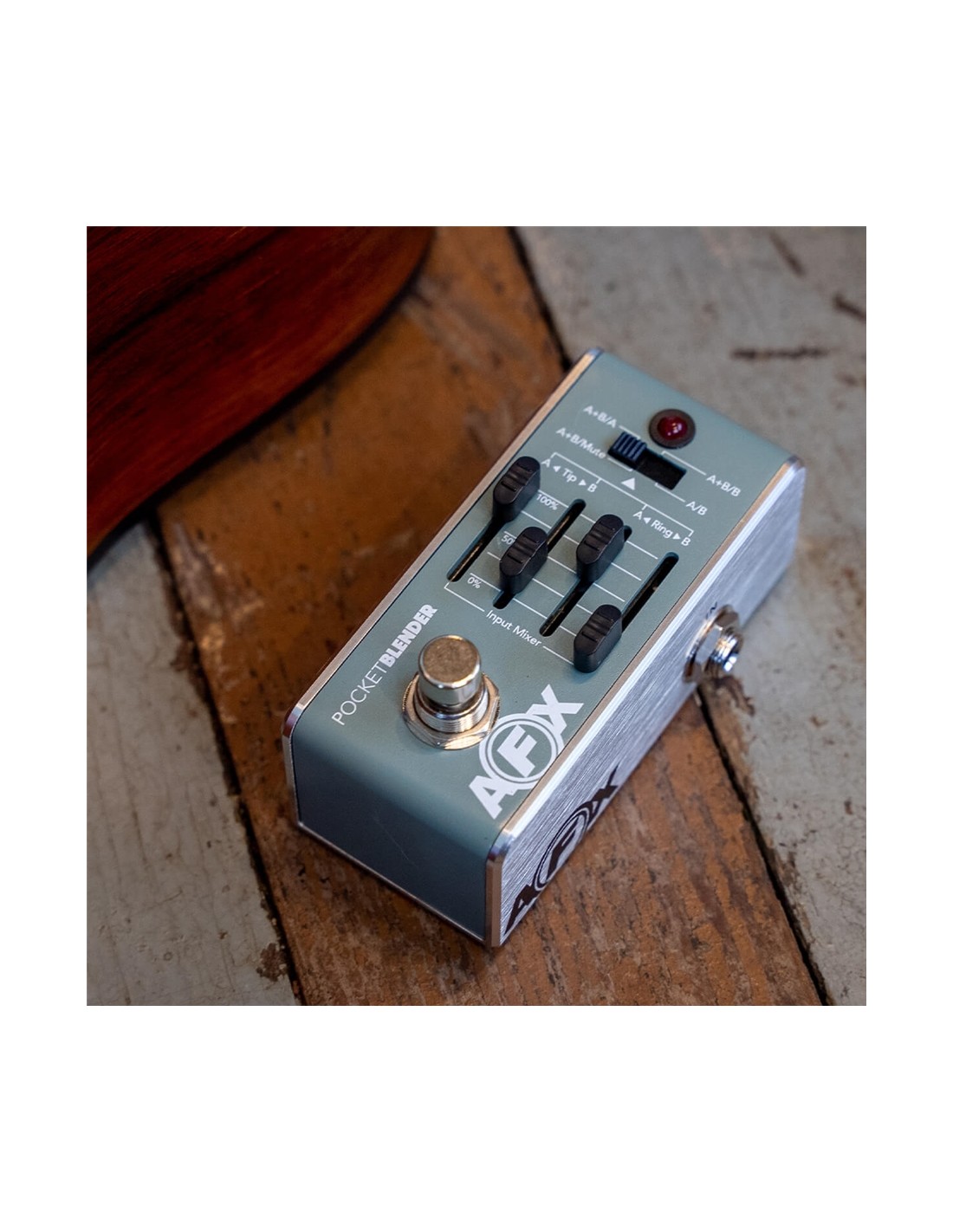

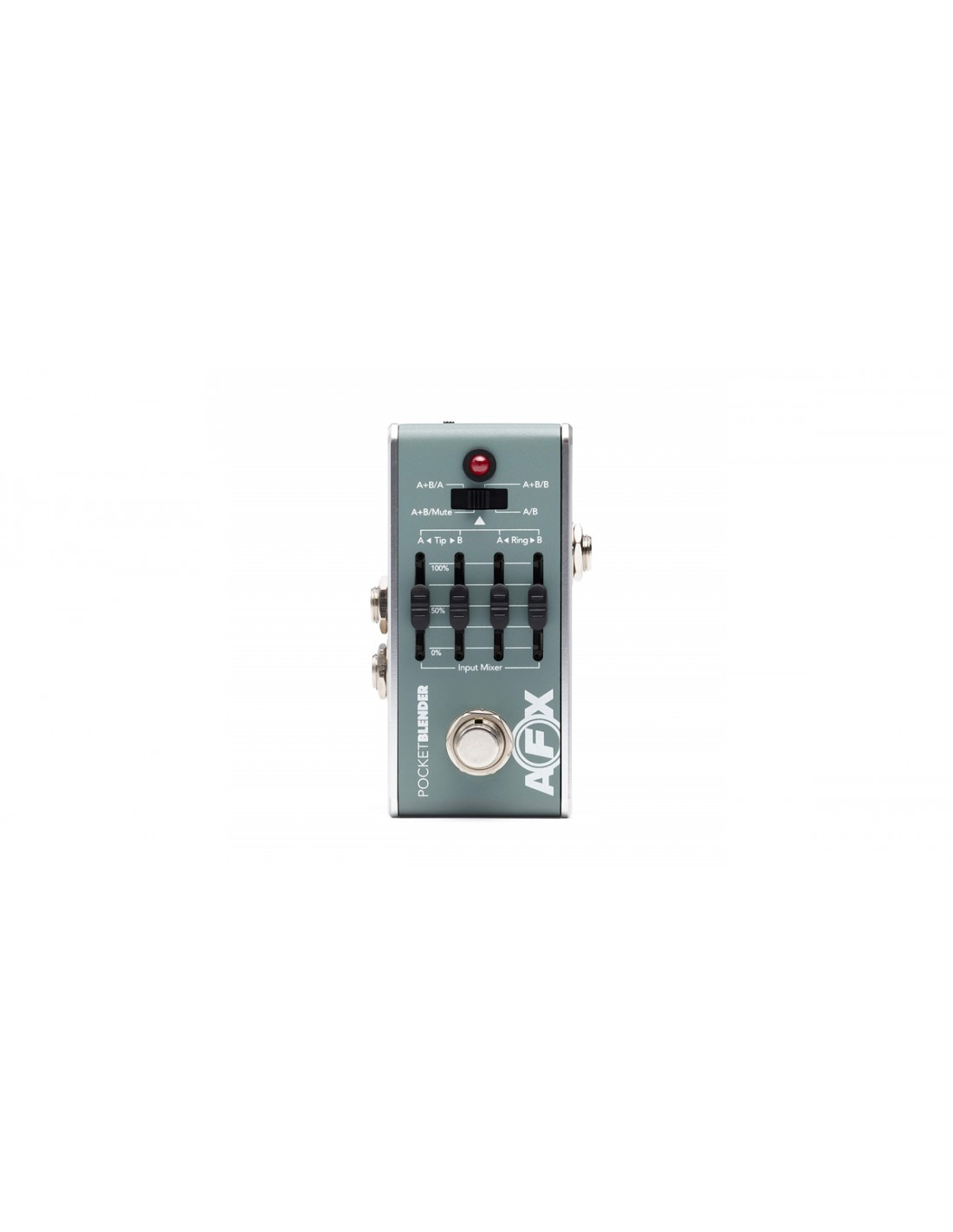

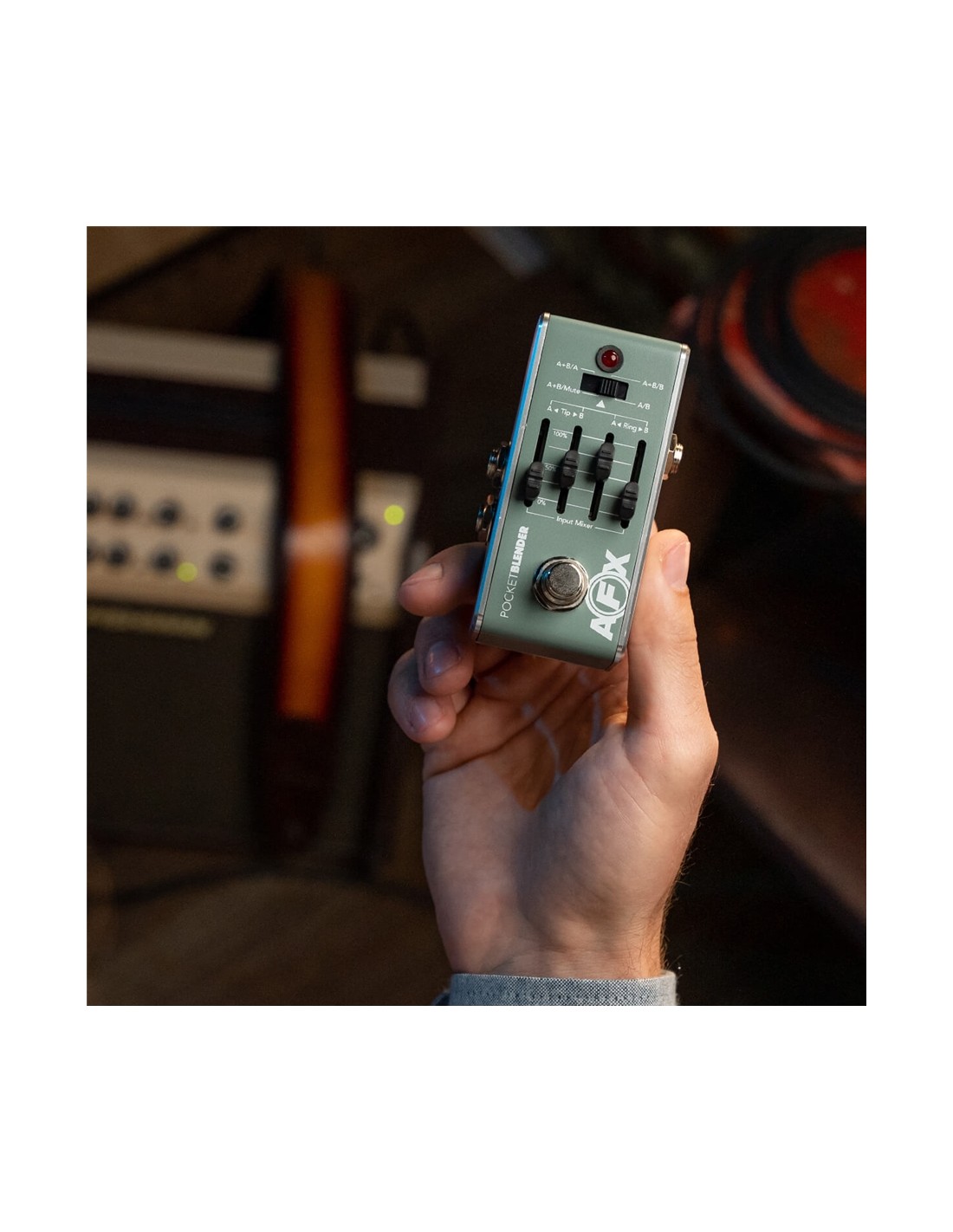

Fishman AFX Pocket Blender Mini A/B/Y + DI Acoustic Guitar Pedal

Characteristics

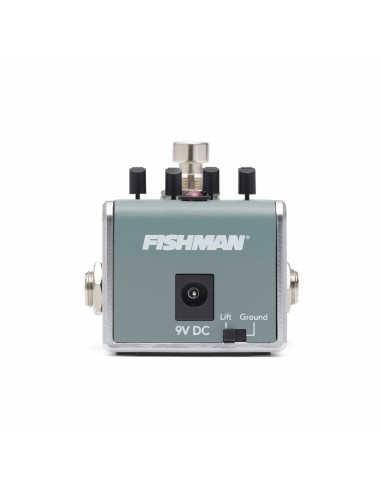

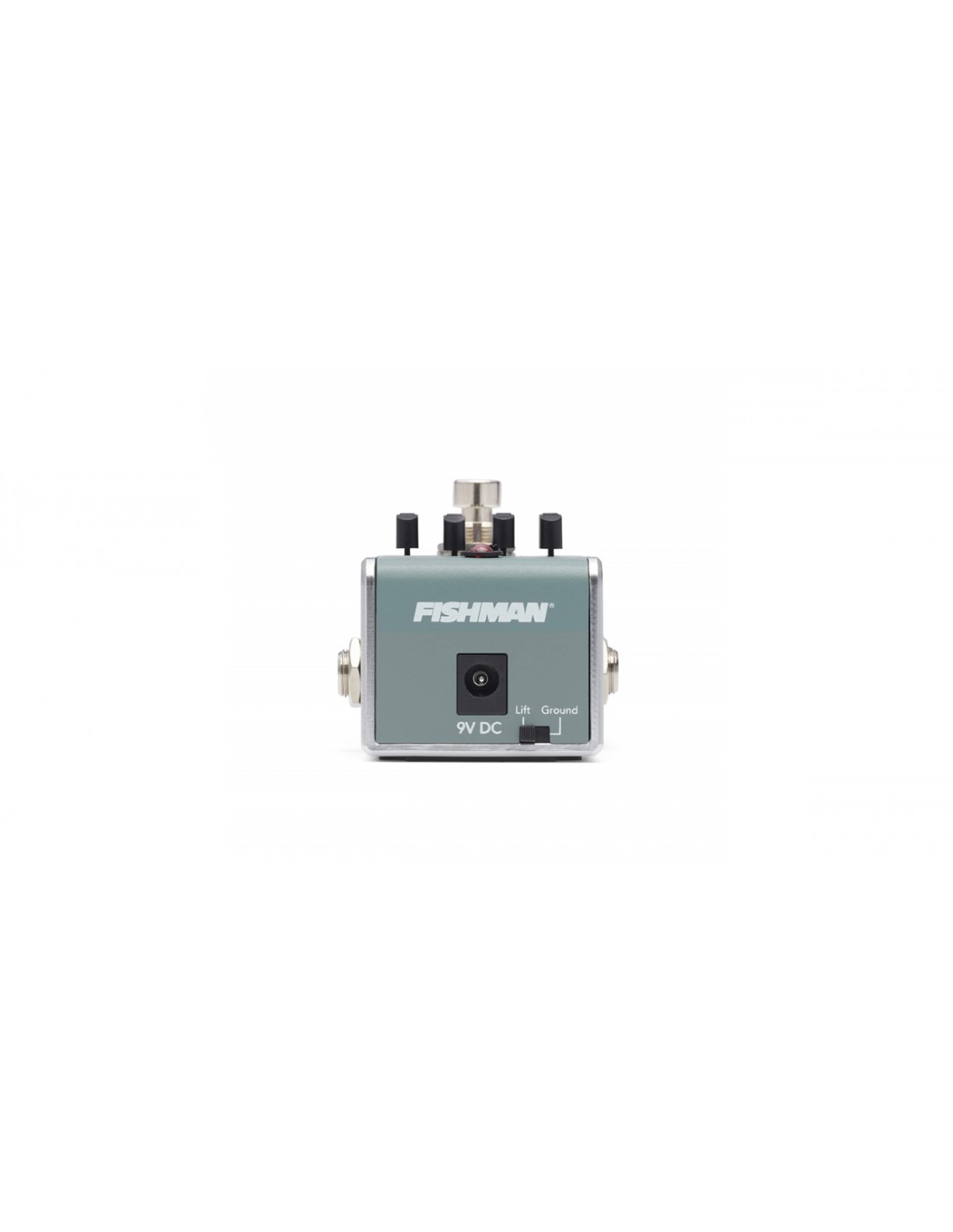

Balanced DI Output with Ground Lift

Innovative dual-path routing

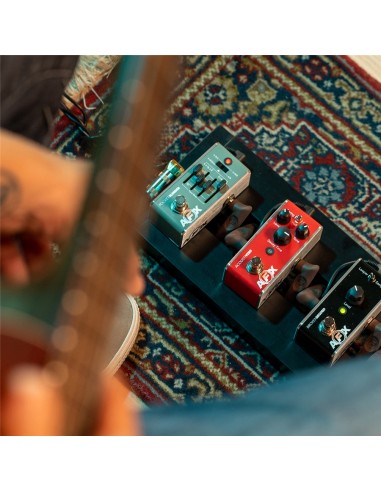

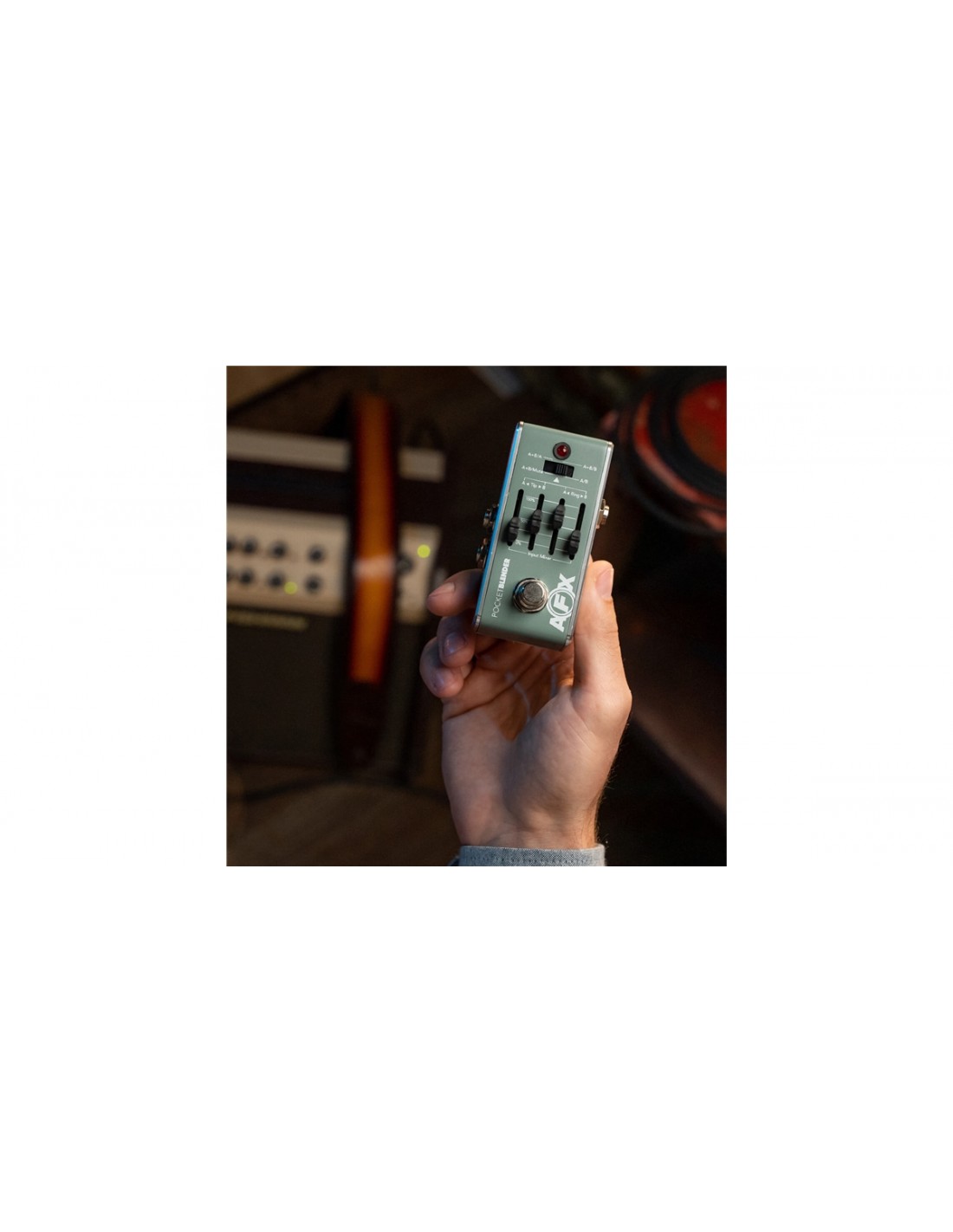

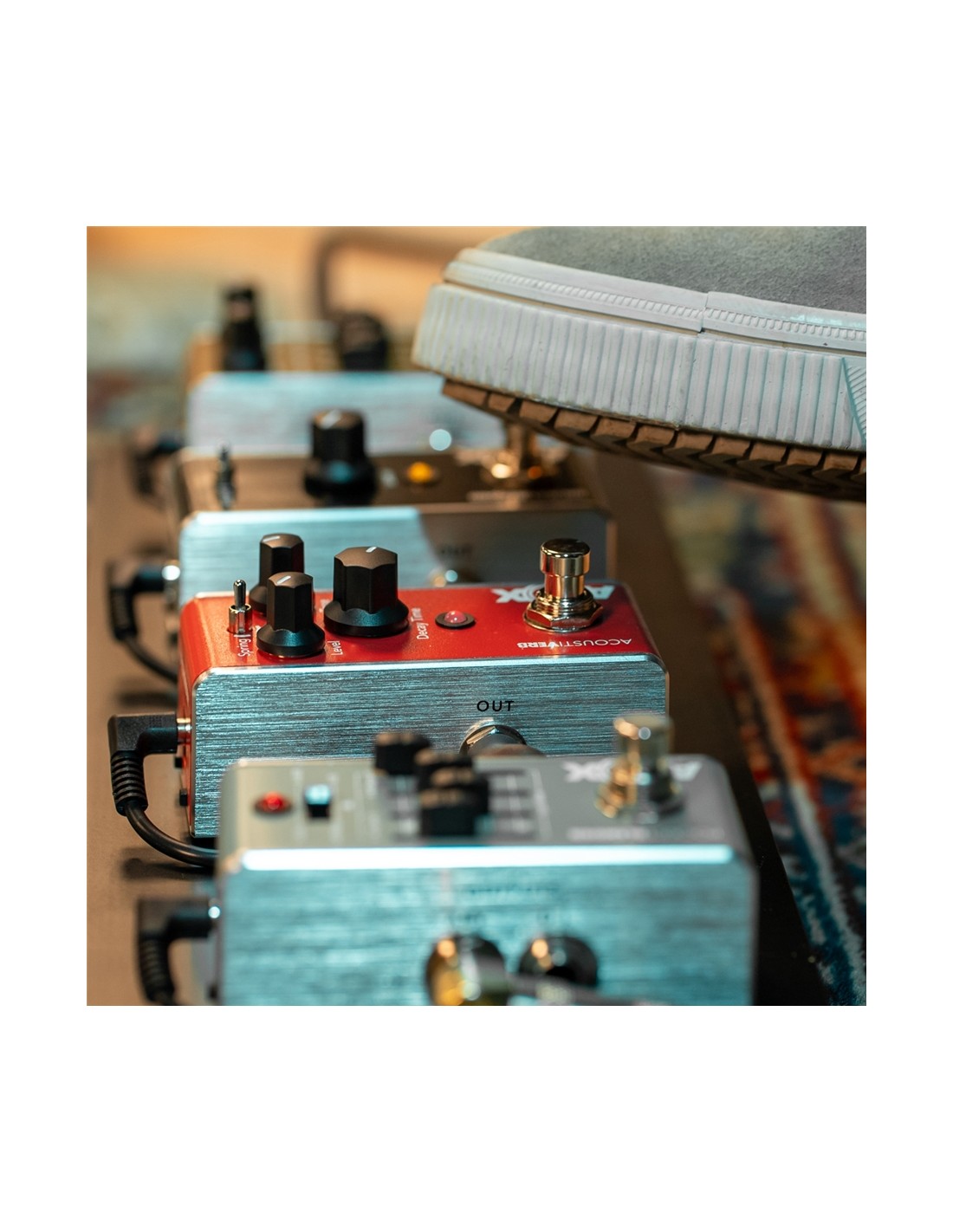

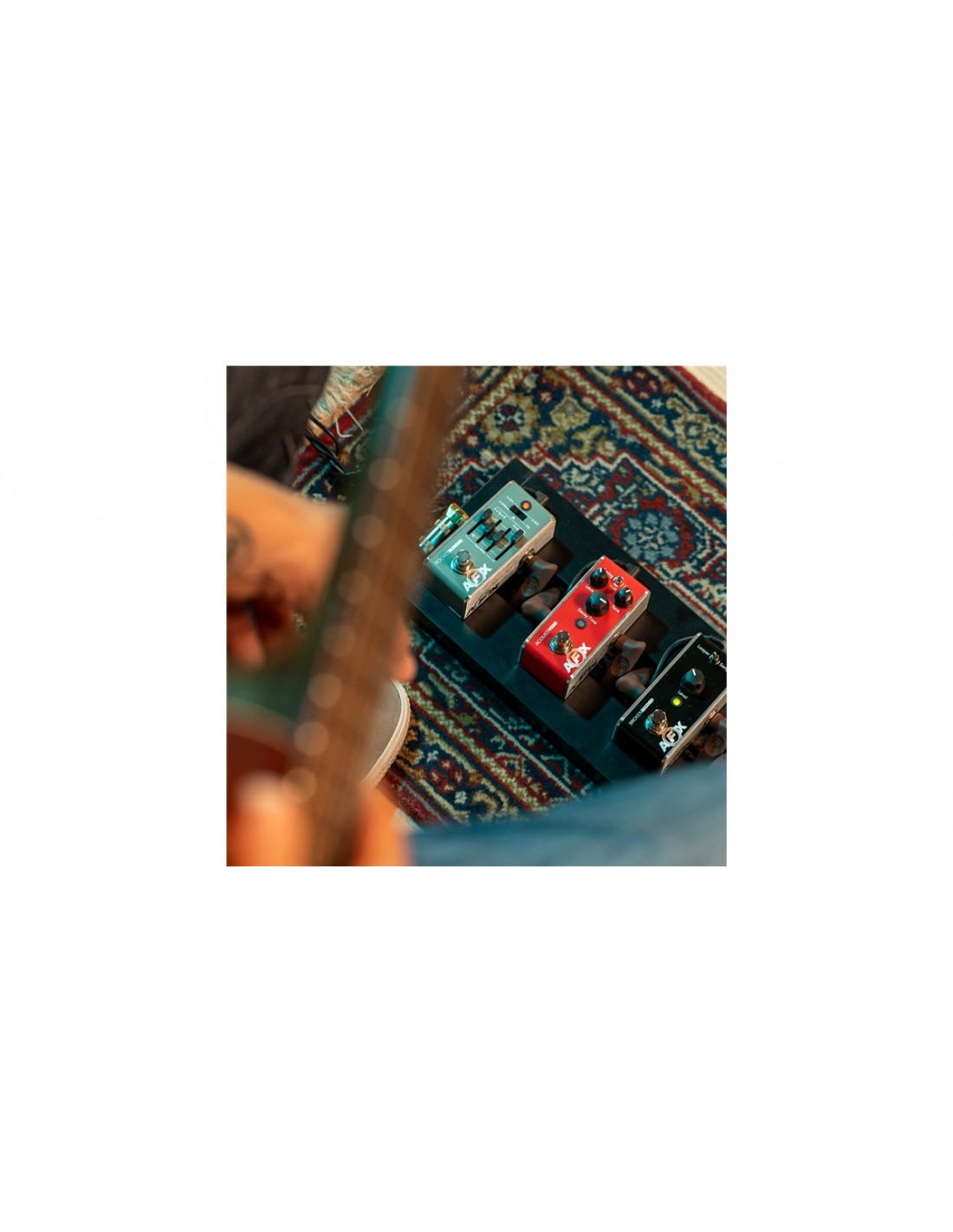

Super compact design to fit on any pedalboard

External 9V power supply required (power supply not included)

All the essential tools in one ultra-compact pedal.

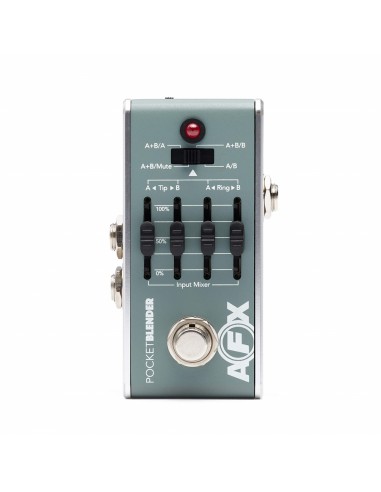

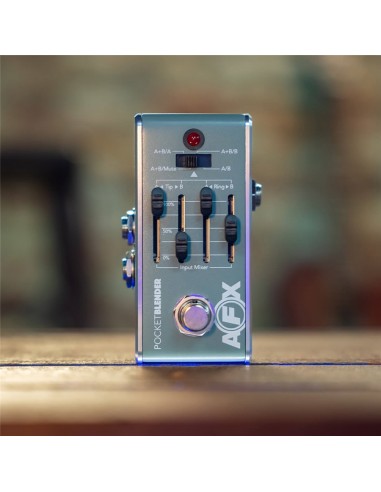

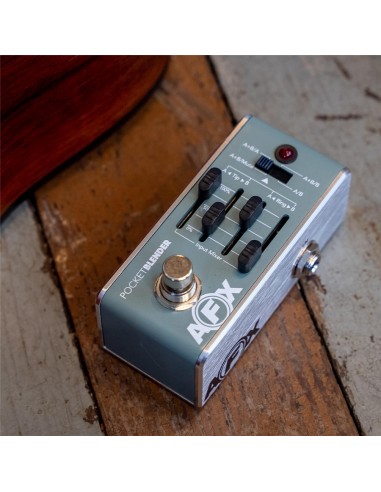

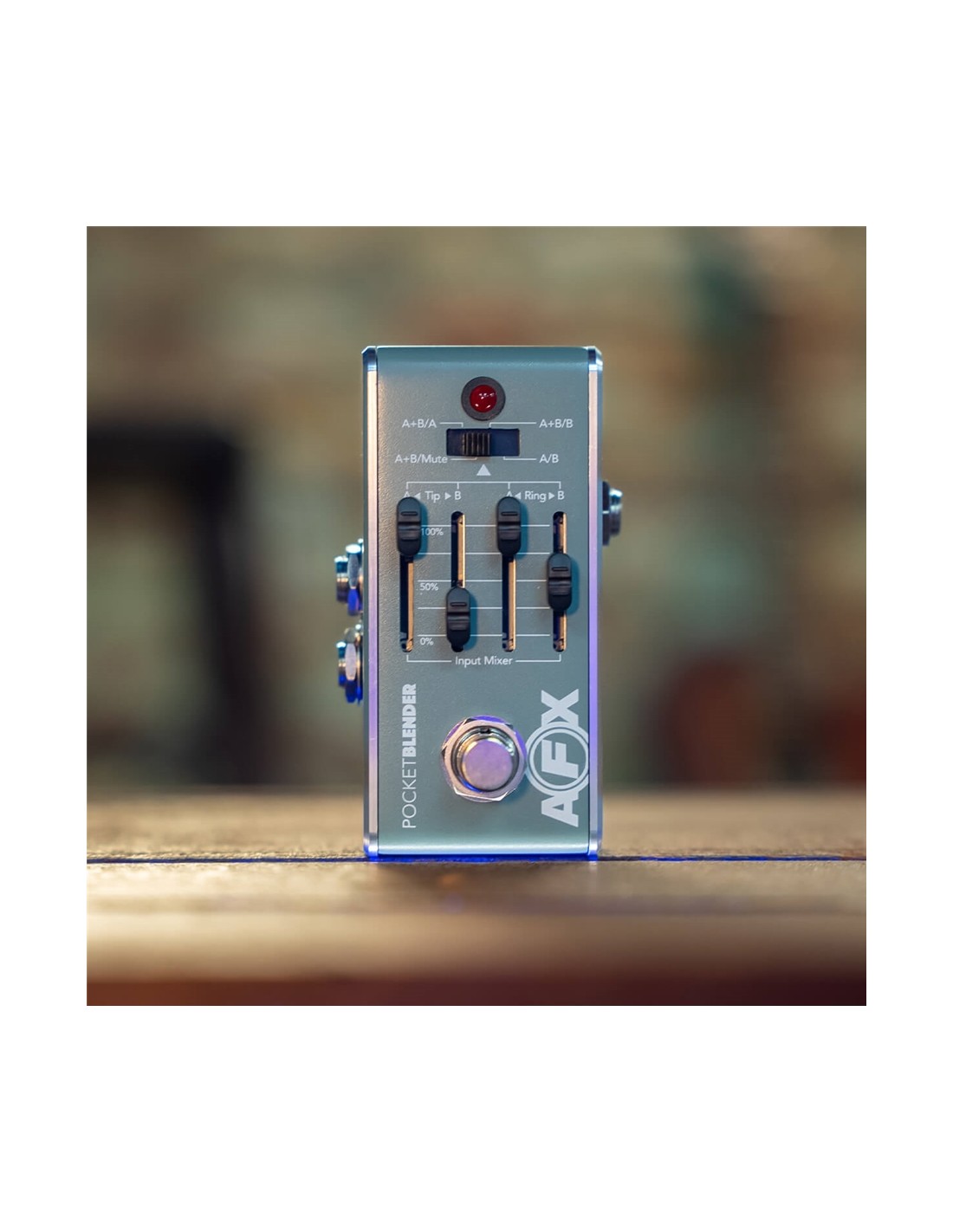

An A/B footswitch with adjustable level. A built-in DI output with ground lift. A boost pedal. An output Y-splitter. A two-channel mixer. The AFX Pocket Blender is the ultimate A/B/Y pedal that combines four essential tools: an input mixer that lets you continuously adjust the level of audio sources connected to the TRS input, a DI output featuring Fishman ’s balanced line driver circuitry that can be used to send to a PA system or home amplifier, an ABY output for splitting a signal or connecting to one or two stage amplifiers, and an A/B mode switch that determines the overall behavior when the footswitch is pressed.

This is the classic pocket mixer with a small footprint.

Without even touching on the A/B functionality, it is a two-channel mini-mixer that allows you to connect two audio sources and blend them together. This is perfect for dual-source systems like Fishman soundhole pickups that feature a microphone and a pickup.

Create your own on-the-fly mixer by setting up an “A mix” and a “B mix” where pressing the footswitch toggles between the two mixes. You might mix the built-in pickup (50%) with the built-in mic (50%) on mix A. Then on mix B, which you use for soloing, you might increase the pickup to 75% while leaving the mic at 50%. All with a single touch of the footswitch.

And it's not just an A/B pedal with a mixer, it's the heart of Fishman 's unique AFX Dual Path ecosystem. Using common TRS audio cables, you assign effects to the tip or ring signal paths and essentially switch between two "scenes," each with mix levels you control.

Specifications

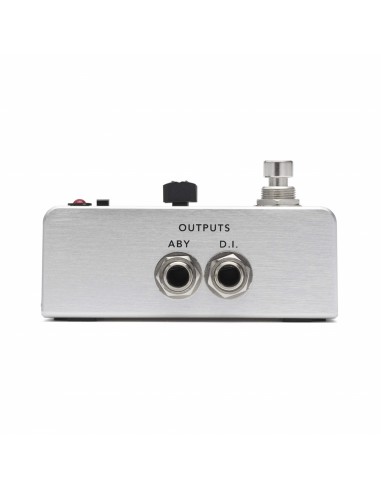

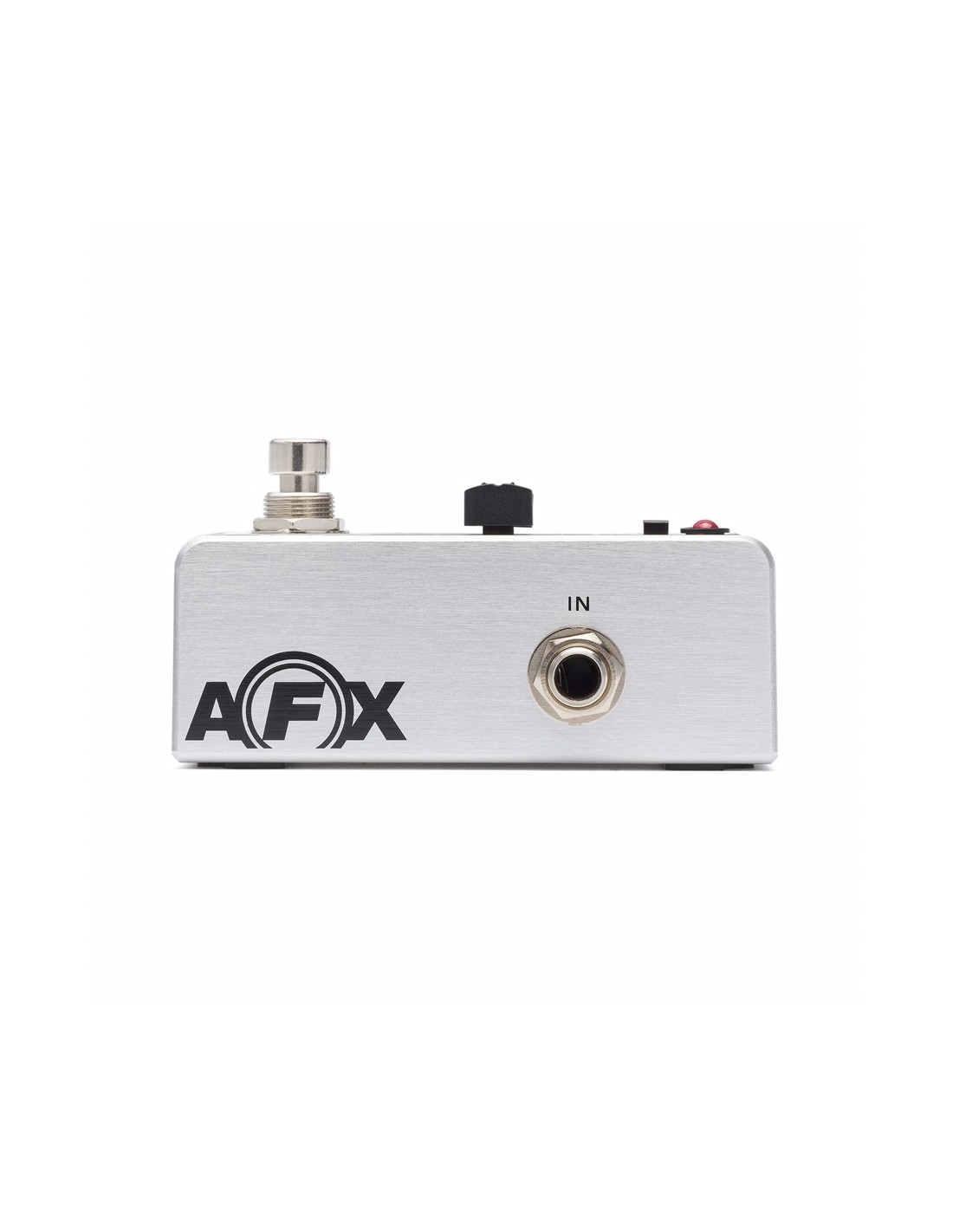

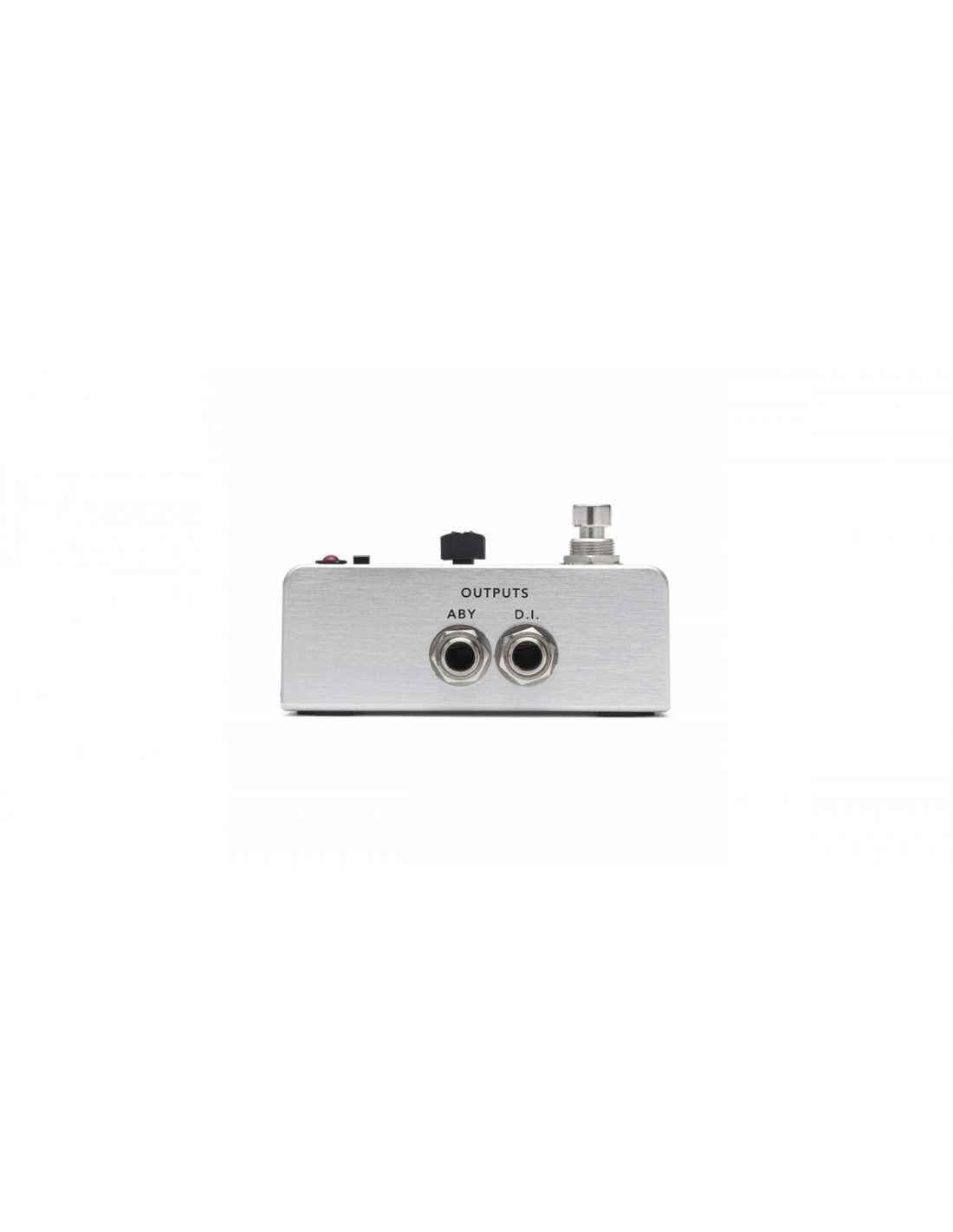

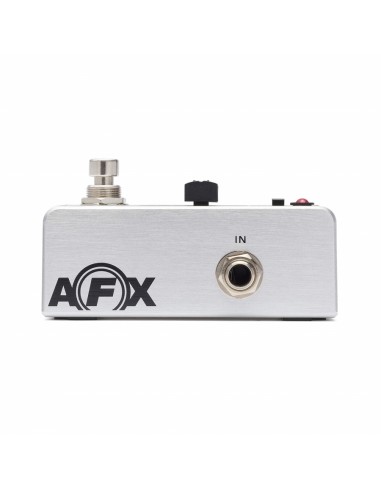

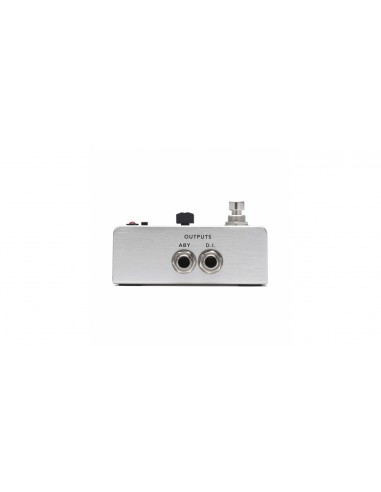

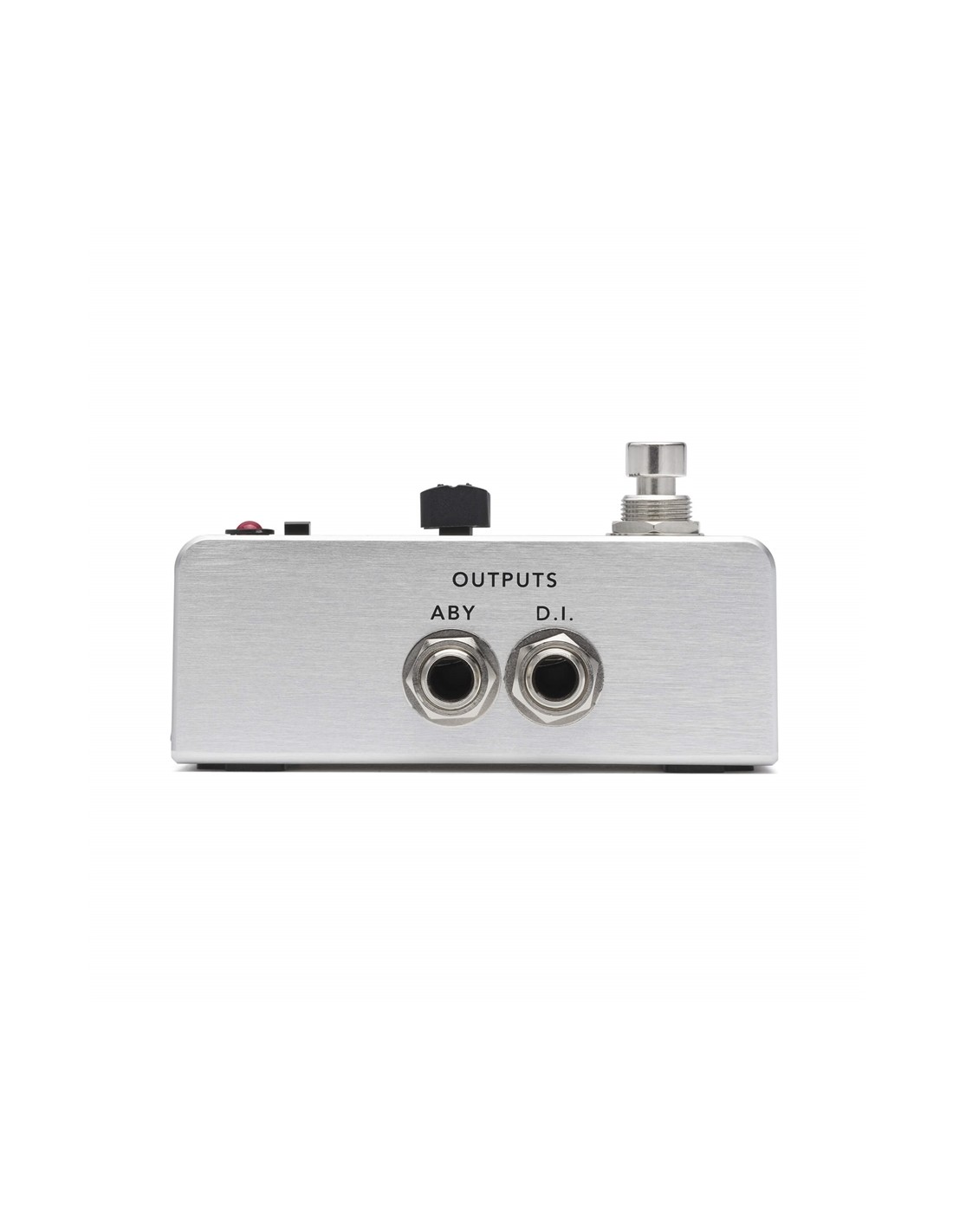

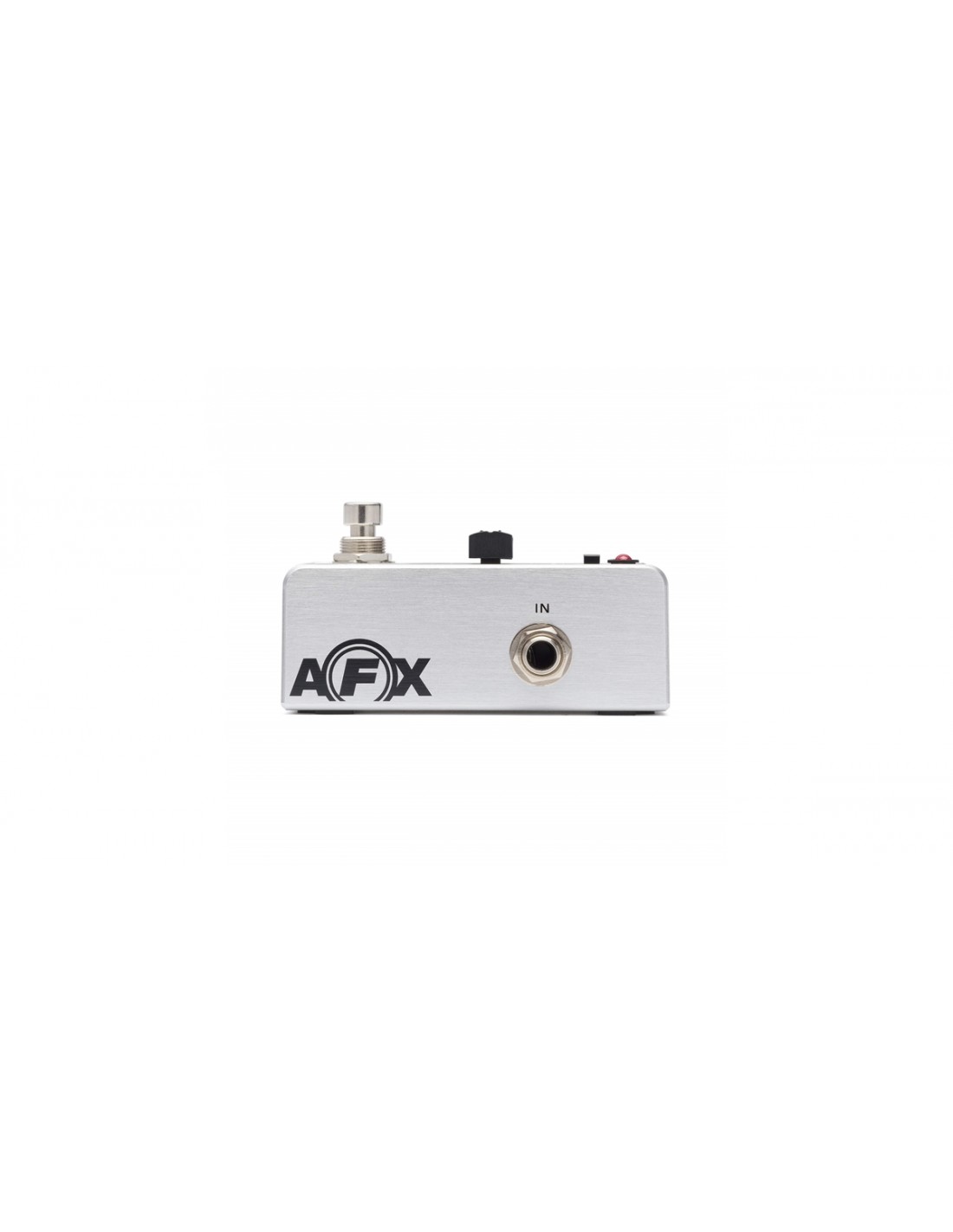

AUDIO I/O: 1/4" TRS input and outputs, 1/4" balanced DI output with ground lift

DSP: N/A (all analog)

Dimensions: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)

Material: Durable aluminum chassis

Current draw: 53mA, typical

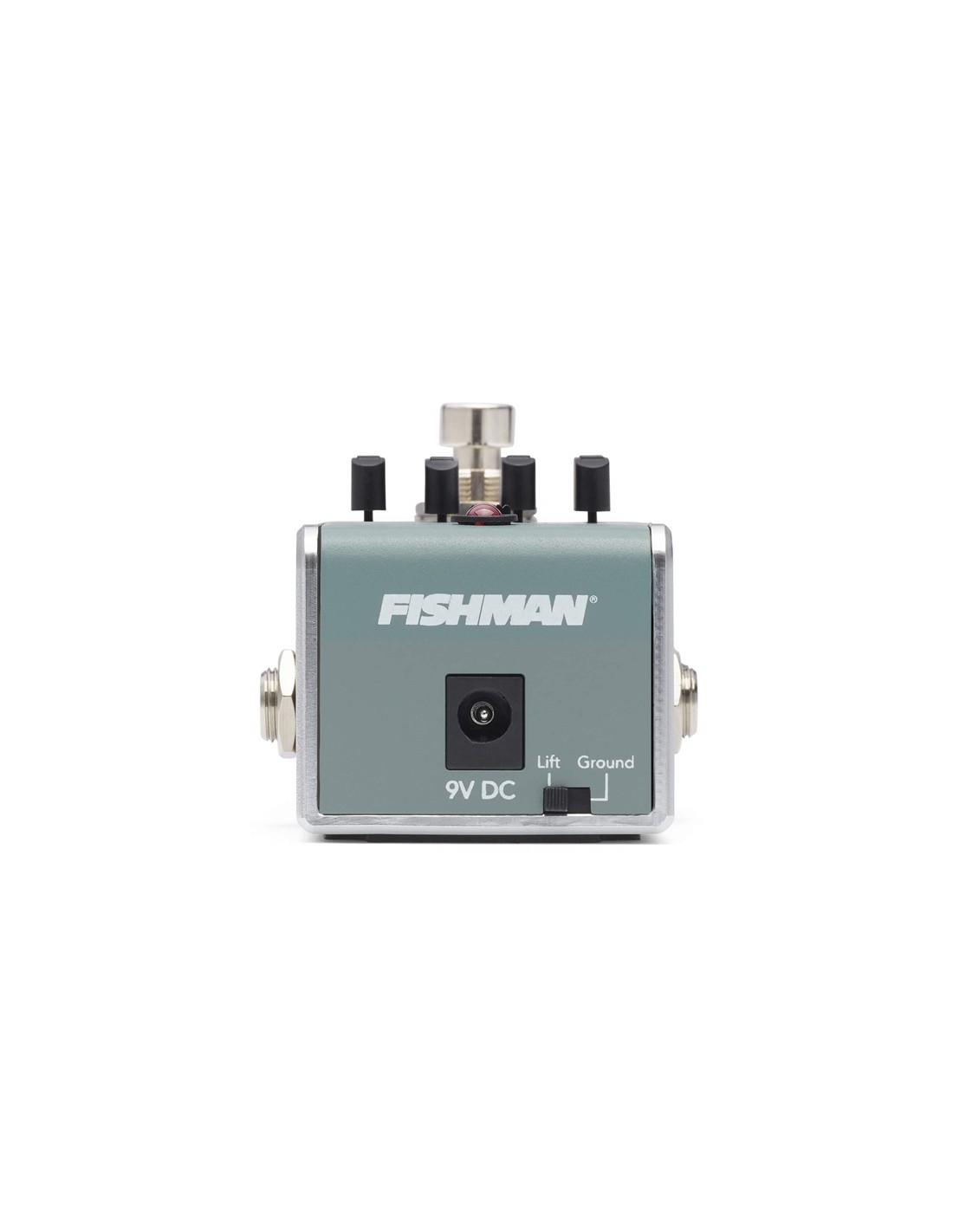

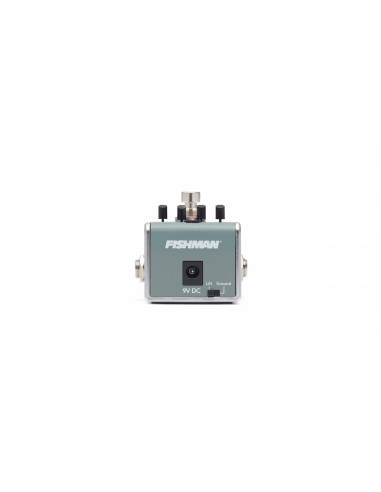

Power: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative

Analog signal: input impedance (tip): 10 MOhm - Input impedance (ring): 10 MOhm - )utput impedance (ABY, tip): 1 kOhm - Output impedance (ABY, ring): 1 kOhm - Output impedance (DI, tip-to-ring): 400 Ohm differential

Fishman model: PRO-AFX-DI2

Fishman AFX Minis are infused with nearly five decades of acoustic-focused design experience. We’ve helped millions of acoustic players achieve incredible sound with ready-to-use effects, and these pedals are no different—just plug them in to create new sonic textures without losing your instrument’s core sound.

We care about preserving the tone of your instrument. Electric guitar effects are designed to alter the electric tone and, when used on acoustic instruments, tend to muddy the sound. AFX Mini effects are optimized to match the resonances of amplified acoustic guitar, so you won’t get unexpected results when playing at higher volumes.

AFX acoustic effects are mixed parallel to the direct sound, meaning they are added alongside the tone, not on top of it. This lets you add amazing texture, rhythm, and spatiality without needlessly coloring or altering the sound of your precious instrument.
