BAIO Multi-Effect Pedal with Built-in IR

The BAIO (Box All In One) by Eko Guitars is the complete and portable multi-effect pedal , perfect for your guitar. Thanks to the nine types of integrated preamp , the eight Impulse Response and the included effects , you will have the possibility to completely manage your sound. Try it as a sound card with your PC or smartphone and use the BT to play over your backing tracks.

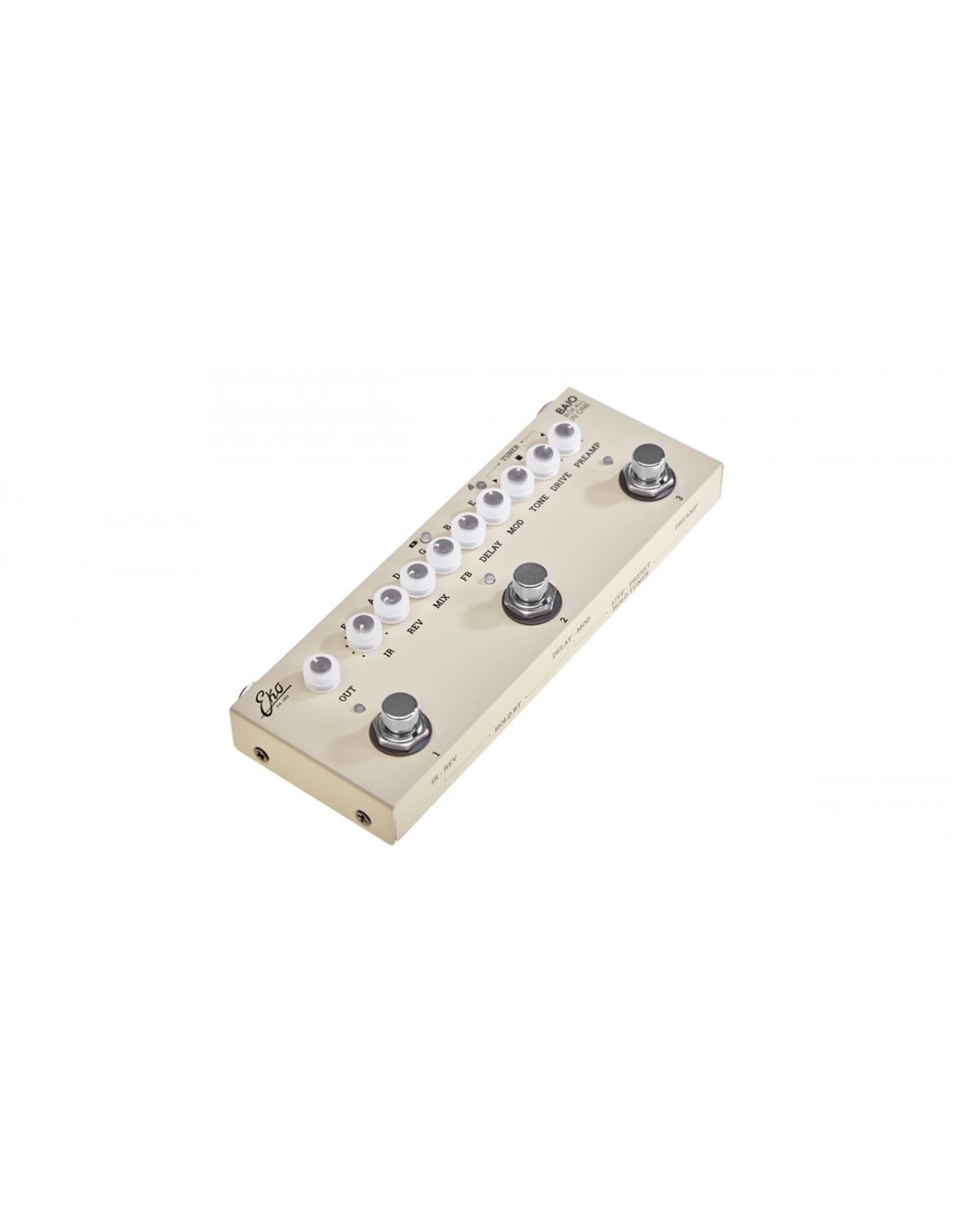

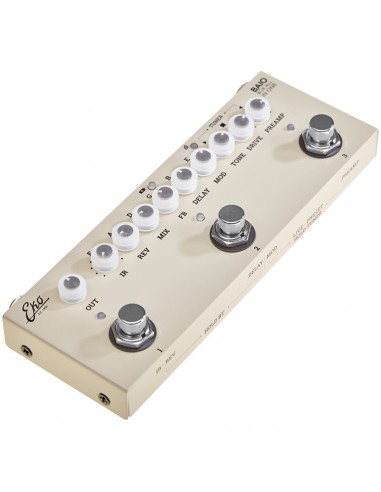

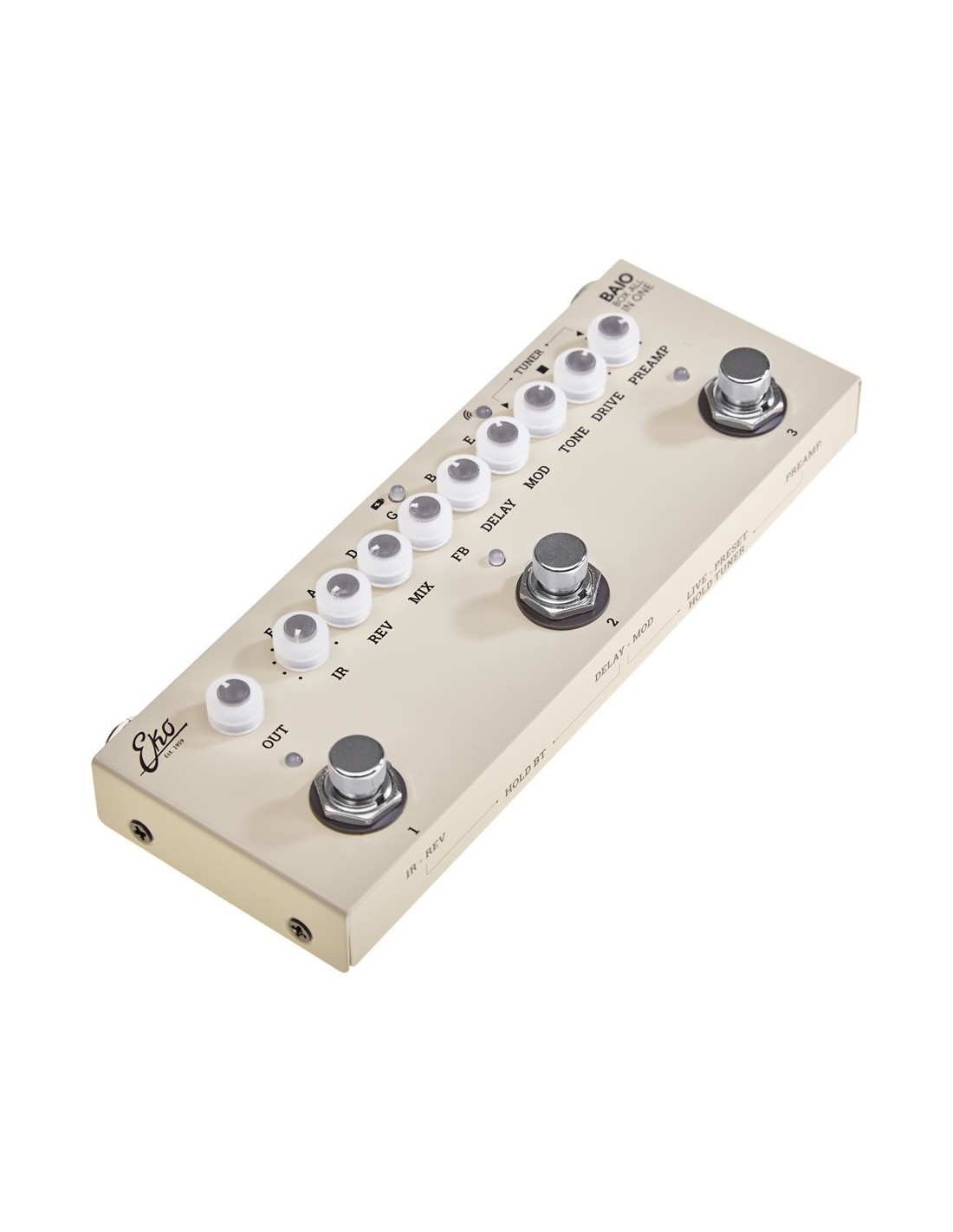

Thanks to its 16cm length, just 6cm width and 260g weight, BAIO is the all-in-one multi-effect system able to offer all the features and functions essential to the modern guitarist. Easy to transport and super resistant thanks to the metal chassis, it allows total management of your sound.

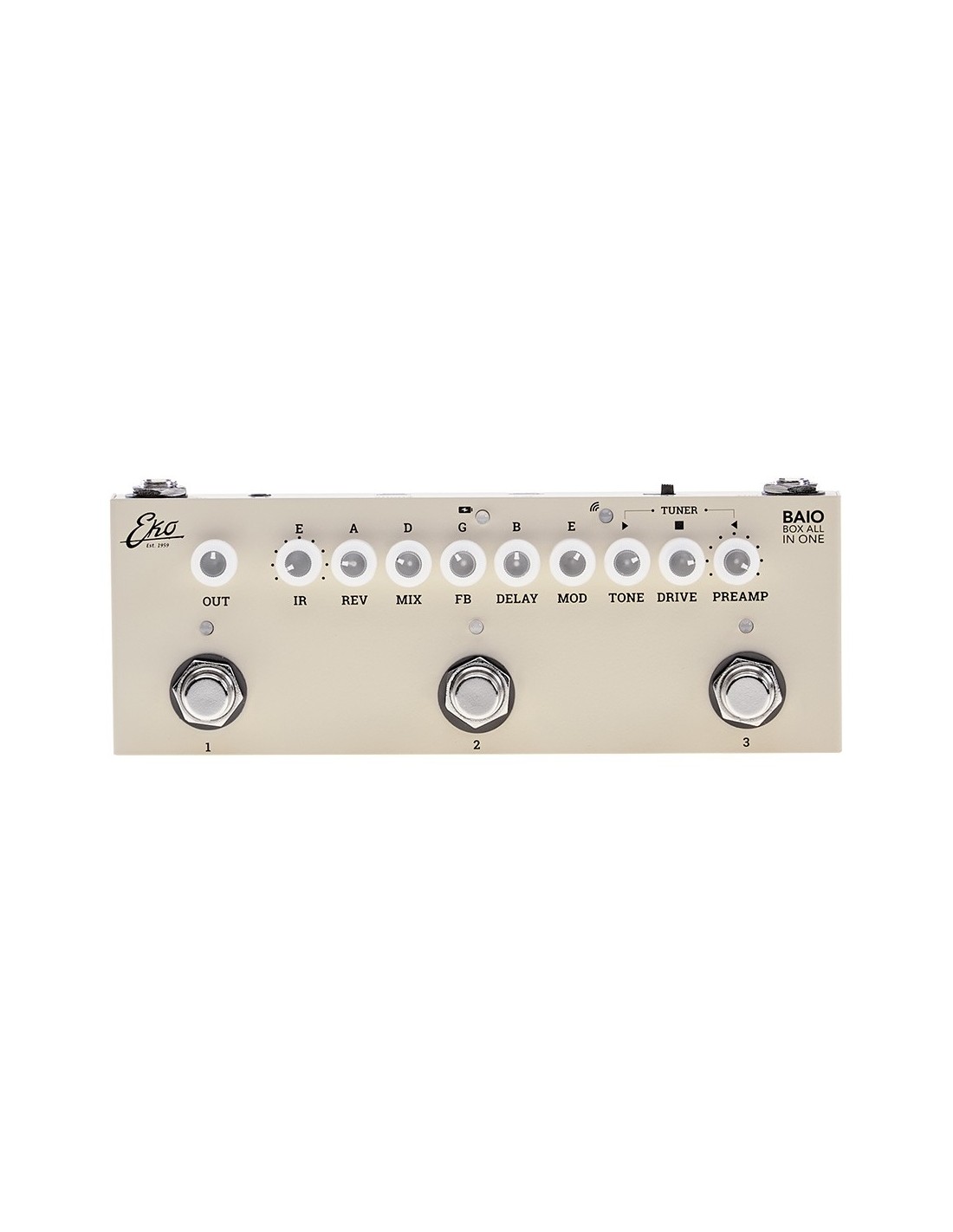

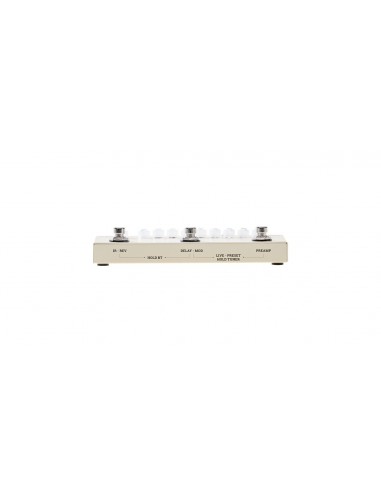

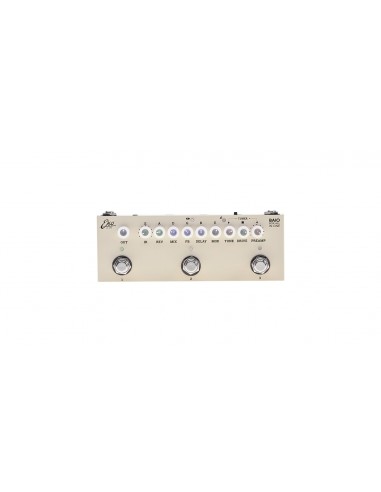

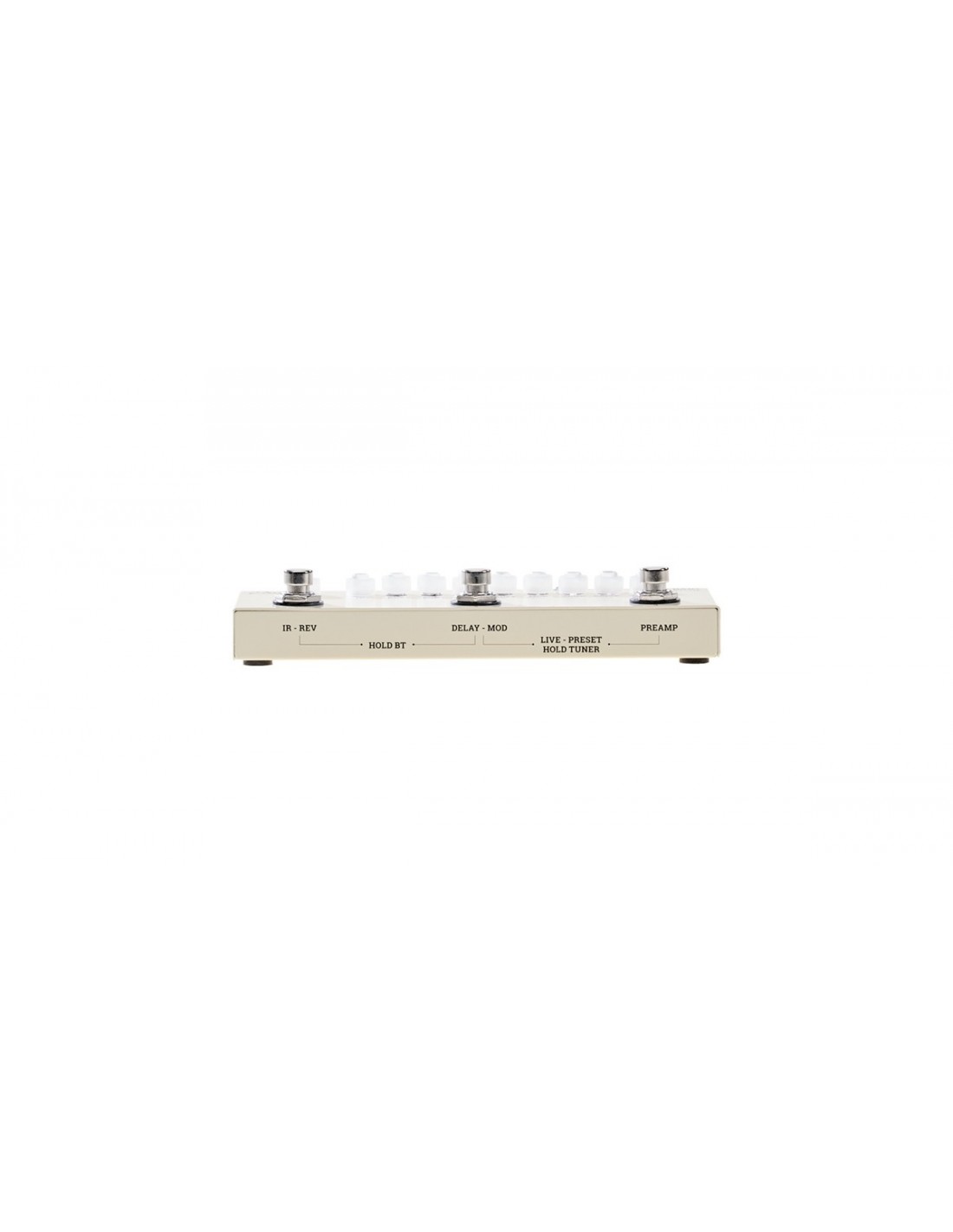

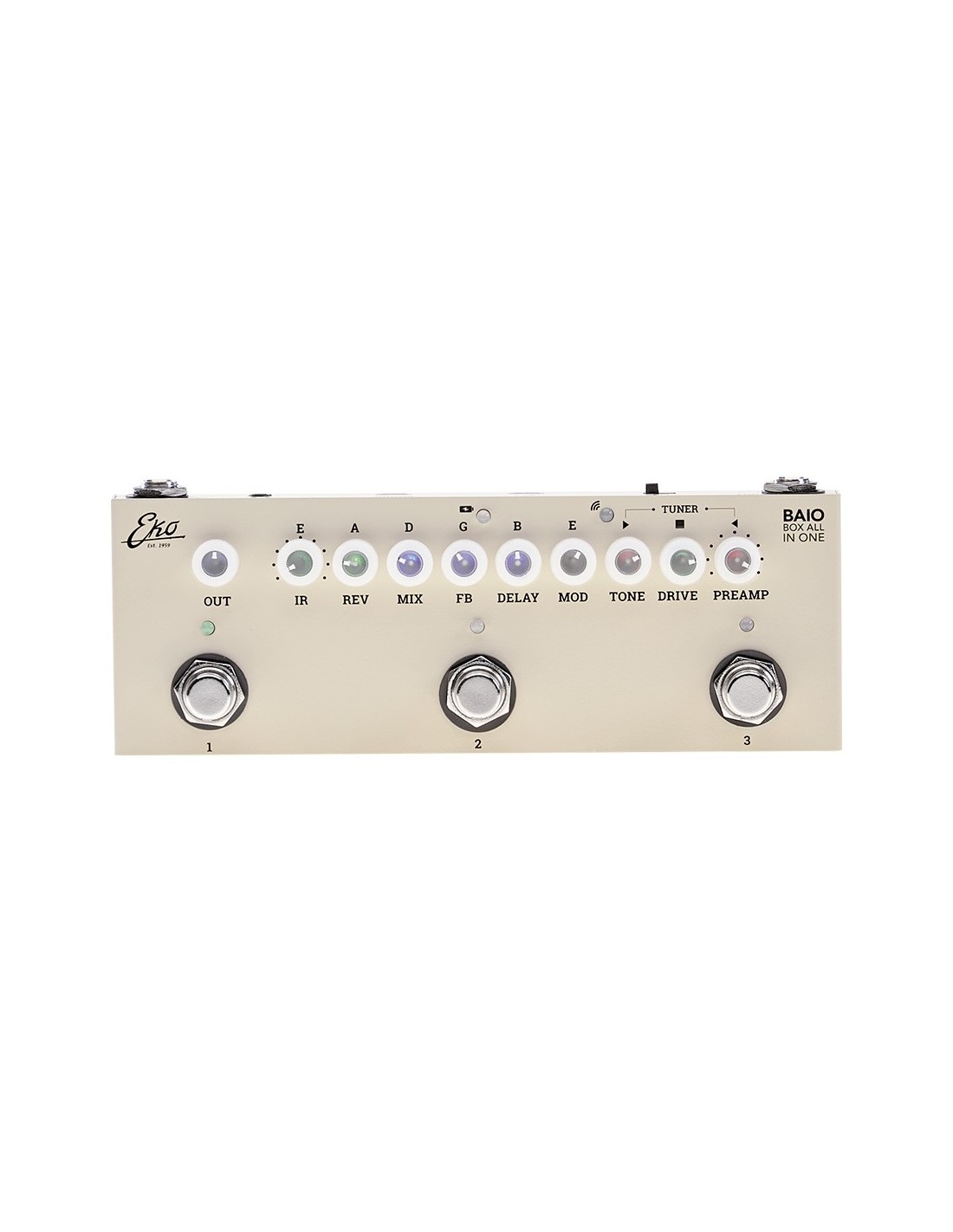

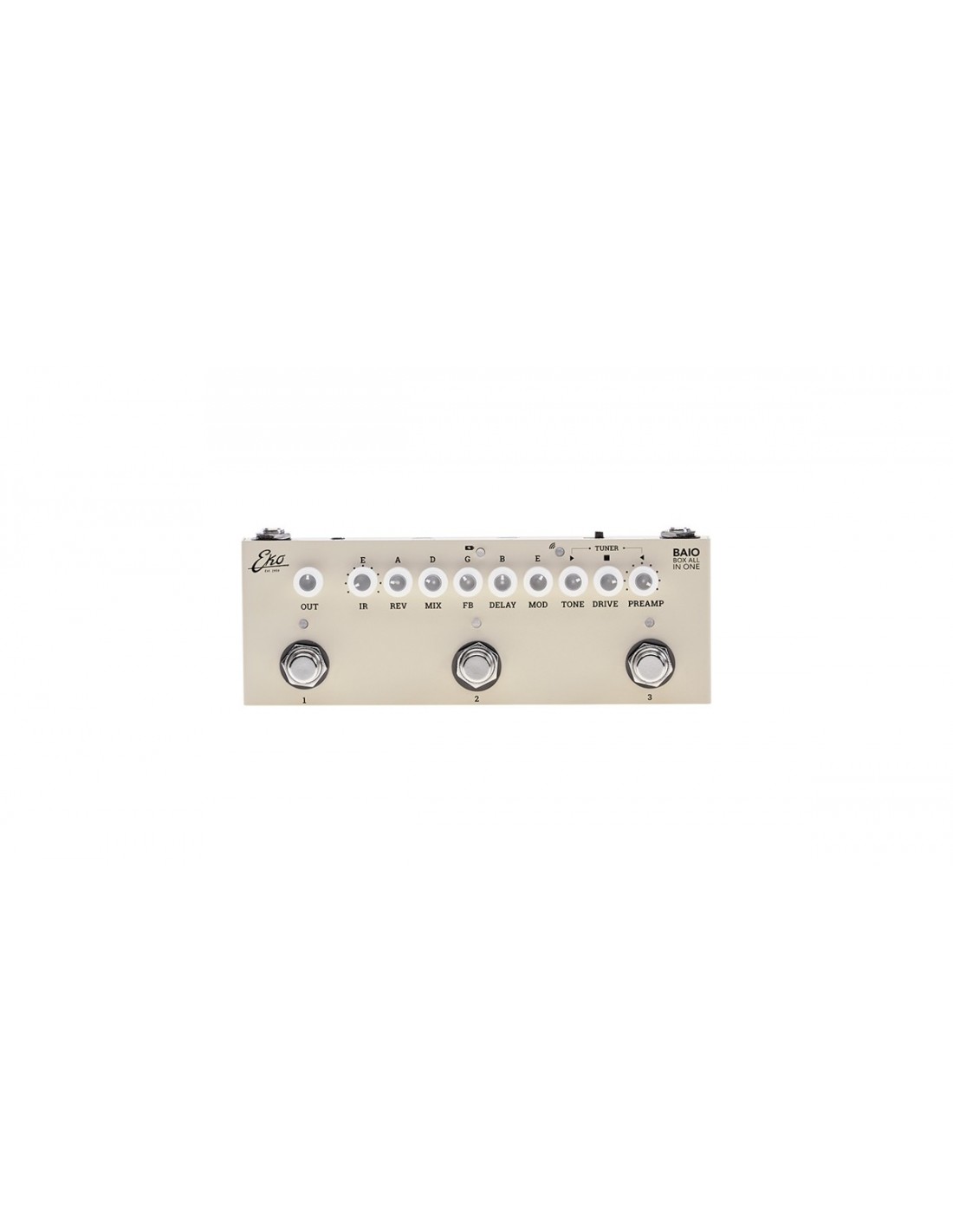

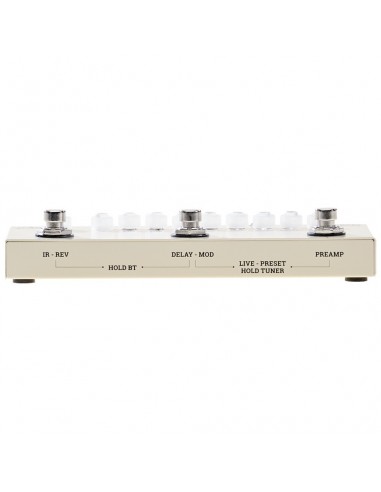

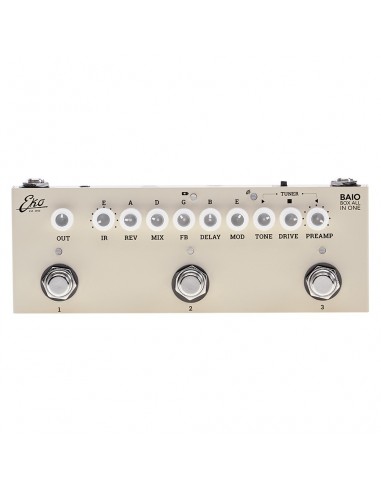

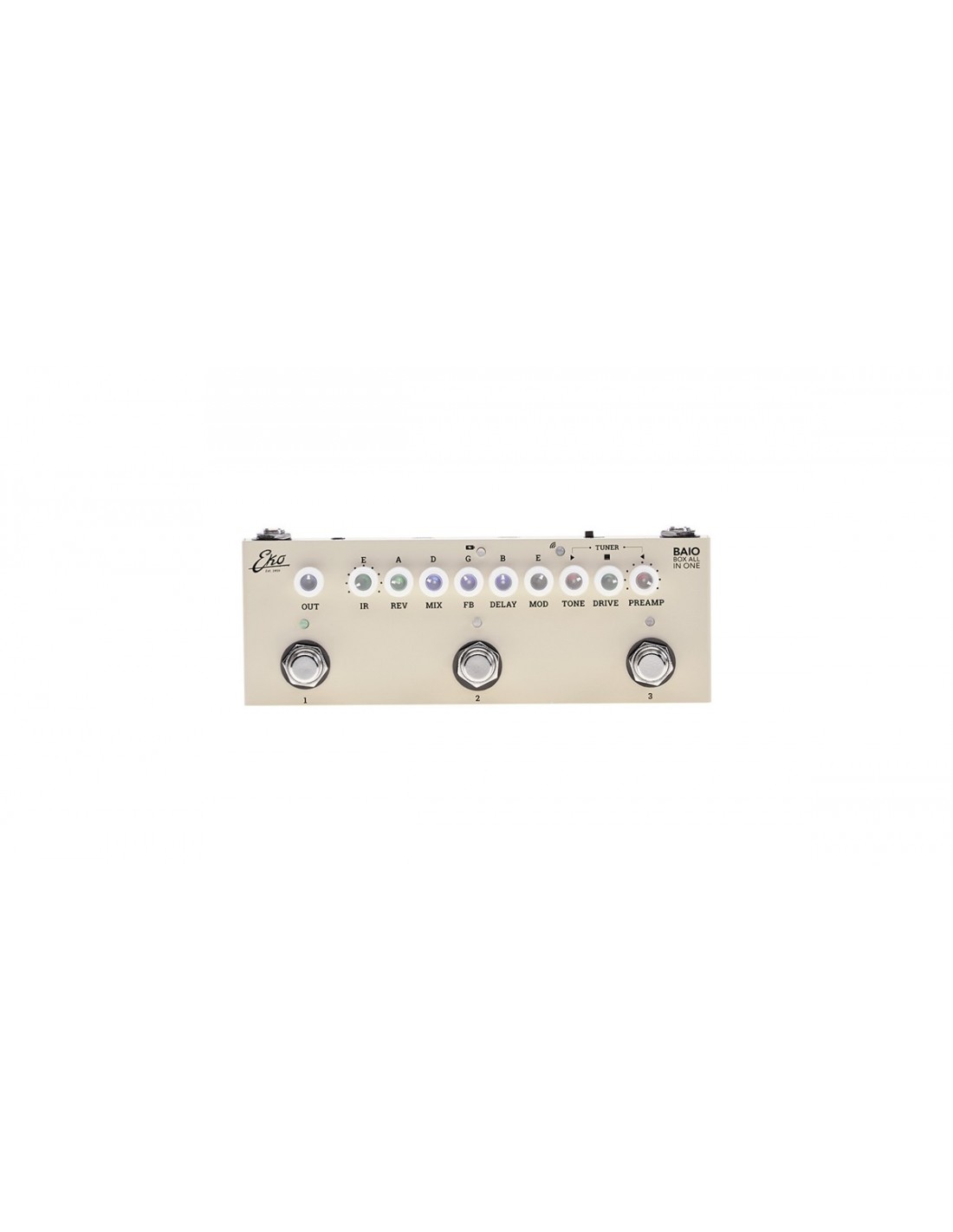

With nine selectable preamp types that can be controlled with the Tone and Drive knobs, you will have access to as many timbres that range from crystalline cleans to the heaviest distortions. The modulation section, accessible via the Mod control, allows you to add chorus and phaser; delay with relative management of time, repetitions, quantity and reverb effect, can be accessed respectively with the Delay, FB, Mix and Rev knobs. The IR knob allows you to select between eight Impulse Responses created specifically for BAIO by Massimo Varini , who has selected and adapted some of the best ChopTones brand IRs. From Blues to Metal, you will have the possibility of using a selection of amplifiers, cabinets, speakers and microphones specially combined to offer a realistic and convincing sound, both live and in the studio. With the Out control you can manage the output volume and via the three footswitches you can switch from Preset mode to change them, to Live mode that will allow you to separately manage IR/Rev, Delay/Mod and Preamp. Always with the footswitches, you can activate the Bluetooth which will allow you to play your favorite backing tracks via an external device or activate the integrated tuner, with which it is also possible to completely interrupt the output signal (mute).

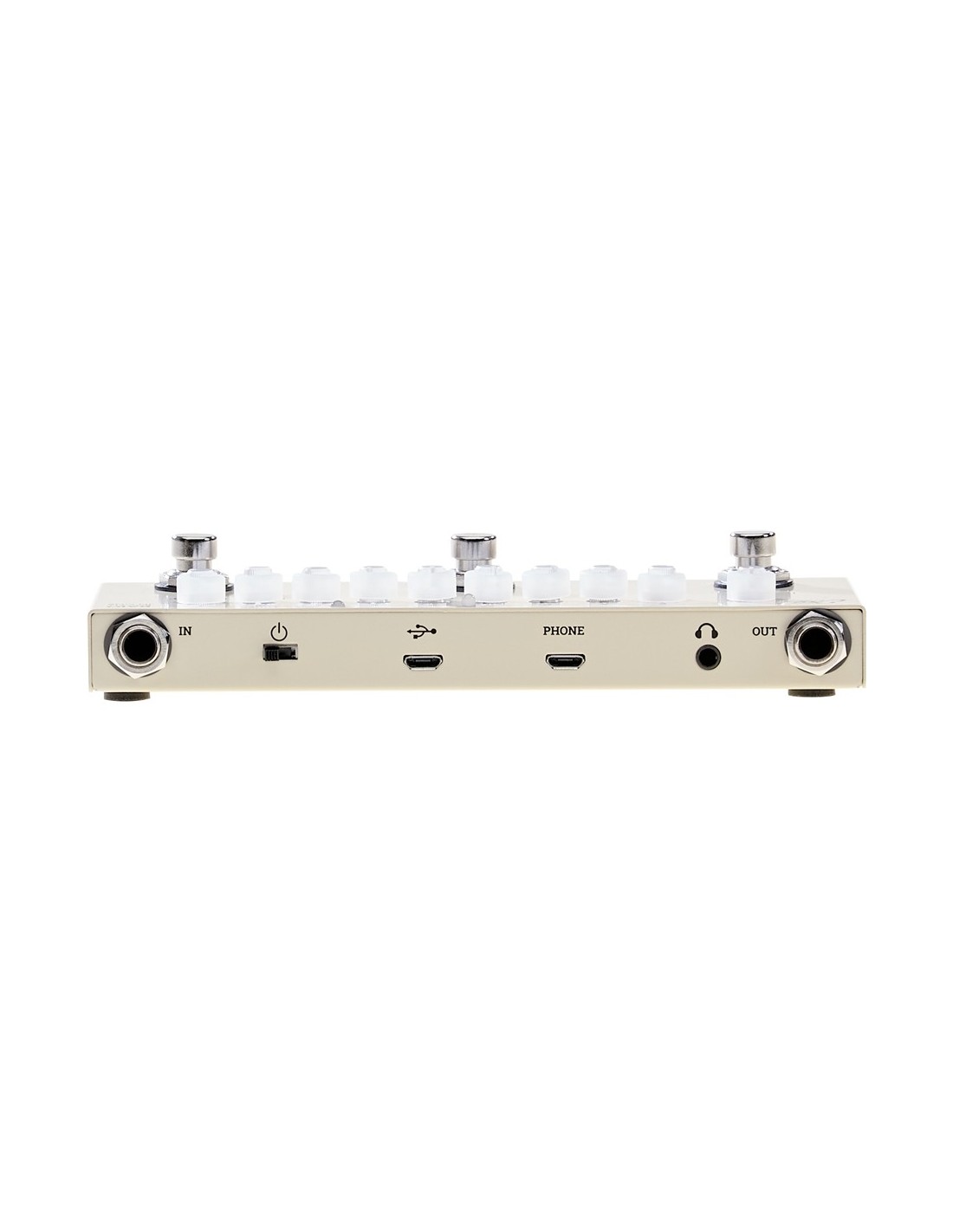

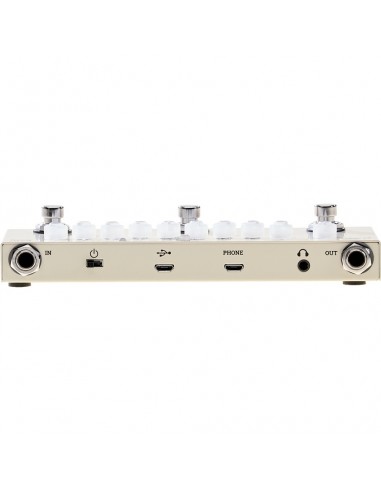

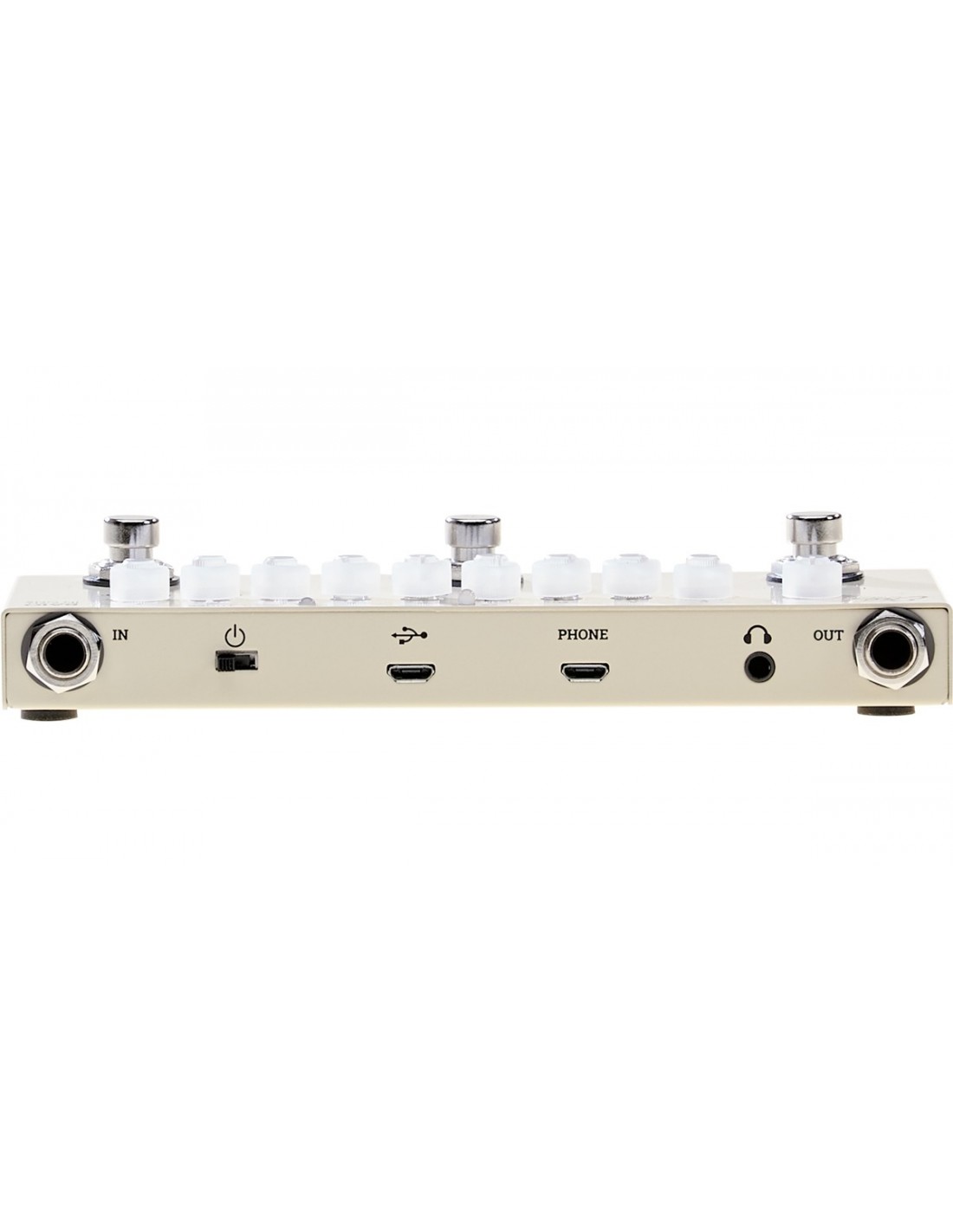

The rear panel features two standard jack terminals for input and output, the power switch, the USB socket for powering the pedal and charging the battery, the connection to the computer for use as a sound card and loading new IRs. With the Phone socket you can use the appropriate cable to connect your Smartphone and use BAIO as a sound card on your phone too. There is also a headphone output that will allow you to listen to the instrument signal and any Bluetooth playback at the same time.

MAIN FEATURES

• 9 types of preamp with tone and gain control;
• 8 IRs for as many amplifiers, chosen and adapted to the BAIO by Massimo Varini and made by ChopTones;
• 2 modulation effects (Chorus and Phase Shift);
• 1 Reverb;
• 1 Delay (Tape) adjustable in quantity, delay time and feedback (number of repetitions);
• Live or Preset function (3 storable presets);
• Built-in tuner with mute function.

ADDITIONAL FUNCTIONS

• Built-in rechargeable batteries, USB charging, the pedal can work while charging;
• It works as a sound card when connected via USB to a computer;
• When connected to a smartphone it works as a sound card;
• Bluetooth function (input) to play backing tracks from any BT-enabled device;
• Ability to load additional IRs via software.

SPECIFICATIONS

Input Terminal: Standard TS (Mono) 1/4" Jack

Output Terminal: Standard TS (Mono) 1/4" Jack

Sampling rate: 48kHz

Bit Depth: 24 bit

Battery capacity: 600mAh

Battery life: 6h continuous use (approximately)

Dimensions: Length 162mm, width 61mm, depth 23mm

Weight: 260g
