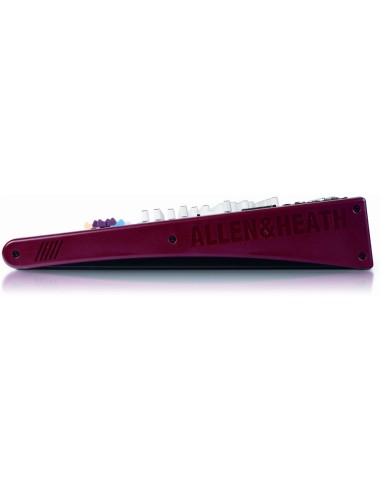

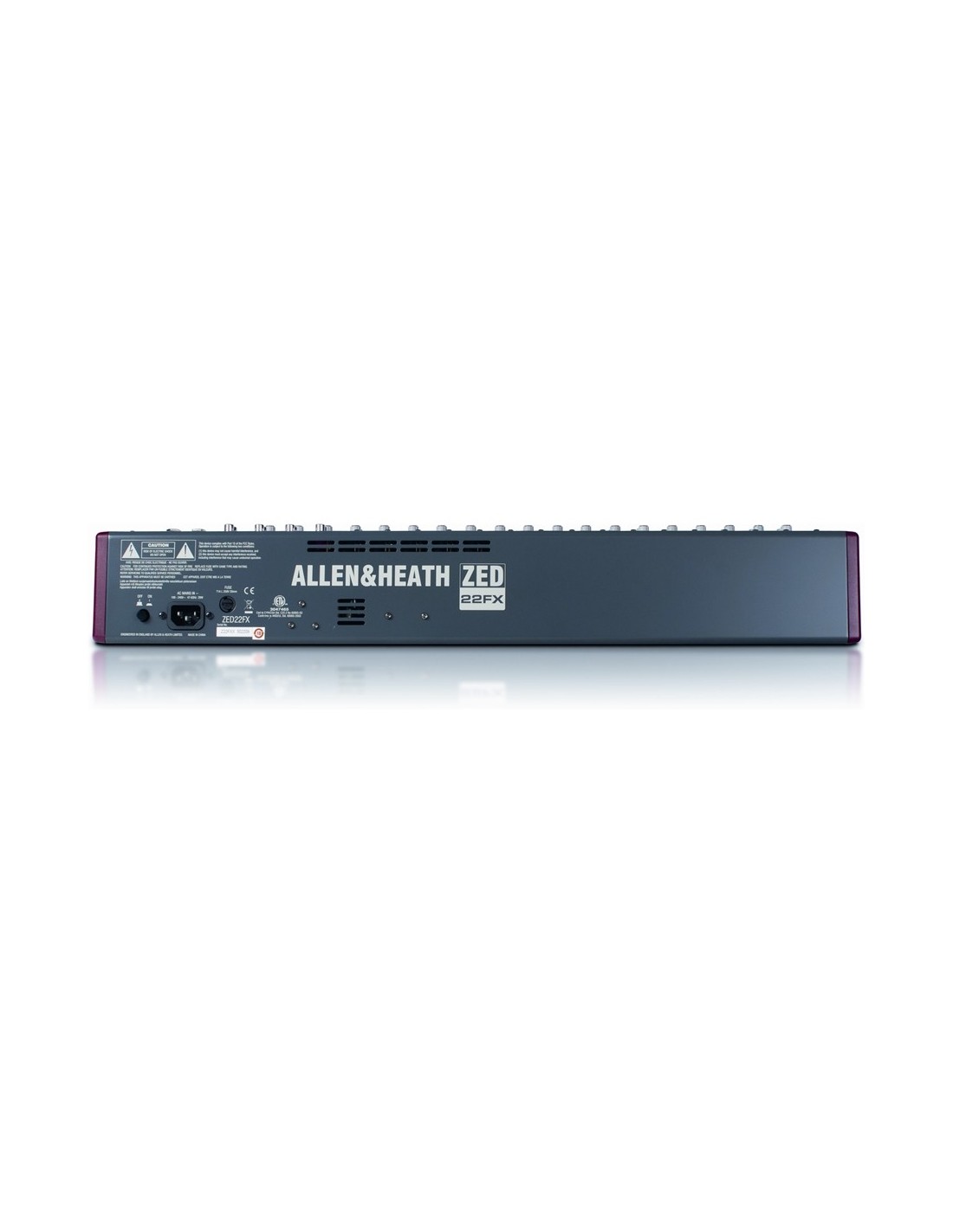

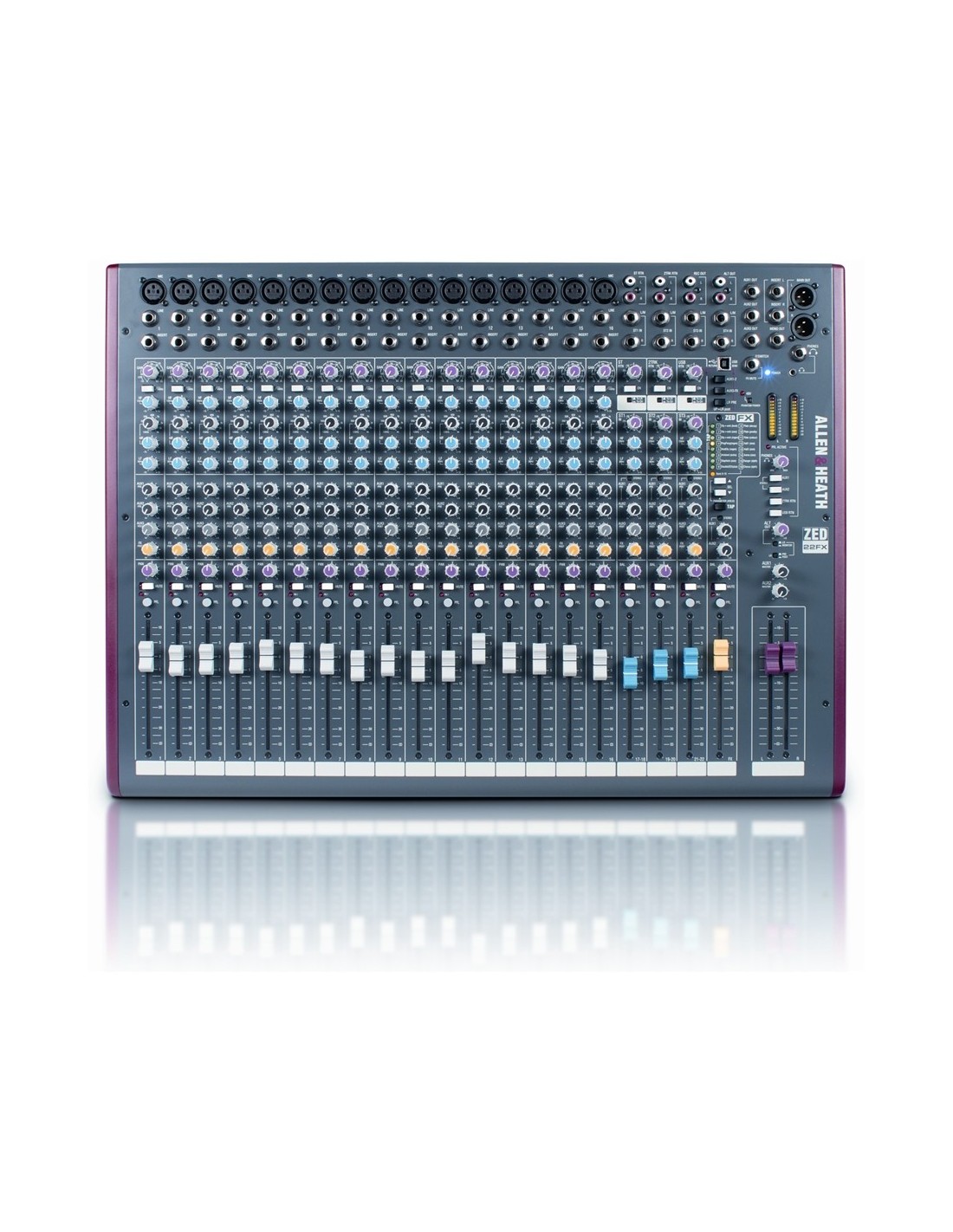

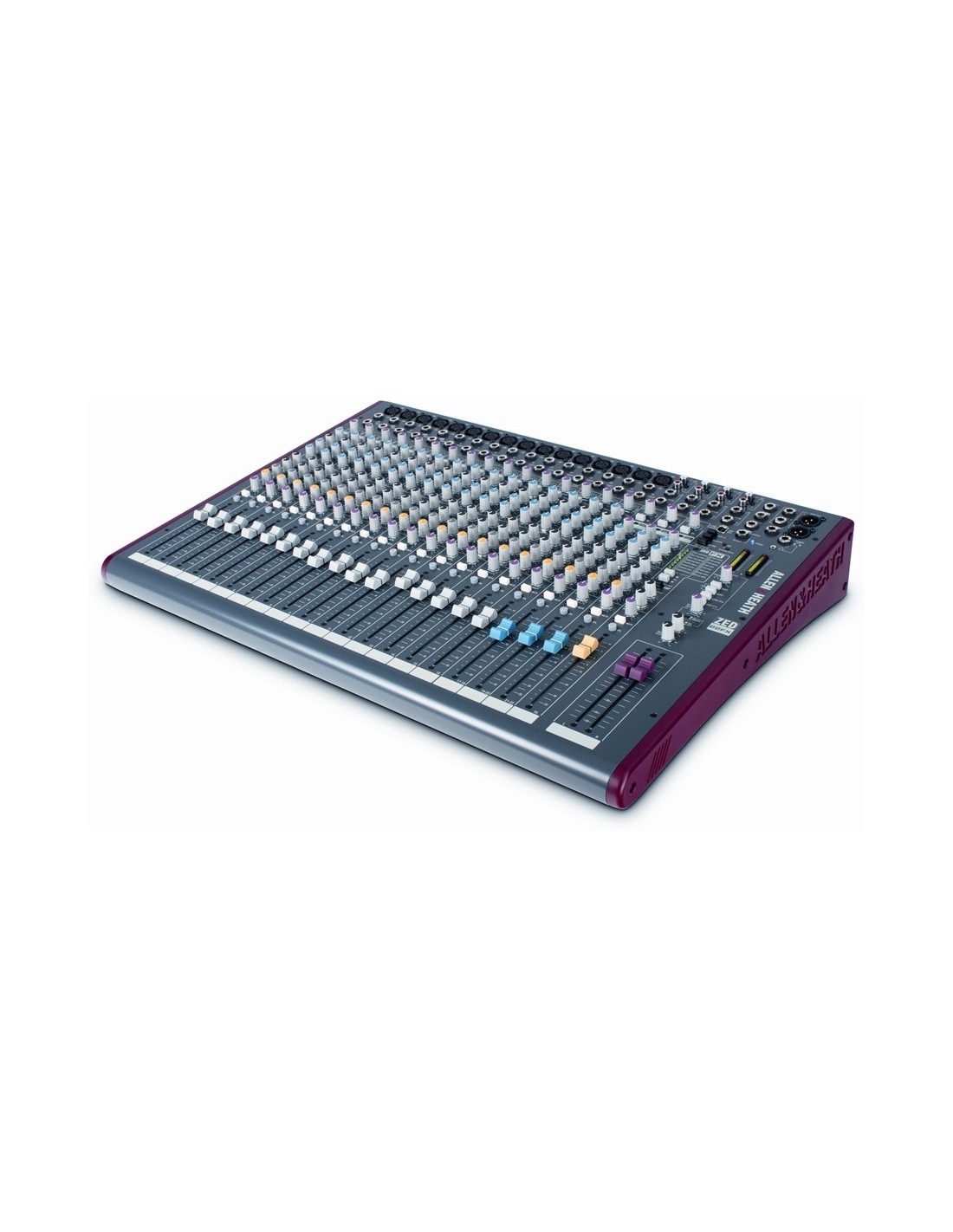

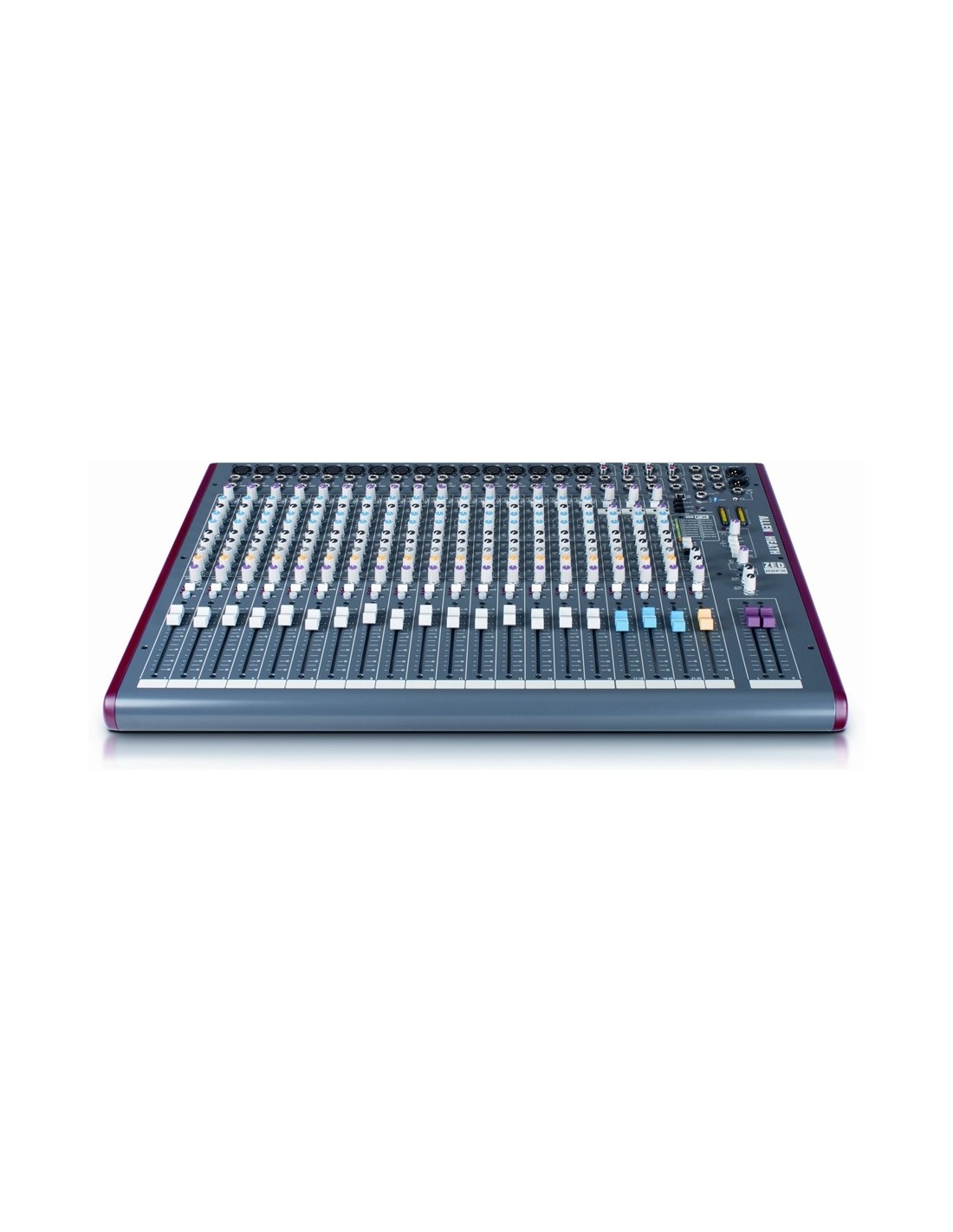

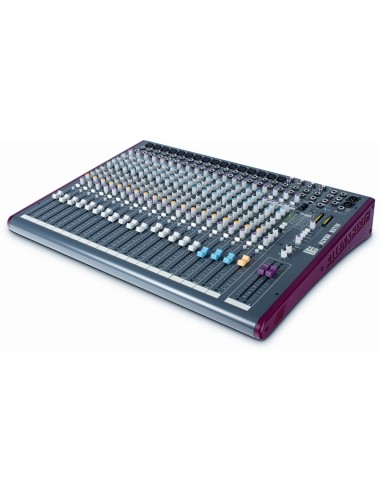

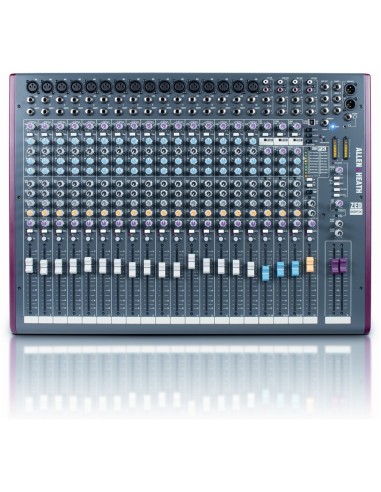

The ZED-22FX offers 16 fully-featured mono channels and 4 stereo channels to meet the market demand for compact mixers with a good channel count. Like the other models in the ZED range, the ZED-22FX also incorporates USB connectivity, with two-track send and return, for playback, recording and effects direct from a computer. The 16 mono channels use Allen & Heath's acclaimed ' DuoPre ' dual stage preamp , MusiQ 3-band EQ, semi-parametric mid and 100mm faders . The stereo inputs have 2-band EQ and inputs for an extra source. There are 4 aux sends accessible from both mono and stereo channels. All in a compact, rack-mountable format. The ZED-22FX also features an onboard effects processor with Tap Tempo Delay , 24-bit/48kHz conversion and a suite of 16 effects derived directly from the Allen & Heath iLive systems. Included with the ZED-22FX is Cakewalk's SONAR X1 LE software suite, which gives the user a variety of useful features for live mixing, live recording, studio recording or studio mixing. The combination of ZED and SONAR allows you to record a stereo mix, record individual tracks to make a song, or insert a SONAR plug-in effect into the mix. ZED mixers are built to professional standards, with all knobs fixed to the front panel for maximum robustness, and high quality components such as XLR and Neutrik jack connectors.
TECHNICAL FEATURES
16 ch mono
16 internal FX (time-delay)
Neutrik XLR Connectors
1/4" Neutrik Connectors
Channel Inserts
DuoPre (preamplifier stage)
3-band EQ with MusicQ
4 aux
Illuminated mute button
Illuminated PFL and peak indicator
100mm ALPS Faders
4 ch stereo with 2 band EQ
Stereo returns
Playback out
Level control on all inputs
Meter
Mono/stereo function on aux 1 and 2
Monitor out section
Configurable USB stereo audio in/out
Cakewalk SONAR X1 LE :
Powered by SONAR X1
32 audio tracks
64 MIDI tracks
8 simultaneous In/Out
24-bit/96 kHz resolution
24 simultaneous effects
8 simultaneous virtual instruments
