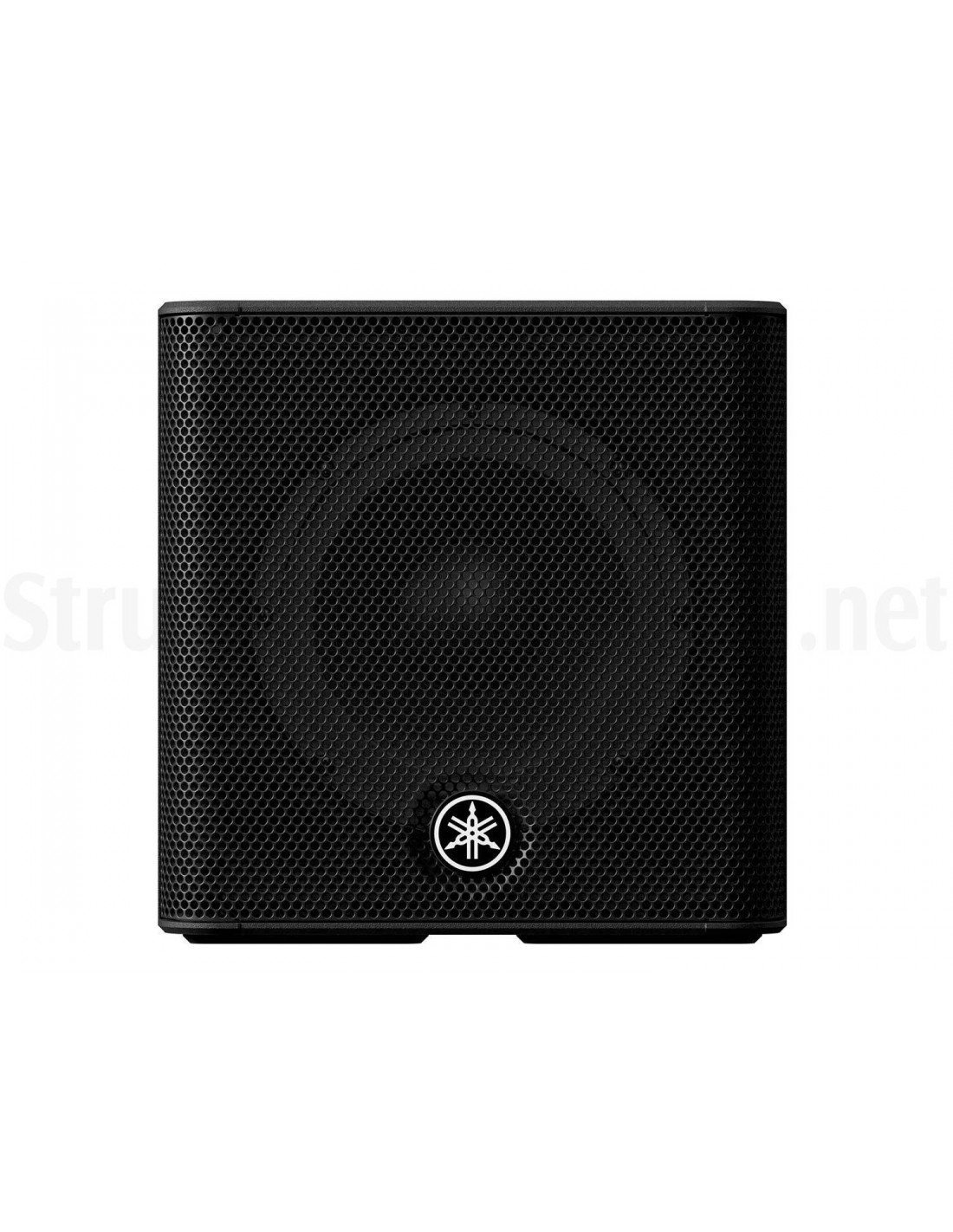

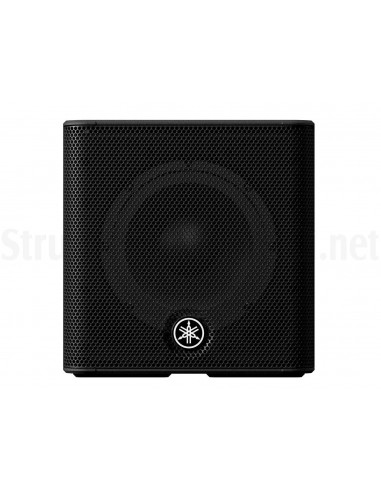

YAMAHA STAGEPAS 200 Portable PA System

PORTABLE PA SYSTEM WITH 5 CHANNEL DIGITAL MIXER 180W

With stunning high-quality sound and mixing capabilities far beyond what you’d expect from its minimalist design, the Stagepas 200 is a premium portable PA system that punches well above its weight class. With quick, intuitive operation of crucial live sound features and superb overall performance, your audience will be blown away by your sound and probably baffled by your tiny setup. The Stagepas 200 is available in two models: one with a high-capacity lithium-ion battery, the other compatible with optional batteries, giving you the flexibility to inspire performers and audiences in virtually any setting you choose, from 1-3-artist street performances, to events, parties and speeches.
Featuring a high-quality coaxial transducer design, the Stagepas 200 is capable of delivering best-in-class sound pressure, precise phase response, and very natural high-frequency dispersion. Adopting some of the same expertise used in our high-end professional audio equipment, this powerful yet minimalist powerhouse will amaze your audience with the full dynamic range and response of your performance.

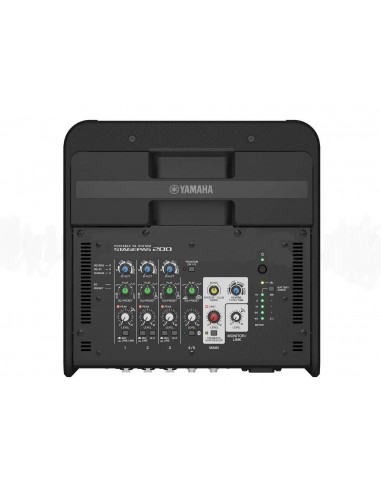

The Stagepas 200 places a strong emphasis on its “all-in-one” designation, offering all the connectivity, performance features and mixing capabilities you’d ever need for small-scale duo or trio performances, all housed in a compact 300mm cube-style cabinet. Featuring a remote-controlled digital mixer for up to 5 channels, 3 mic preamps and a full range of convenience features you’ll be grateful to have at your disposal, the Stagepas 200 is unrivalled in the compact all-in-one PA market.
The Stagepas 200’s simple, intuitive operation makes fine-tuning your ideal sound a painless and even enjoyable process. Each channel features a 1-knob EQ/preset and SPX digital effects, along with the master output’s MODE compressor, allowing for quick but powerful sound adjustments, while channels 2-3 feature built-in microphone simulators that can also add instant authenticity to acoustic guitars.
The Stagepas 200 is packed with adaptive features that will help ease your anxiety about your sound and allow you to focus on performing your absolute best.
The built-in Priority Ducker will automatically attenuate background music or secondary signals when input from a primary microphone or specific sound source is detected. Additionally, the intelligent Feedback Suppression function will automatically eliminate unpleasant feedback that can be caused when a microphone picks up sound from a speaker, ensuring a more comfortable sound experience for both you and your audience.
The Stagepas Controller app, for iOS and Android devices, gives you real-time remote control of both volume and EQ. The app also allows for finer adjustment details than the head unit interface such as EQ, Reverb, Compressor, Mic Simulators, Ducker, etc. to maximize the capabilities of your Stagepas 200. You can save these settings into “scenes” stored in the app to recall at any time for consistent sound and reduced setup time.
Compatible with a large capacity lithium-ion battery that allows up to 10 hours of continuous operation, the Stagepas 200 reliably delivers excellent performance even in remote locations where no power source is available. The BTR-STP200 battery is supplied with the Stagepas 200BTR. It is also available separately.
Bluetooth functionality enables wireless connection for easy audio playback via smartphones and tablets. It also allows the use of the dedicated Stagepas Controller app for mixer control and adjustment.
The rubber mount on the base of the cabinet allows the unit to be tilted at a 30 or 60 degree angle to suit the chosen environment or application. This allows the Stagepas 200 to be positioned facing the audience as a fill speaker or facing the performers when used as a floor monitor.
The bottom of the cabinet houses a 35mm diameter pole mounting socket, allowing the Stagepas 200 to be mounted on a speaker stand or used in an installation with a subwoofer using a spacer asta .
The optional dedicated Case-STP200 carrying case features wheels and large-capacity pockets for convenient transportation to any location safely and easily.
Characteristics

180W class D amplifier (HF: 30W + LF: 150W)
High quality 1.4" HF + 8" LF coaxial compression driver
5-channel digital mixer (3 mono mic/line + 1 stereo line)
Main Output Multiband Compressor "Mode"
1-knob EQ/preset for each channel
High quality SPX digital reverb (4 programs, parameter control), delay, chorus
Hi-Z input
Equipped with link-out/monitor out
The supplied rubber mount allows for 30 or 60 degree tilt
Compatible with audio streaming via Bluetooth
It can be controlled remotely via an iOS or Android device using the dedicated Stagepas Controller app
Compatible with optional BTR-STP200 battery
Optional Case-STP200 carrying case for convenient transportation
Dimensions: 300 x 308 x 301mm
Weight: 12kg
