The Shure A95U impedance adapter optimizes the performance of your dynamic microphones. You can adapt high-impedance microphones to low-impedance inputs and vice versa. A compact alternative to traditional DI , it allows you to extend the cable run without level losses or interference in the frequency spectrum of the audio signal.

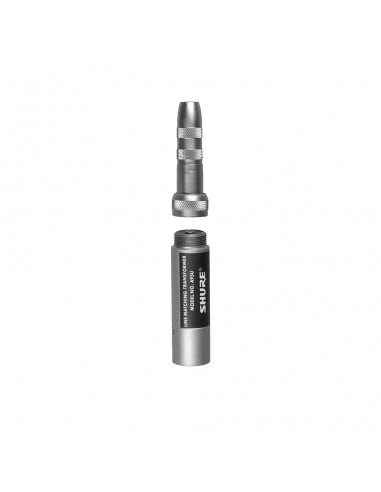

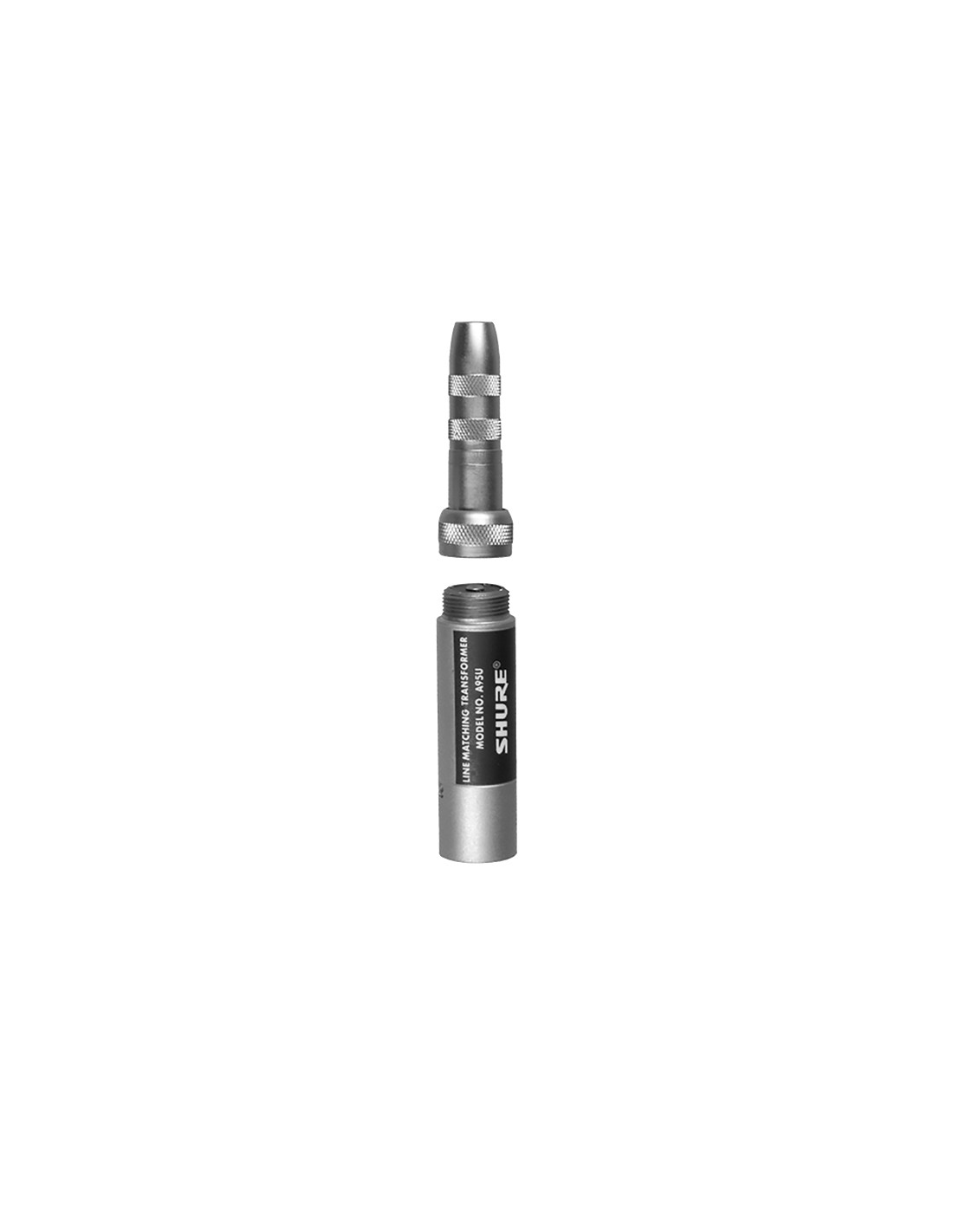

Reversible impedance adapter for microphones, fully magnetically shielded, that allows you to adapt high impedance microphones to low impedance inputs and vice versa. The Shure A95U comes as an adapter with a 3-pin male XLR connector on the low impedance end and on the other end, for the high impedance end, an Amphenol MC1M connector to which you can screw the female jack or the standard ¼” male jack supplied. The A95U is factory-set with the low impedance output set to work with microphones or inputs between 75 and 300 Ohm. To work with microphones or inputs between 19 and 75 Ohm, simply modify the internal solder connections of the pins on the XLR connector as indicated in the manual.
You can use this transformer to extend the efficiency of audio transmission when using very long cables to connect high- or low-impedance microphones. If you use it with high-impedance microphones, you will need to limit the length of the cable from the microphone to the Shure A95U to a maximum of 15 feet, while the cable from the adapter output to the low-impedance input of your listening system (mixer, powered speaker, or other) will have virtually no limit.
With the Shure A95U transformer you prevent the degradation of your microphone's audio performance. You will maintain a signal consistent with the transduced one, respectful of high frequencies, signal level and you will increase the rejection against unwanted noise, hum and other interference that can occur on long cable runs.
The Shure A95U is a great alternative to many of the classic “box” microphone DIs, as it is extremely compact, like an XLR/Jack adapter. In addition to traditional applications, this accessory will also be very useful for those who use vintage microphones with modern audio equipment and for those who need to connect consumer performance microphones to professional systems.
Shure A95U Specifications
Dimensions: diameter 19mm, length 89mm with adapter
Frequency response: 20Hz to 20kHz
